acrylic co2 laser cutting and engraving machine 9060 60w

Specifications

acrylic and other hard material laser cutting and engraving machine 9060 60w

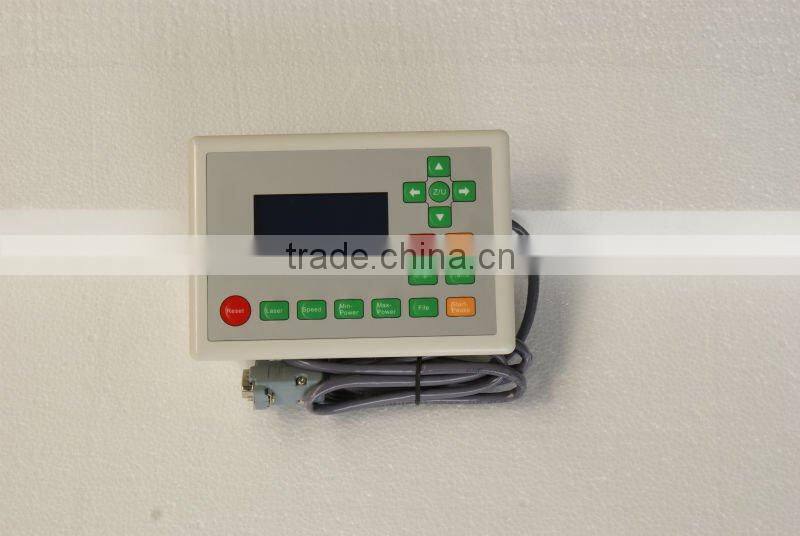

RDL320 english offline software
blades worktable

acrylic and other hard material laser cutting and engraving machine 9060 60w



acrylic and other hard material laser cutting and engraving machine 1290 80w RDL320 english offline software, blades worktable, red pointer,chiller cw3000,plywood box.
acrylic and other hard material laser cutting and engraving machine 9060 80w RDL320 english offline software, blades worktable, red pointer,chiller cw3000,plywood box.	acrylic and other hard material laser cutting and engraving machine 9060 60w RDL320 english offline software, blades worktable, red pointer,chiller cw3000,plywood box.
acrylic and other hard material laser cutting and engraving machine 5070 80w RDL320 english offline software, blades worktable, red pointer,chiller cw3000,plywood box.	acrylic and other hard material laser cutting and engraving machine 5070 60w RDL320 english offline software, blades worktable, red pointer,chiller cw3000,plywood box.







Applicable materials

Leather, cloth, wool, fur, acrylic, Plexiglas, wooden board, plastic, resin and other non-materials.



Applicable industry

:processing industries of lager-scale engraving and cutting, such as garment, leather, clipping, cutting of template, package and printing, advertisement decoration, building upholster, art gift, computer embroidery, paper prod ct, acylic product ,middle density board ect. non-metal sheet precision cutting and other industries.

Technical parameters

Laser power :	80w
Laser type:	Hermetic CO2 glass tube
Power supply:	AC220 50 HZ/AC110 50 HZ
Working area:	900*600mm
Max moving speed:	1800mm/s
Worktable:	Honey comb worktable/aluminium knife/steel nail(optional)
Locating precision:	<0.01mm
Min shaping character:	Character:3x3mm,letter:2x2mm
Operating temperature:	5°C-35°C
Resolution ratio:	4500dpi
Control configuration:	DSP
Data transfer interface:	USB(offline)
System environment:	WINDOWS 2000/WINDOWS XP
Cooling way:	Water cooling and protection system
Graphic format supported:	The file which CorelDraw, Photoshop, AutoCAD can identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG, DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG, SVGZ,PCT,FMV,GEM,CMX)
Compatible software	CorelDraw,AutoCAD
Cutting thickness	0-30mm(depends on different material)
Color separation	Separation of cutting up to 256 colors
Sloping engraving	Yes, slope can be designed discretionarily
Cuts off the water supply the protection	yes
Machine dimention	1950x1290x1070(mm)
weight	300kg
Packing Plywood case	2130*1470*1350mm  500kg
Optional parts	High-grade cooling system imported focus lens double-head  cylinder rotary attachment irregular rotary attachment servo motor/red dot

  company  profile

Shenzhen Reliable Electromechanical Technology Company  is devoted to R & D, production, sales and service of CNC engraving machine,CNC cutting machine, co2 laser stampengraving  machine,  CO2 laser engraving machines, CO2 laser cutting machine,die cutting machine,CO2  laser marking machine, YAG marking machine, YAG cutting machine,  fiber marking machine, fiber cutting machine,plasma  cutting machine and their accessories. responsible production  team,professional sales and after sale service team. Our company have  excellent  R & D team,  these teams ensure our products of high technology,  reliable quality,  reasonable  prices, and enable our customers to be satisfied.this bring  us  big  market  in both  domestic and overseas. Our company sware to be one Reliable supplier,to supply Reliable  product and Reliable service.

Our staff are required to beloyal to customers,loyal to familyand loyal to society.This make  our company  famous in machinery field, and our staff popular with  customers  and  family  and society.

Warmly welcome all friends to visit us and start cooperation!
