Help CenterAcrylic Co2 Laser Cutting and Engraving Machine 5070 80w
Related Products
-
13590 120w Acrylic and Other Hard Material Laser Cutting and Engraving Machine 5070 60wUS$ 2,700 - 3,200MOQ: 10 Pieces -
Cloth and Other Soft Material Laser Cutting and Engraving Machine 1290 80wUS$ 3,000 - 4,000MOQ: 1 Set
-
Cloth and Other Soft Material Laser Cutting and Engraving Machine 9060 80wUS$ 3,000 - 4,000MOQ: 1 Set
-
Cloth and Other Soft Material Laser Cutting and Engraving Machine 9060 60wUS$ 3,000 - 3,500MOQ: 1 Set
-
Cloth Laser Cutting and Engraving Machine 5070 80wUS$ 3,000 - 3,500MOQ: 1 Set
Specifications
acrylic and other hard material laser cutting and engraving machine 5070 80wRDL320 english offline software
blades worktable
acrylic and other hard material laser cutting and engraving machine 5070 80w
Applicable materials
Leather, cloth, wool, fur, acrylic, Plexiglas, wooden board, plastic, resin and other non-materials.
Applicable industry
:processing industries of lager-scale engraving and cutting, such as garment, leather, clipping, cutting of template, package and printing, advertisement decoration, building upholster, art gift, computer embroidery, paper prod ct, acylic product ,middle density board ect. non-metal sheet precision cutting and other industries.
Technical parameters
Laser power : | 80w |

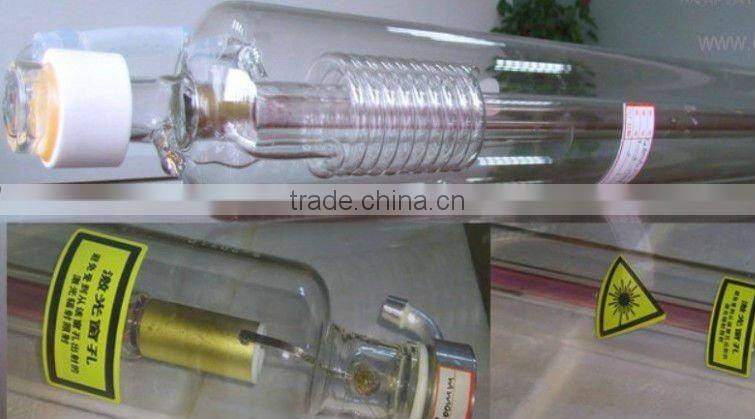

Laser type: | Hermetic CO2 glass tube |
Power supply: | AC220 50 HZ/AC110 50 HZ |
Working area: | 900*600mm |
Max moving speed: | 1800mm/s |
Worktable: | Honey comb worktable/aluminium knife/steel nail(optional) |
Locating precision: | <0.01mm |
Min shaping character: | Character:3x3mm,letter:2x2mm |
Operating temperature: | 5°C-35°C |
Resolution ratio: | 4500dpi |
Control configuration: | DSP |
Data transfer interface: | USB(offline) |
System environment: | WINDOWS 2000/WINDOWS XP |
Cooling way: | Water cooling and protection system |
Graphic format supported: | The file which CorelDraw, Photoshop, AutoCAD can identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG, DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG, SVGZ,PCT,FMV,GEM,CMX) |
Compatible software | CorelDraw,AutoCAD |
Cutting thickness | 0-30mm(depends on different material) |
Color separation | Separation of cutting up to 256 colors |
Sloping engraving | Yes, slope can be designed discretionarily |
Cuts off the water supply the protection | yes |
Machine dimention | 1950x1290x1070(mm) |
weight | 300kg |
Packing Plywood case | 2130*1470*1350mm 500kg |
Optional parts | High-grade cooling system imported focus lens double-head cylinder rotary attachment irregular rotary attachment servo motor/red dot |
company profile
Shenzhen Reliable Electromechanical Technology Company
is devoted to R & D, production, sales and service of CNC engraving machine, CNC cutting machine, co2 laser stamp engraving machine, CO2 laser engraving machines, CO2 laser cutting machine,die cutting machine,CO2 laser marking machine, YAG marking machine, YAG cutting machine, fiber marking machine, fiber cutting machine,plasma cutting machine and their accessories. responsible production team,professional sales and after sale service team.
Our company have excellent R & D team, these teams ensure our products of high technology, reliable quality, reasonable prices, and enable our customers to be satisfied.this bring us big market in both domestic and overseas.
Our company sware to be one Reliable supplier,to supply Reliable product and Reliable service.
Our staff are required to beloyal to customers,loyal to familyand loyal to society.This make our company famous in machinery field, and our staff popular with customers and family and society.
Warmly welcome all friends to visit us and start cooperation!
| acrylic and other hard material laser cutting and engraving machine 1290 80w RDL320 english offline software, blades worktable, red pointer,chiller cw3000,plywood box. | |
| acrylic and other hard material laser cutting and engraving machine 9060 80w RDL320 english offline software, blades worktable, red pointer,chiller cw3000,plywood box. | acrylic and other hard material laser cutting and engraving machine 9060 60w RDL320 english offline software, blades worktable, red pointer,chiller cw3000,plywood box. |
| acrylic and other hard material laser cutting and engraving machine 5070 80w RDL320 english offline software, blades worktable, red pointer,chiller cw3000,plywood box. | acrylic and other hard material laser cutting and engraving machine 5070 60w RDL320 english offline software, blades worktable, red pointer,chiller cw3000,plywood box. |
