Specifications

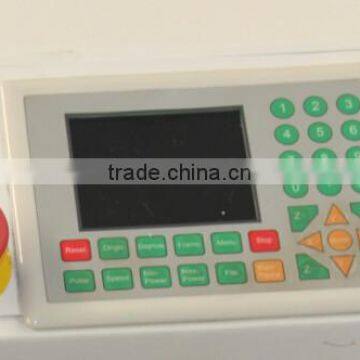

servo motor and driversdsp controller, cad coredraw photoshop software
reci co2 laser tube
imported rails and slider

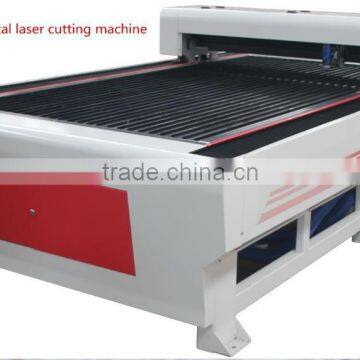

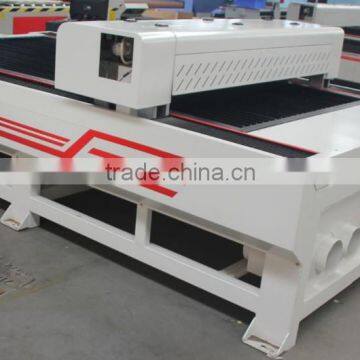

1325 GL METAL AND NON METAL CUTTING MACHINE
Parameter:
Model | 1325GL Laser Meatal&Non Metal Cutting Machine |
Working area | 1250x2500(mm) |
Laser power | 130W |
Laser type | Sealed co2 laser tube |
Working platform: | Blades working table |
Working speed | ≤300mm/s |
Resetting position accuracy | +/-0.05mm |
Graphic format supported | BMP PLT DST AI DXF |
Cooling mode | Constant water-cooling and protection system |
Working voltage | AC220+/-10% 50~60Hz 10A max |
Operating temperature | 0~45℃ |
Operating humidity | 5%~95% |
Driving motor | X/Y axis leadshine Servo motor, Z axis stepper motor |
Whole machine size | 3400x1830x1100(mm) |
Exhausting Method | Exhausted by funnel |
Compatible software | Creldraw, autocad,photoshop |
Features:
1.Mixed-cut:metal-Stainless steel, carbon steel and non-metal-acrylic, board
2.High precision:X/Y adopt leadshine servo motor with high precision belt transmission greatly
improve the response speed and cutting precision of equipment, extend the time of using
3.High precision and Good stability optimized the nc system control, it can meet the precision
parts processing, stable dynamic performance,also can work for long hours.
4. The cutting section with good quality:Mechanical follow-up cutting head system, cutting head always follows the material to keep the cutting point
location unchanged, which insures smooth cutting section without processing again. It can
adapt to flat or curved surface sheet cutting.
5.Adopt sealed co2 laser tube , main consumable items are electric energy,water-cooling, auxiliary gas and laser light.
6. Sample structure, easy operation, stable laser device and low maintenance cost.
Applicable industry:
Mainly used for advertising industry(stainless metal and carbon steel), sheet metal industry
(carbon steel), packaging industry(die board) and so on
Applicable materials: acrylic, stainless steel, carbon steel, MDF,die board.
Applicable show: metal spectacle frame, furniture plate cutting, MDF photo frame cutting
, building model cutting.
