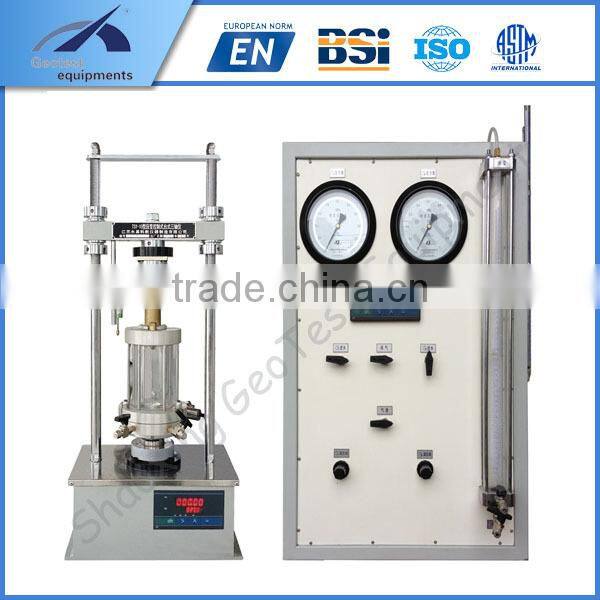

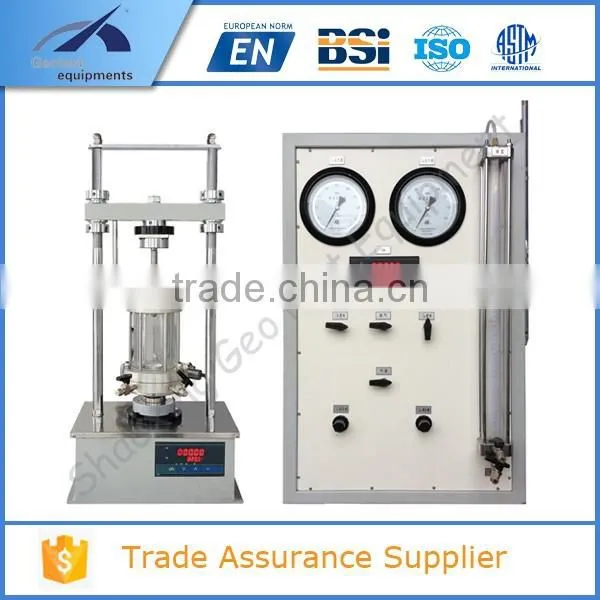

Triaxial soil shearing strength tests
Features:
a. Used to determine the shear resistance of soil to measure the stability of soil structure.
b. Total stresses are normally measured in a triaxial cell where the sample is subject to an all round confining pressure.
c. A load is applied through a piston onto a pressure pad, with the sample being confined within a rubber membrane so that no drainage in or out of the specimen is allowed.
d. Infinitesimal testing speed from 0.001 to 3mm/min (stepless adjustable)
| Model | TTA10-2/ Triaxial soil shearing strength tests |
| Sample size | Φ39.1×80mm |
| Load capacity | 10KN |
| Infinitesimal testing speed from 0.001 to 3mm/min(stepless adjustable) | |
| Working table stroke | 0-100mm |
| Cell pressure | 0-1Kpa |
| Drainage | 0-600Kpa |
| Pore pressure | 0-1000Kpa |
| Volume change | 0-50 cm³ |
| Axial displacement | 0-20mm(digital gauge) |
Triaxial soil shearing strength tests
Triaxial soil shearing strength tests
The biggest manufactor is in china, the top quality is in china, the best service is also in china!
Pls believe GEOTEST, Believe China Power!
We sincerely lookinf forward to cooperate with you!
