PLD-1 Plastic Limit Device

PLD-1 Plastic Limit Device

BS 1377-2 / ASTM D42 / AASHTO T90

Characteristics:

Moisture contents at which soil has smallest plasticity is called limit. For determination purpose plastic limit is dedefined as the water content at which a soil will just degin to crumble when rolled in to a thread of 3 mm dia.

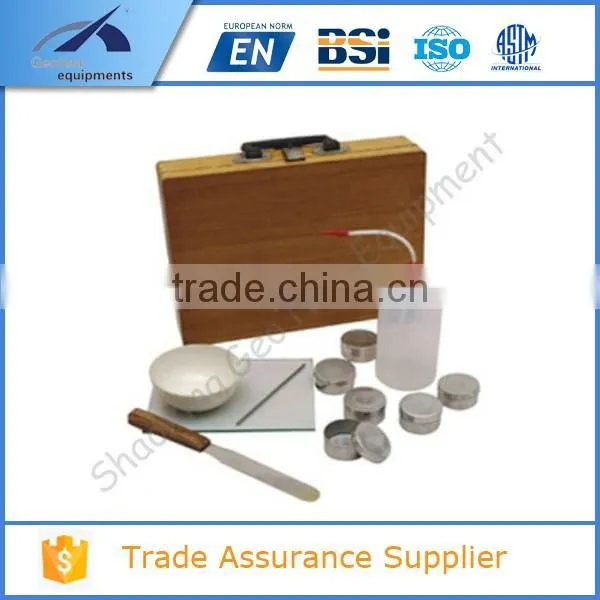

The complete set consists of one each:

1.Glass plate 300x300 mm having round ends(500x500x10 mm can be supplied at an extra cost)

2.Stainless steel rod 3 mm dia. x 150 mm long

3.Flexible spatula 150 mm dia.

4.Set of 6 moisture containers Φ75x30mm

5.Porcelain basin 150mm dia.

6.Plastic wash bottle 500 ml
