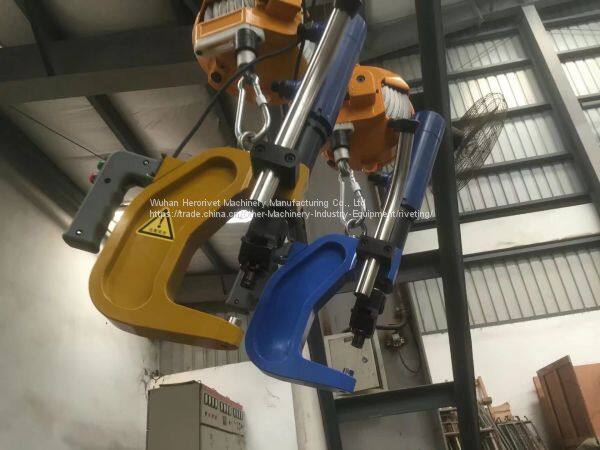

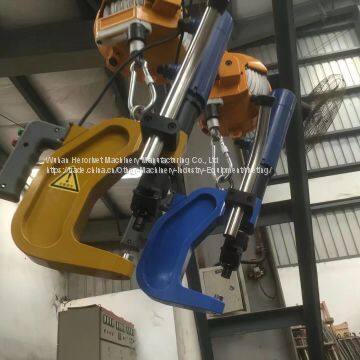

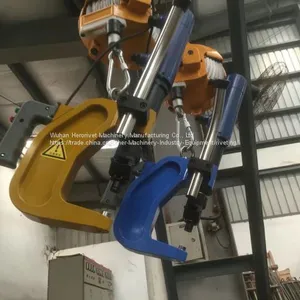

Help CenterSelf Piercing Riveting Machine With 50kN Maximum Pressure and High-strength Joints
Related Products
-
Self Piercing Riveting Systems(busway Piercing Riveting Machine)US$ 7250 - 8000MOQ: 1 Set -
Pierce Riveting Equipment Automation Equipment for Self-Piercing RivetsUS$ 7299 - 8000MOQ: 1 Set
-
Self-piercing Riveting Machine,Busway Piercing Machinery,Self-piercing Machine SuppliersUS$ 7200 - 8000MOQ: 1 Set
-
Automation Equipment for Self-Piercing Rivets Self-piercing Rivet SystemUS$ 7800 - 10000MOQ: 1 Set
-
Automatic Rivet Feed Self-Pierce Riveting Manual Hydraulic Riveting SystemsUS$ 7500 - 8000MOQ: 1 Set
Special Features:
Self-piercing
Automatic feeding
Maximum pressure: 50kN
Flow: 18L/m
Maximum working pressure:31.5mPa
Power: 4kW
Oil tank capacity: 30L
Hydraulic oil: HLP32 DIN 51524
Total (hydraulic system and main machine): 100kg
Self-piercing range: steel, aluminum

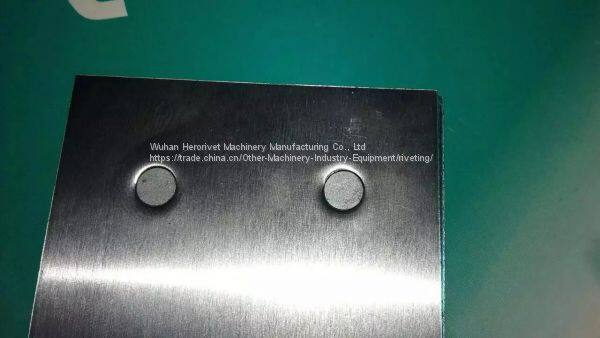

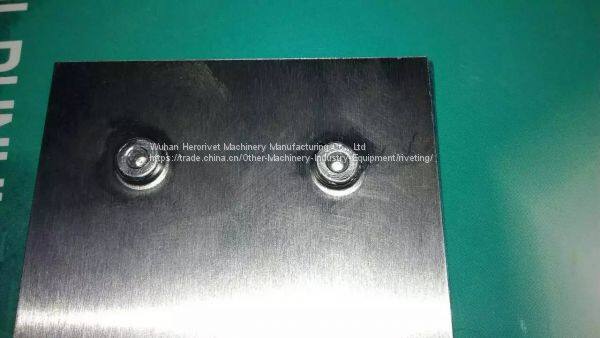

Self-Pierce Riveting, or SPR, is a mechanical joining process used to join two or more layers of material without the need for a predrilled hole. The sheets being joined are first clamped, then a precision self-piercing rivet is pressed through the top layers of material and is upset in the bottom layer, forming a strong interlock between the layers being assembled.
Equipment configurations can provide the flexibility to automatically feed and set two or more rivet lengths with the same tool to meet multiple stack-up processing needs.
Send Inquiry to This Supplier
