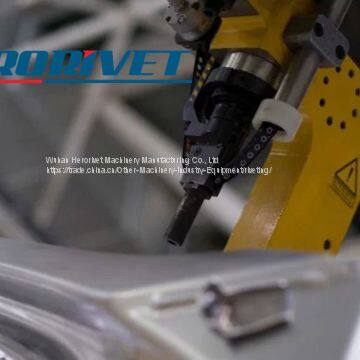

Automation Equipment for Self-Piercing Rivets Self-piercing Rivet System

The self pierce riveting equipment consists of three modular assemblies: power pack and control system, head assembly and feed assembly. Two modular standard systems are available: a high-volume system which can be equipped with a process monitoring system, and a medium-volume system that combines performance with compact design.

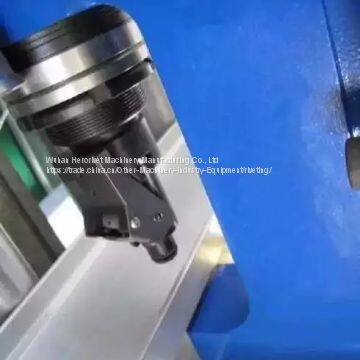

The installation systems are adapted to specific production processes – from operator-actuated systems to automated assembly lines. Riveting modules and lower dies of the head assembly can be engineered into different configurations to accommodate difficult accessibility conditions or to assemble large or awkwardly-shaped components.

Due to their short cycle times, these systems provide a very efficient working process, reducing assembly times to a minimum. They are especially cost-effective for medium- and large-volume production.

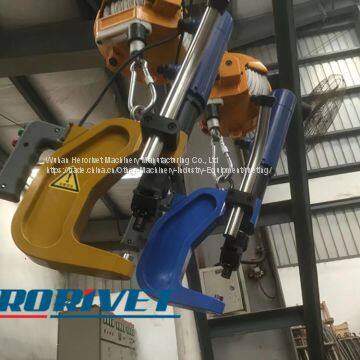

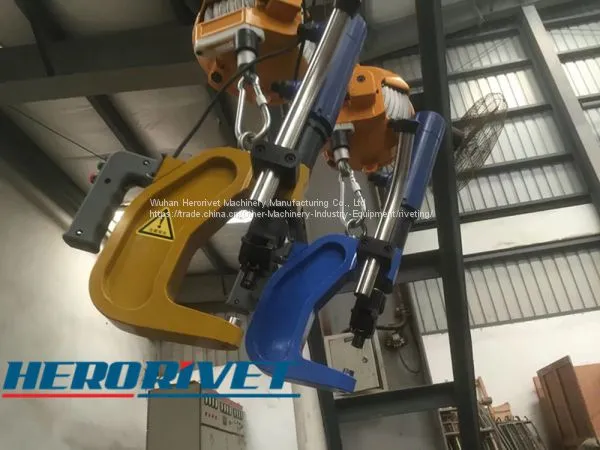

Hand-actuated or robot-mounted systems available

Flexible integration into existing production lines

Increase of productivity

Ensures a quality joint
