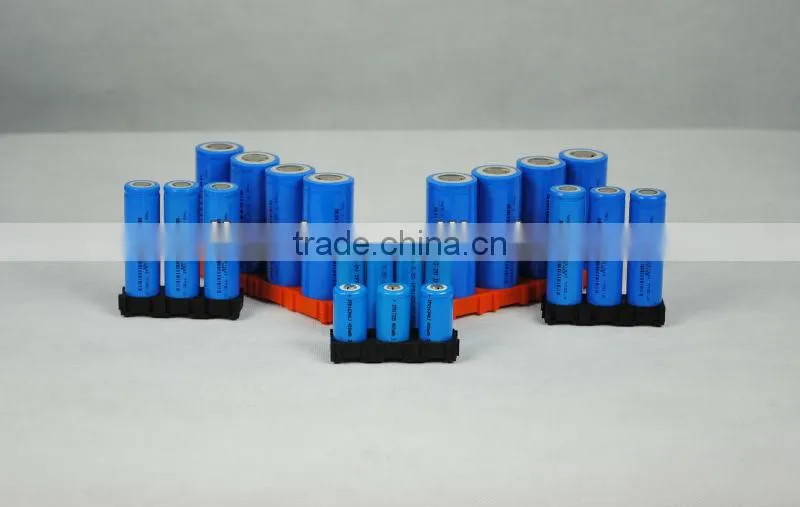

lifepo4 18650 30C battery cell
Specification for OCELL lifepo4 18650EC 1100mah
No. |
Items |
Specifications |
|
1 |
Charge cut-off voltage |
3.65V |
|
2 |
Nominal voltage |
3.2V |
|
3 |
Minimal capacity |
1050mAh @ 0.5C Discharge |
|
4 |
Nominal capacity |
1100mAh @ 0.5C Discharge |
|
5 |
Charge current |
5C |
|
6 |
Standard charging method |
1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to 0.05C |
|
7 |
Charging time |
Standard charge: 2.0 hours Ref |
|
8 |
Max. charge current |
2C |
|
9 |
Max. continue discharge current |
30C (Cell skin temperature cannot exceed 80°C) |
|
10 |
Discharge cut-off voltage |
2.0V |
|
11 |
Operating temperature |
Charging: -10°C ~ 45°C Discharging: -20°C ~ 60°C (Cell skin temperature cannot exceed 80°C) |
|
12 |
Storage temperature/humidity |
Temperature -10°C ~ +35°C Humidity 65%±20%RH (Recommended to store 23 ± 5°C for long term storage) |
|
13 |
Cell Weight |
41±1.0g |
|
14 |
Cell Dimension |
Length:Width: |
50.0±0.3 mm 18.2±0.2 mm |
15 |
Certificate |
ROSH |
UL |
We produce lifepo4 14500 18500 18650 22650 26650 32650 cells
