LiFePO4 3.2V50Ah Prismatic Battery

Name: LiFePO4 3.2V50Ah Prismatic Battery
Brand: Ocell
SKU: 143102976
Availability: InStock

US$ 60 - 70 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Hubei, China

Brand Name:

Ocell

Model Number:

IFR30135185EC-50Ah

Ocell New Energy Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hubei, China

Brand Name Ocell

Model Number IFR30135185EC-50Ah

Type Li-Ion

Components Other, LiFePO4

Size 30mm(W)*135mm(L)*180mm(H)

Voltage 3.2V

Weight 1.4Kg

Nominal Capacity 50Ah

Application energy storage system, solar light battery, EV etc

Specification

No.	Items	Specifications
1	Charge cut-offvoltage	3.60V
2	Nominal voltage	3.2V
3	Minimal capacity	50Ah@ 0.2C
4	Nominal capacity	52Ah@ 0.2C
5	Charge current	0.2C
6	Standard chargingmethod	0.2CCC (constant current) charge to 3.60V, then CV (constant voltage 3.60V) charge till charge current decline to £ 0.05C
7	Charging time	Standard charge: 6.5 hours Ref
8	Max. charge current	50A
9	Max. continue discharge current	125A
10	Discharge cut-off voltage	2.0V
11	Operating temperature	Charging: 0°C ~ 45°C Discharging: -20°C ~ 60°C (Cell skin temperature cannot exceed 65°C)
12	Storage temperature/humidity	Temperature -10°C ~ +30°C Humidity 65%±20%RH (Recommended to store 23 ± 5°C for long term storage)
13	Cell Weight	1.4Kg

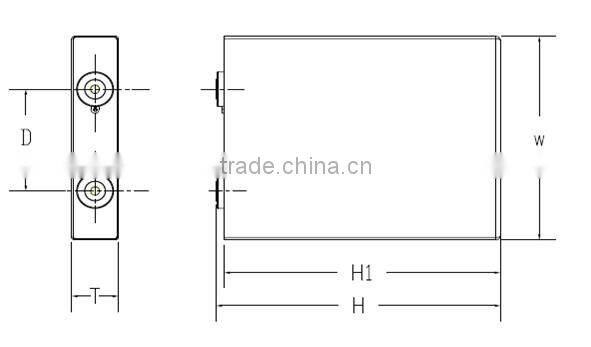

Drawing

H (mm)	H1 (mm)	W (mm)	T (mm)	D (mm)
185.0±1.0mm	180.0±1.0mm	135.0 ±1.0mm	30.0±1.0mm	67.5±1.0mm

Prismatic battery Models

Model		IFP30135185EC	IFP36115205EC	IFP36130200EC	IFP60150190EC	IFM3-1800EC
voltage (V)		3.2
Nominal capacity(Ah)		50	60	60	100	180
Charging method		CC, CV
Standard charging / discharging current(A)		15	12	12	20	36
Max. charging current(A)		50	60	60	100	90
Max. discharging current(A)		150	180	120	300	90
Max. charging voltage(V)		3.65
discharge cut-off voltage(V)		2
Dimension	Length (mm)	135	115	130	150	180
	width(mm)	30	36	36	60	73
	Height (mm)	180	205	200	189	278
	Total Height (mm)	185	220	215	205	285
resistance(mΩ)		3	3	3	2.5	5
Approx. Weight (Kg)		1.4	1.8	1.8	3.2	6
