3.2V 50Ah Lifepo4 Battery

Name: 3.2V 50Ah Lifepo4 Battery
Brand: OCELL
SKU: 143102968
Availability: InStock

Ocell New Energy Technology Co., Ltd.

5Yrs

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OCELL

Model Number:

3.2V series

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OCELL

Model Number 3.2V series

Composed Type Other

Type Other, lifepo4, Lifepo4

Components Other, Lifepo4

Size 185*30*135mm

Voltage 3.2V, 3.2v

Weight 1.4kg

Nominal Capacity 50ah

Application power

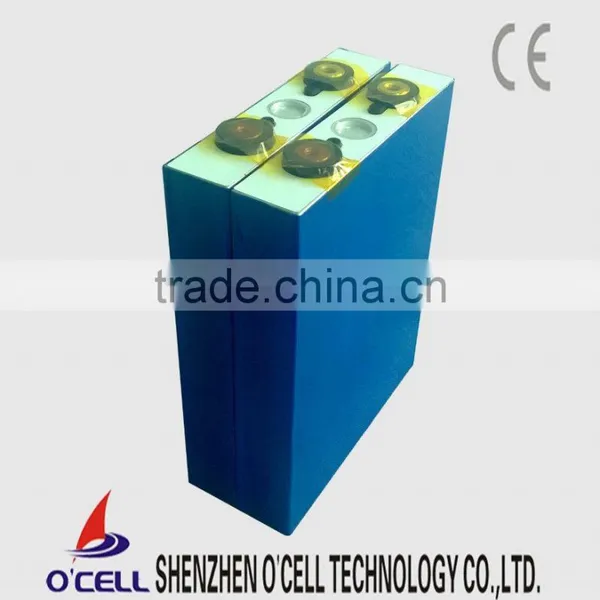

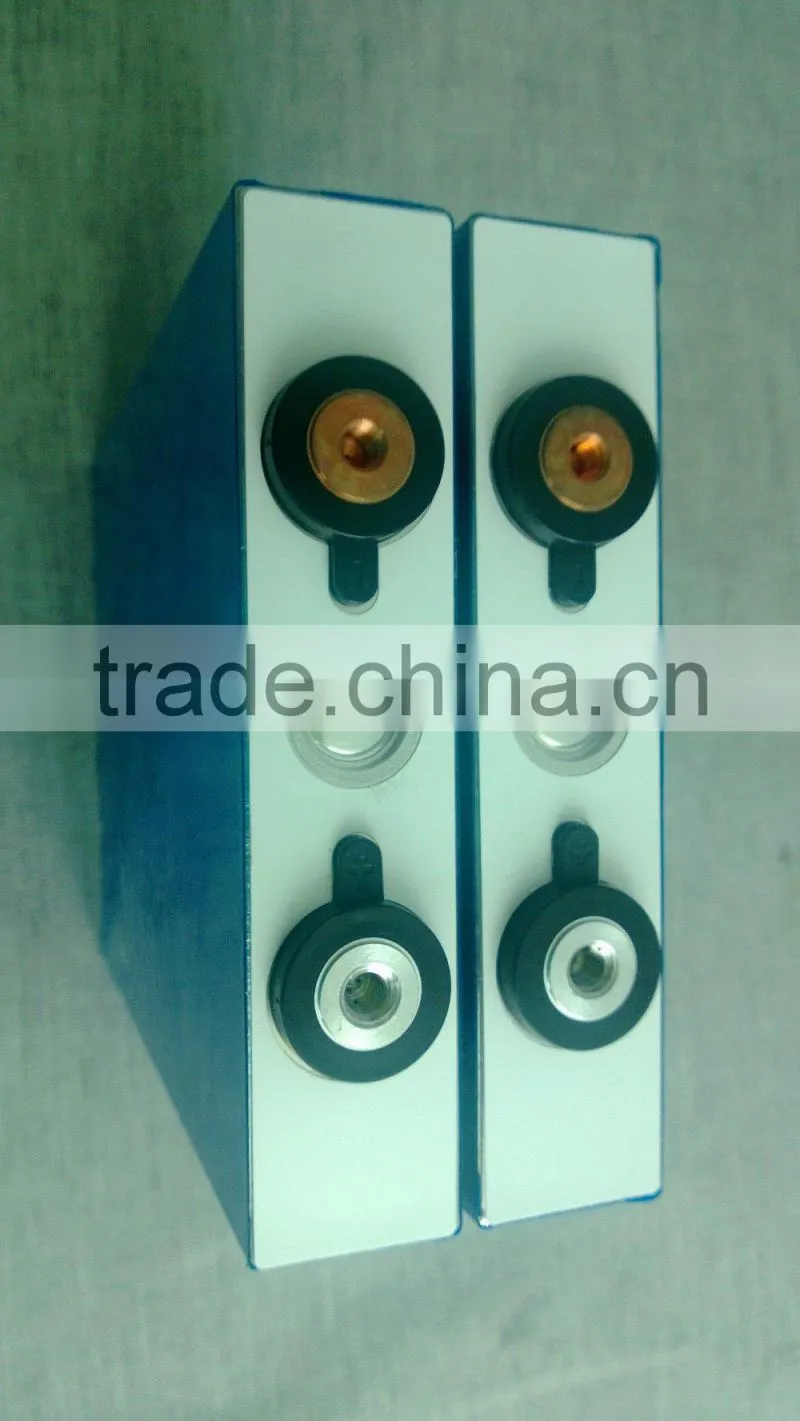

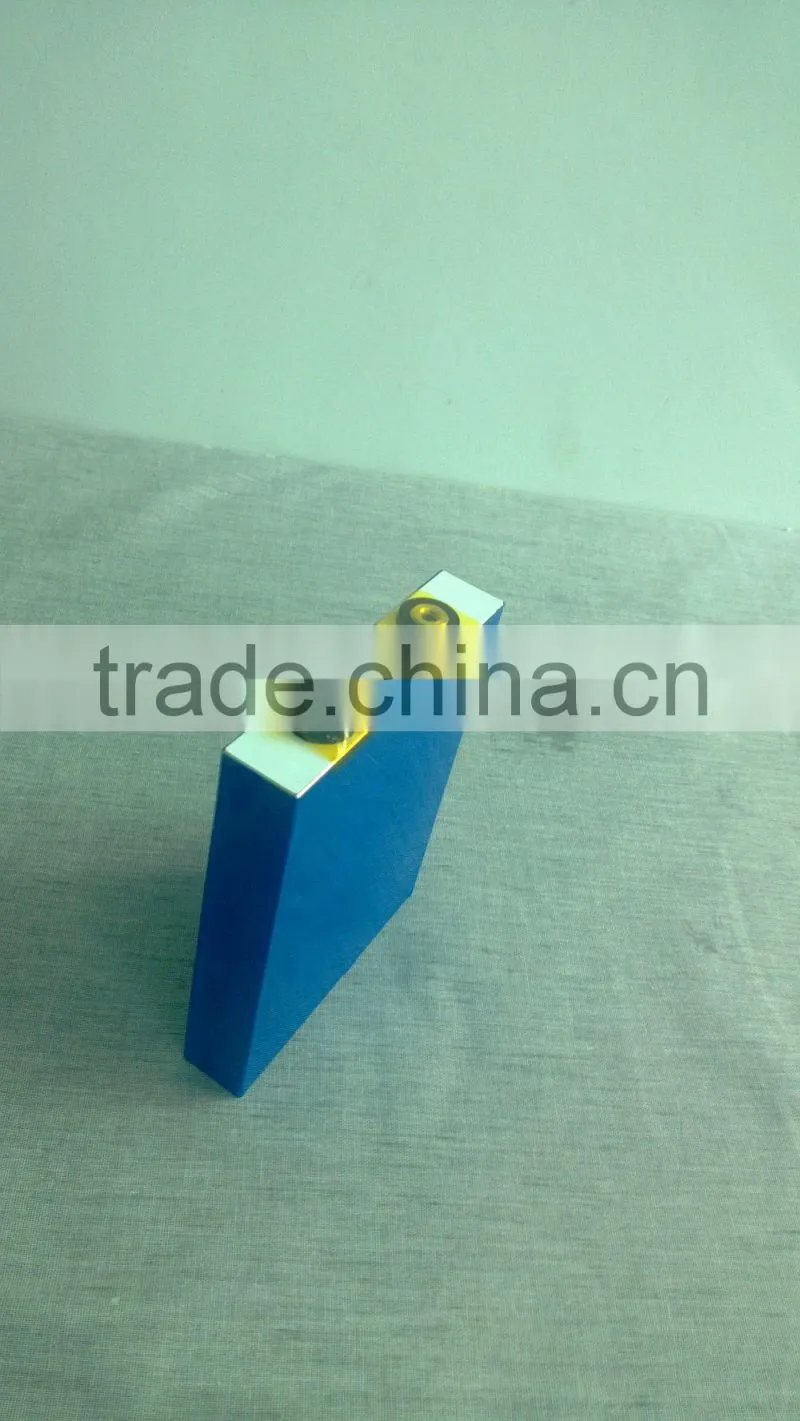

3.2V 50Ah lifepo4 battery

Specification

1	Rated Capacity	52Ah	Standard discharge(0.5C)after standard charge(0.5C)
2	Minimal Capacity	50Ah
3	Nominal Voltage	3.3V
4	Cycle Life	Higher than 60% of the Initial Capacity of the battery pack	1)Charge: 0.5C CC to 58.4V, then CV till current to 0.05C 2)Rest: 30min. 3)Discharge: 0.5C to 40.0V 4)Carry out 1200cycles (Temperature:20±5°C)
5	Discharge cut-off voltage	2.0V	2.5V(recommended)
6	Charging cut-off voltage	3.65V	3.65V(recommended)
7	Cell and assembly method
8	Packing material	ABS
9	Standard charge	0.5C constant current(CC) charge to 58.4V,then constant voltage (CC)58.4V charge till charge current decline to ≤0.05C
10	Standard discharge	Constant current 0.5C to 10.0V
11	Maximum Charge Current	1C	10A recommended for better peformance and longer life
12	Continuous Discharge Current	1C	Max 3C
13	Operation Temperature Range	Charge: 0~45°C	60±25%R.H.
13	Operation Temperature Range	Discharge: -10~50°C	60±25%R.H.
14	Storage Temperature Range	Less than 1 year : 0~25°C	60±25%R.H. at the shipment state
14	Storage Temperature Range	Less than 3 months:-5~35°C	60±25%R.H. at the shipment state
15	Approx Weight	1.4Kg
16	Maximum Dimension	18530135mm
