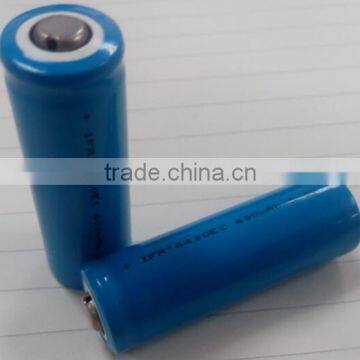

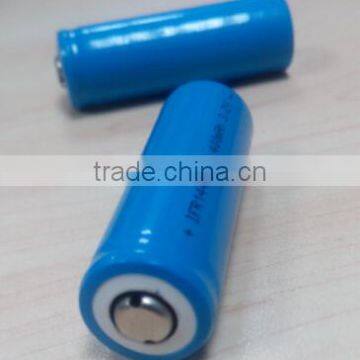

3.2V 400mAh 14430 Cylindrical Lifepo4 Cell

Name: 3.2V 400mAh 14430 Cylindrical Lifepo4 Cell
Brand: O'CELL
SKU: 143102972

US$ 0.1 - 1 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

O'CELL

Model Number:

IFR14500EC-500mAh

Ocell New Energy Technology Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name O'CELL

Model Number IFR14500EC-500mAh

Usage Other

Voltage Other, 3.2V

Sealed Type Sealed

Maintenance Type Free

Size 14*43mm

Weight 17g

Nominal Capacity 400mAh

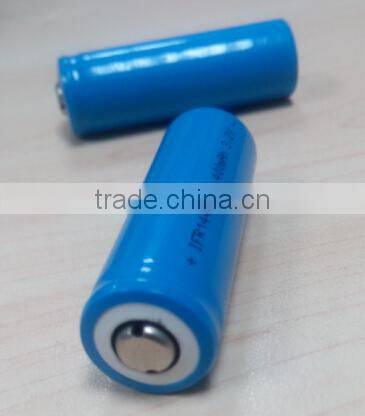

3.2V 400mAh 14430 cylindrical lifepo4 cell

Application:

protable solar lightings and toys

NO.	Items	Specifications
1	Charge cut-off voltage	3.65V
2	Nominal voltage	3.2V
3	Minimal capacity	400mAh @ 0.2C Discharge
4	Nominal capacity	400mAh @ 0.2C Discharge
5	Charge current	1C
6	Standard charging method	1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to <0.05C
7	Charging time	Standard charge: 2.0 hours Ref
8	Max. charge current	1C
9	Max. continue discharge current	400mA(Cell skin temperature cannot exceed 80°C)
10	Discharge cut-off voltage	2.0V
11	Operating temperature	Charging: -10°C ~ 45°C Discharging: -20°C ~ 60°C (Cell skin temperature cannot exceed 80°C)
12	Storage temperature/humidity	Temperature -10°C ~ +35°C Humidity 65%±20%RH (Recommended to store 23 ± 5°C for long term storage)
13	Cell Weight	17.0g±1.0g
14	Cell Dimension	Length: 43.0±0.3 mm
