Golf Trolley Battery

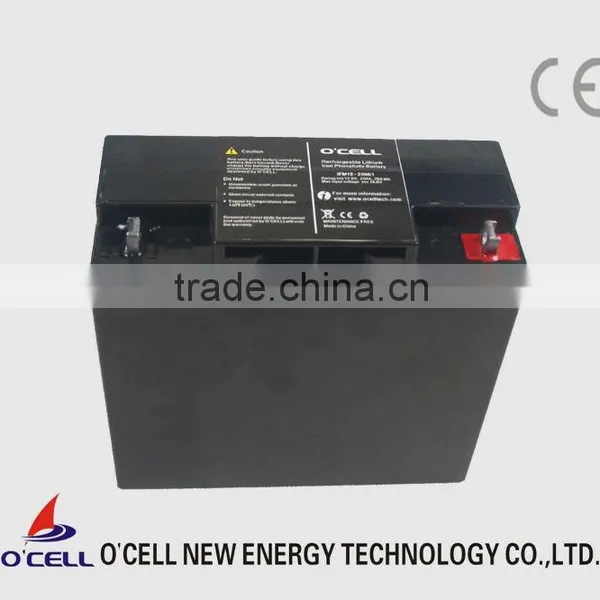

Name: Golf Trolley Battery
Brand: O'CELL
SKU: 143102462
Availability: InStock

Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

O'CELL

Model Number:

36 Holes Battery

Ocell New Energy Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name O'CELL

Model Number 36 Holes Battery

Specifications

Special designed for Golf Trolley
36 Holes Battery
Light weight
Longer cycle life
More powerful than Lead acid battery

Item	General Parameter		Remark
1	Rated Capacity	21.0Ah	Standard discharge(0.5C)after standard charge(0.5C)
2	Minimal Rated Capacity	19.6Ah	Standard discharge(0.5C)after standard charge(0.5C)
3	Nominal Voltage	12.8V
4	Cycle Life	Higher than 60% of the Initial Capacity of the Cells	Charge: CC at 0.5C to 14.6V, then CV till current to 0.05C,Rest: 30min,Discharge: 0.5C to 10.0V,Temperature:20±5°C, 2000cycles
5	Discharge cut-off voltage	8.0V	10.0V(recommended)
6	Charging cut-off voltage	15.6V	14.6V(recommended)
7	Cell and assembly method	IFR18650EC-1.5AH	4S14P
8	Packing material	12V17AH SLA battery housing
9	Standard charge	0.5C constant current(CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to ≤0.05C	Charge time : Approx 3.5h
10	Standard discharge	Constant current 0.5C, Cut-off voltage 10.0V
11	Maximum Charge Current	3A
12	Continuous Discharge Current	25A	Over current 40±5A 9mS
13	Operation Temperature Range	Charge: 0~45°C	60±25%R.H.
13	Operation Temperature Range	Discharge: -10~50°C	60±25%R.H.
14	Storage Temperature Range	Less than 1 year : 0~25°C	60±25%R.H. at the shipment state
14	Storage Temperature Range	Less than 3 months:-5~35°C	60±25%R.H. at the shipment state
15	Weight	Approx: 2.75Kg
16	Pack Dimension	High:166mm
		Width: 76mm
		Length: 181mm
