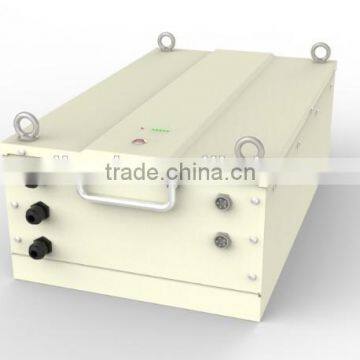

48V LiFePO4 Battery 100Ah for AGV

Name: 48V LiFePO4 Battery 100Ah for AGV
Brand: O'CELL
SKU: 143102012
Availability: InStock

Ocell New Energy Technology Co., Ltd. Gold Verified Supplier

5Yrs

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

O'CELL

Model Number:

48V100Ah

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name O'CELL

Model Number 48V100Ah

After-sales Service Provided Overseas third-party support available

48v lifepo4 battery Specification

No.	Item	General Parameters	Remark
1	Nominal Voltage	48V
2	Nominal Capacity	100Ah
3	Charging cut-off voltage	3.65V/cell (≤54.75V)	adjustable
4	Discharge cut-off voltage	2.5V/cell (≥37.5V)	adjustable
5	Max. continuous charge current	150A@23℃	200A (≤5 minutes)
6	Max. continuous discharging current	50A@23℃
7	Charge terminals	350# Anderson plug + 50mm² cooper wires (300mm in length)
8	Discharge terminals	120# Anderson plug + 10mm² cooper wires(300mm in length)
9	Housing Dimension	585mm345mm228.5mm
10	Switch	LED in red
11	Communication port	RS485 interface, 5-pin aviation plug
12	Working temperature	-10℃~60℃
13	Storage temperature	-20℃~70℃
14	Relative Humidity	10%~80%,No condensation
15	Cooling method	Passive cooling

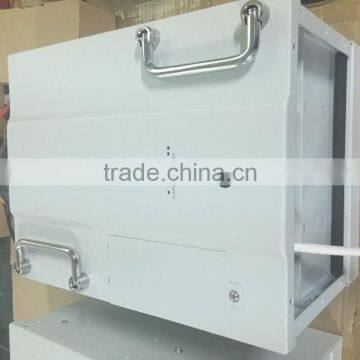

16	Housing	Black, Frosted cold rolled steel with handle

48v lifepo4 battery Function Description

No.	Item	General Parameters
1	Charge protection	When the Battery is charged to full, they BMS would open the main relay/contactor.
2	Current Measurement	Current range from -200A (charging) to +100A (discharging) within the accuracy of ±0.5A.
3	Voltage Measurement	Voltage measurements should be accurate within 10mV/cell throughout the full operating temperature range.
4	SOC(state of charge)Measurement	State-of-charge (SOC) will be monitored via individual cell voltage measurements and the charge/discharge current. The SOC accuracy shall meet the accuracy listed below: 0 ~ 20% SOC: 5% accuracy (voltage-temperature compensated) 20% - 80% SOC: 2% accuracy (coulomb counting) 80% - 100% SOC: 5% accuracy
5	RS-485 communication	RS-485 Communications will be used to communicate with the HOST
6	Analogue output	SOC analogue output: 0V~5V
7	Digital output	Two dry contact Digital Output. Customer can adjust the settings of voltage, current, SOC, temperature etc via monitoring software.
8	LED status display	5 LED indicators to show SOC. The battery need maintenance when the led light became red

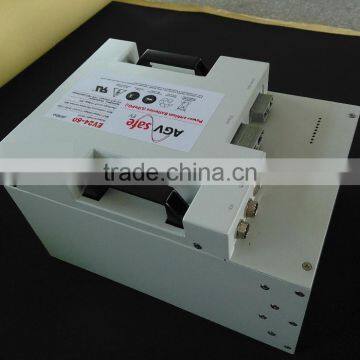

Other LiFePO4 AGV Battery

Model	Description	Part No.	Major Parameters
24V60AH	V1.0 Standard	A2460	24V60AH, Max charging 2C (≤10 min.), 1C (continuous). Discharging 0.5C(continuous). Charging terminal: 25mm²cable(300mm in length) & 120# Anderson Plug(gray); Discharging terminal: 6mm²cable (300mm in length) & 50# Anderson Plug (gray);
	V1.0 Standard + voltage regulator	A2460V	With voltage regulator
	V1.0 Standard + Fuse	A2460F	With fuse
	V1.0 Standard + voltage regulator +Fuse	A2460FV	With voltage regulator and fuse
	V2.0 Standard	L2460A	The same function with A2460, But dimension is different
	V2.0 Customized	L2460B	The same function with A2460, But dimension is different
24V40AH	Standard	A2440	24V40AH, Max charging2C (≤10 min.), 1C (continuous).
48V100AH	Standard	A48100	48V100AH, Max charging 2C (≤10 min.), 1C (continuous). Discharging 0.5C(continuous). Charging terminal: 50mm²cable(300mm in length) & 350# Anderson Plug(gray); Discharging terminal: 25mm²cable (300mm in length) &1250# Anderson Plug (gray);
48V200AH	Standard, Charging and discharging share same terminals	A48200	48V200AH, charging & discharging 1C (continuous). Charging & discharging terminal: 50mm²cable(300mm in length) & 350# Anderson Plug(gray)
