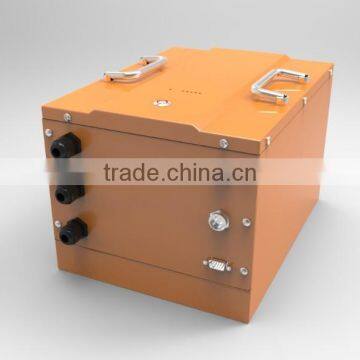

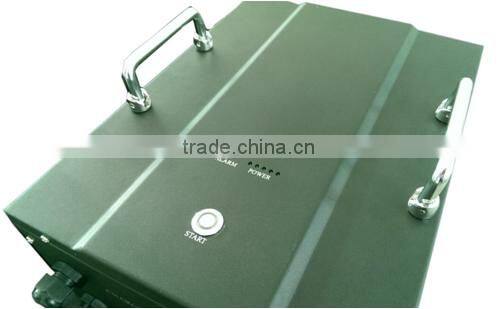

Help CenterOCELL Lithium Deep Cycle Battery 24V60Ah LiFePO4 Battery Pack for AGV
Related Products
-
Lithium Ion 48V100AH Battery Pack for Electric Sightseeing CarUS$ 5,000 - 8,000MOQ: 1 Set -
Lithium Ion 48V 100Ah, 48V LiFePo4 Battery for UPS BatteryUS$ 3,500 - 5,000MOQ: 5 Packs
-
24V LiFePO4 Battery 20Ah for RoboticsUS$ 400 - 600MOQ: 5 Packs
-
24V LiFePO4 Battery for AGV 60Ah, 48V100AhNegotiableMOQ: 1 Piece
-
48V LiFePO4 Battery 100Ah for AGVNegotiableMOQ: 1 Piece
OCELL Lithium Deep Cycle AGV Batteries:
LiFePO4 battery 24V 60Ah for Auto Guide Vehicle
OCELL Lithium Deep Cycle Batteries, using Lithium Iron Phosphate (LiFePO4) technology offer excellent weight saving within the same footprint as industry standard lead acid (VRLA) alternatives. The internal management system allows them to be used as an alternative to AGM or GEL batteries with minimal changes. LiFePO4 is also an intrinsically safer chemistry with improved safety compared to other lithium options.
The integrated management system monitors the current, voltage and temperature of the battery and the cells. When the battery is used outside of the recommended operating parameters it will react and isolate the battery from the system maintaining safety. When the source of the error is removed the system resets so that the battery can be used again.
Benefits
- Between a half and a third lighter than VRLA
- Very high cycle life compared to VRLA
- Integrated battery management including cell balancing
- Fast recharge and superior cycle performance
- Robust, sealed construction, no maintenance
- Industry standard sizes
- UL Certified Cells
Applications
- Portable Power
- Auxiliary Vehicle Power
- Marine
- Solar Power / Renewable Power
- Defence
- Medical Carts
- Environmental Control Back-up Systems
- Golf trolley
- AGV
Internal Battery Protection
- Over charge protection
- Over discharge protection
- Over current protection
- Temperature protection
- Cell balancing function
Transportation
To be shipped as Class 9 Hazardous Goods,
however please contact OCELL team for more information via sales11 AT
Item | Unit | Specifications |
Typical Capacity | Ah | 60Ah |
Minimum Capacity | Ah | 59Ah |
Nominal Voltage | Voltage | 25.6V |
Approx.Weight | Kg | 25kgs |
Max. Charge Voltage | Voltage | 29.2V |
Cut-Off Discharge Voltage | Voltage | 20V |
Standard Charge Current | Amps | 20A |
Rapid Charge Current | Amps | 30A |
Continuous Discharge Current | Amps | 30A max. |
Pulse Discharge Current(5S) | Amps | 50A |
Storage Temperature Range | oC | -20oC--60oC |
Working Temperature (Charging) | oC | 0oC--45oC |
Working Temperature (Discharging) | oC | -20oC--60oC |
Application | Scooter,Wheelchair,Golf Car,Medical cart ,AGV | |
It is CRITICAL that you determine your device polarity before using the battery and connect to the battery correctly in polarity. FAILURE TO DO SO MAY RESULT IN SEVERE DAMAGE TO YOUR PRODUCT!
Replacement Batteries, Wheelchair Batteries, Emergency Lighting Batteries, Motorcycle Batteries, Floor Scrubber Batteries, Power Sport Batteries, Golf Cart Batteries, Farm/Lawn Garden Batteries, Renewable Energy Batteries, Automotive Batteries, Commercial Batteries, Lithium Batteries, Solar Batteries,LiFePO4 batteires,AGV Batteries
