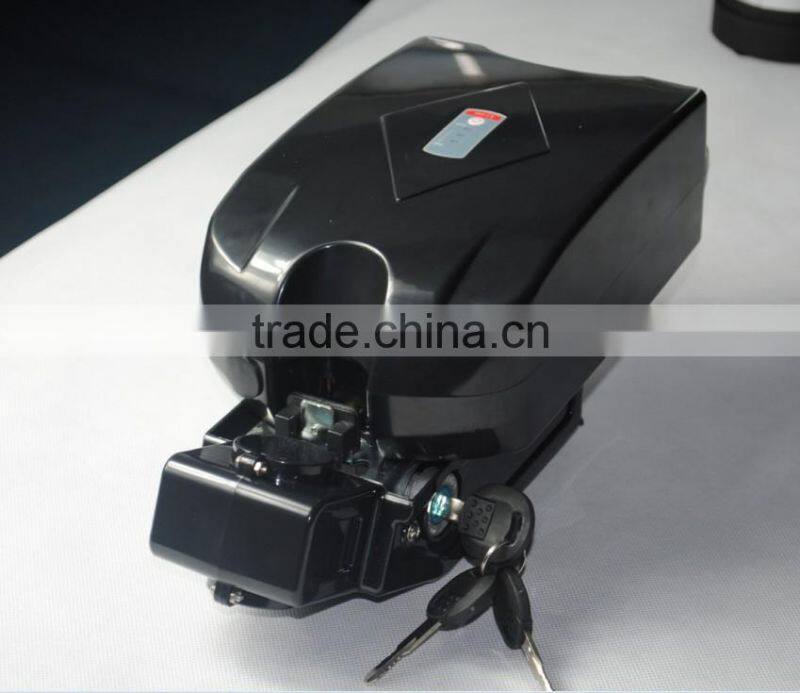

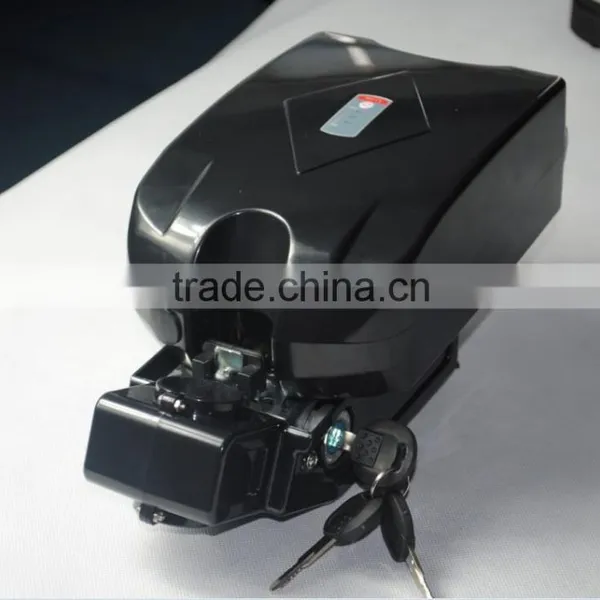

frog style 24V LiFePO4 battery for ebike
Battery specification:
| Model | IFM24-100E2-01 |
| Dimension | 355*150*155mm |
| Weight | 3.5kg |
| Nominal Voltage | 25.6V |
| Dischange cut -off voltage | 20V |
| Charge cut-off voltage | 31.2V |
| Standard charge voltage | 29.2V |
| Nominal capacitty | 10Ah |
| Standard charge current | 2A |
| Max charge current | 5A |
| working temperature | charge 0-50°c discahrge -20~50°c |
| Charger | CC/CV |
| Storage temperature | -20~50°c |
| Circle life | 1000 cycles (80% DOD) |
| Motor | 350w or below |

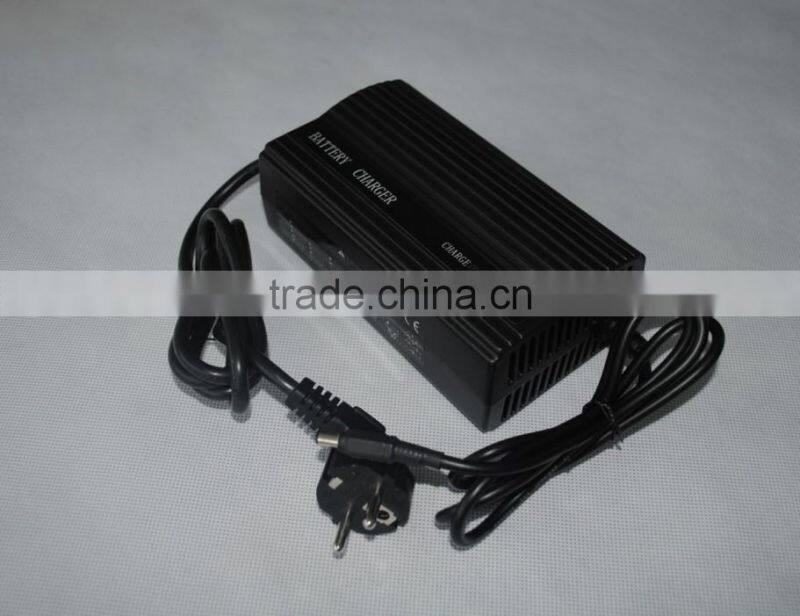

Chaeger introduction:
1. AC Input Voltage: 90V~264V .
2. Charge Voltage: 29.2Volts.
3. Charge Current: 5Amps.
4. AC Plug: Europen Standard or American Standard.
5. Power: 150Watts.
Shipping:
1. We will ship the products within 25 days after receipt of payment.
2. We can ship to you UPS/FEDEX/DHL/TNT/Air/Sea. Other shipping terms can also be arranged according to specific requirements.
Payment:
1.We accept T/T , PAYPAL , Western Union, MoneyGram, and so on.
2.If you prefer other payment terms,please contact us.
Replacement Policy:
1.We provide one year warranty.
2.If items is defective , please notify us within 3 days after receiving goods.
3.Any items must be returned in their original condition to qualify for replacements

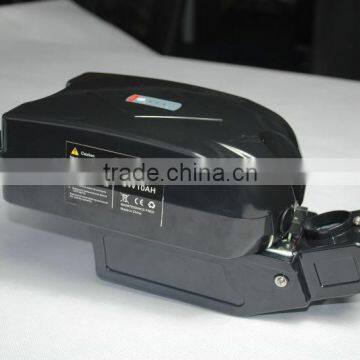

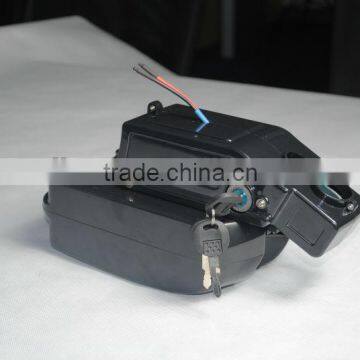

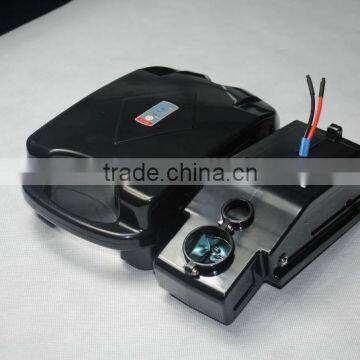

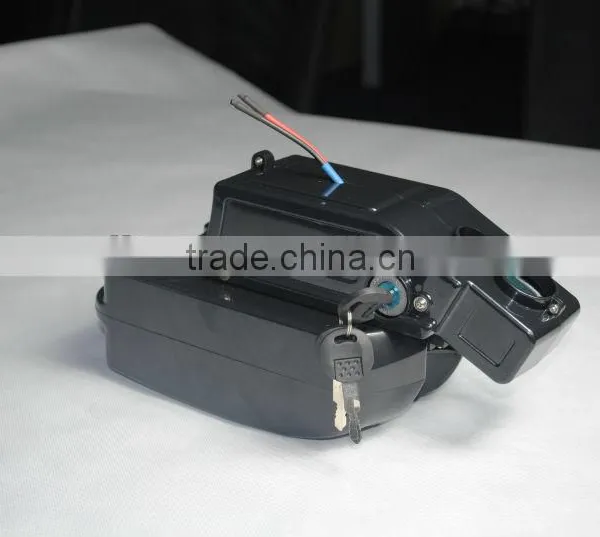

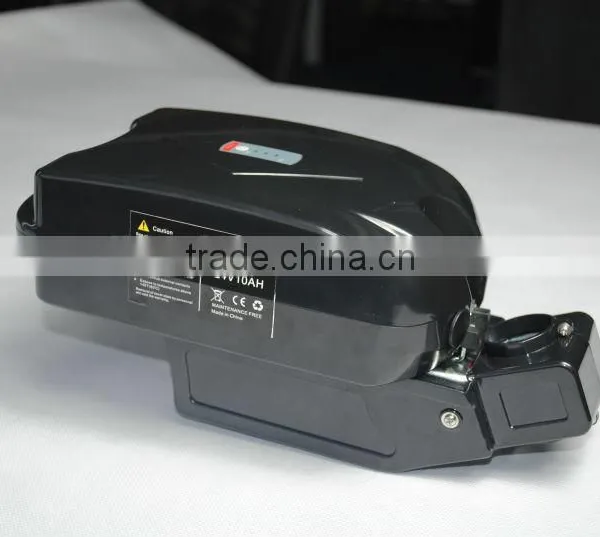

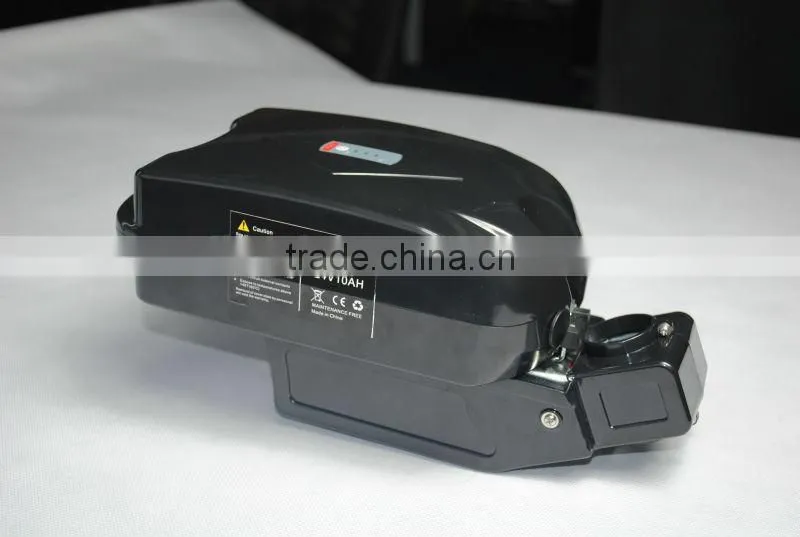

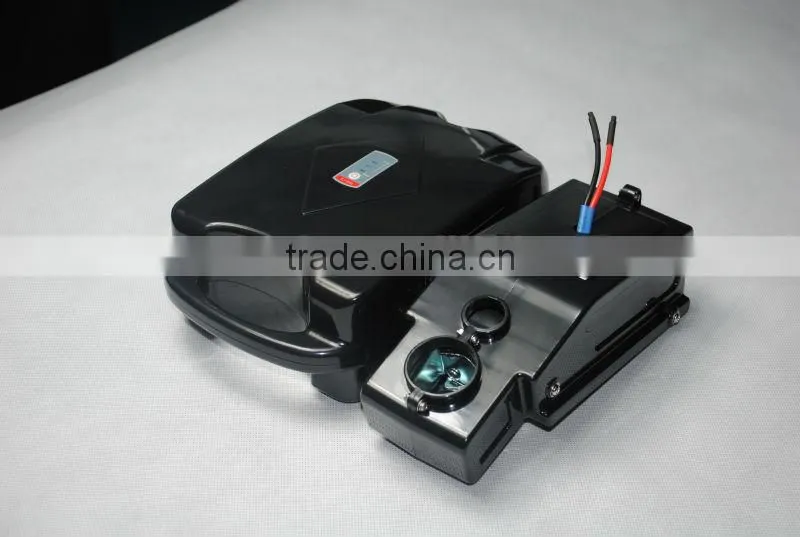

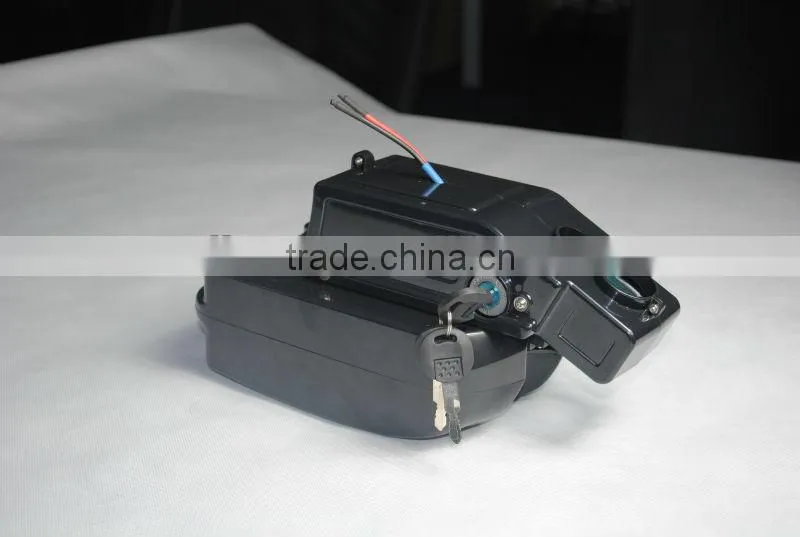

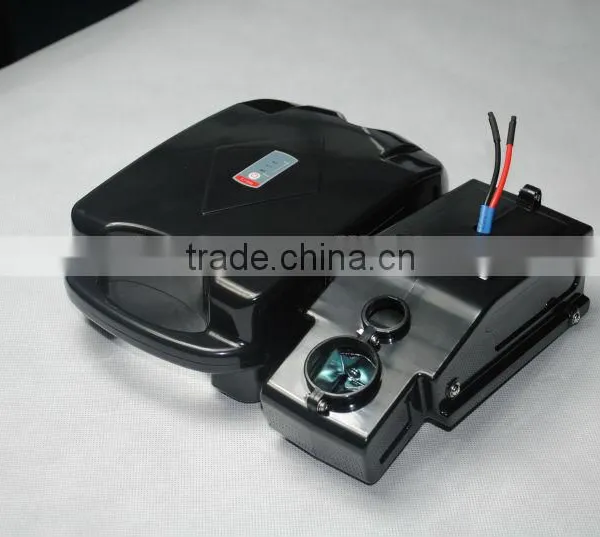

Photo:
Special standards can be made to order ! please send inquiry for more information about price and others
Welcome to visit our factory!!
