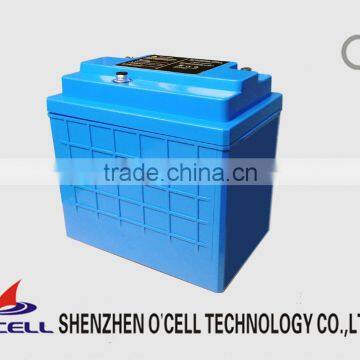

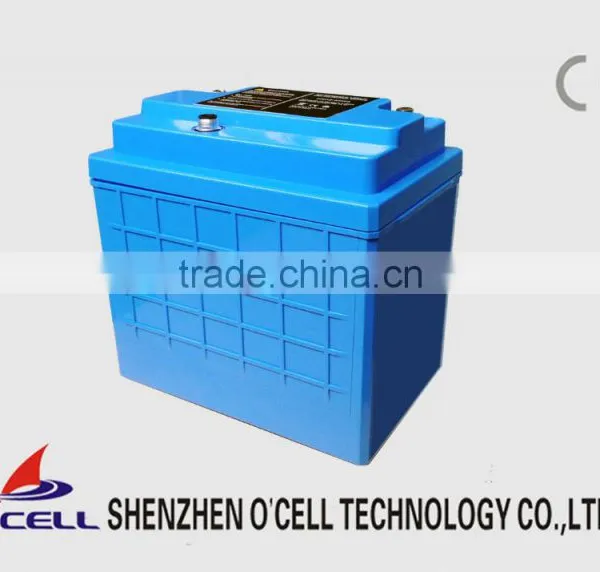

LiFePO4 24V22AH for Solar Street Lamp

LiFePO4 24V22AH for Solar Street Lamp thumbnail-1
LiFePO4 24V22AH for Solar Street Lamp thumbnail-2
LiFePO4 24V22AH for Solar Street Lamp thumbnail-3
LiFePO4 24V22AH for Solar Street Lamp thumbnail-4
LiFePO4 24V22AH for Solar Street Lamp thumbnail-5
LiFePO4 24V22AH for Solar Street Lamp thumbnail-6
LiFePO4 24V22AH for Solar Street Lamp photo-1
LiFePO4 24V22AH for Solar Street Lamp photo-2
LiFePO4 24V22AH for Solar Street Lamp photo-3
LiFePO4 24V22AH for Solar Street Lamp photo-4
LiFePO4 24V22AH for Solar Street Lamp photo-5
LiFePO4 24V22AH for Solar Street Lamp photo-6
Negotiable MOQ: 1 Pack (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Capacity:
<30AH, 22AH
Voltage:
Other, 24V, 24V
Size:
130*183*195mm
Contact Supplier Request Quote Chat Now
Ocell New Energy Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Voltage Other, 24V, 24V
Size 130*183*195mm
Brand Name O'CELL
Model Number IFM24-220E3-SMBUS

Manufacture 24V20AH LiFePO4 battery pack with SMbus
Voltage: 24V

Capacity: 22AH

Weight: 6.0Kg

Dimension: 130*183*195mm

Max charge current: 38A (10A recommended)

Over current: 40A



Specification form:

NO.

Items

Specifications

1

Charge voltage

29.3V

2

Number of series

8S7P

3

Nominal voltage

25.6V

4

Nominal capacity

22AH(0.2C discharge)

5

Charge current

standard charging: 0.2C

6

Rapid charge: 0.5C

7

Charging time

standard charging:6.0 hours

8

rapid charge: 3.0 hours

9

Max charge current

10A

10

Max continuous discharge current

38A

11

Discharge cut-off voltage

20.0V

12

Operating temperature

charging: 0°C-45°C



discharging: -10°C-45°C





New Function!

1. SMbus to know more information for battery status

2. Capacity indicator available

3. Fuse for duplicate protection



Application:

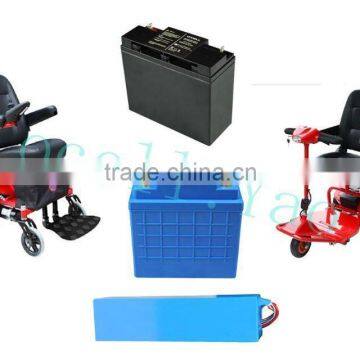

Communication: back-up electric supply, interphone
Vehicles: electric bicycle, golf car, electric wheelchair
Power tools: electric cropper, electric drill, electric saw, electric hammer.
Illuminate devices: solar battery, miner lamp, solar street lamp, emergency light, and electric torch, LED lamps and lanterns, traffic signs,
Others: toy, small home appliance, wireless monitoring equipment, Medical instrument equipment, toys, etc





Features:

• Ultra light. One fifth the weight of lead-acid batteries on average
• Twice to four times the service life of lead-acid batteries
• Drop-in replacement for your OEM battery
• Fast recharge rate
• No explosive gasses during charge, no lead, no acid
• Environmentally friendly

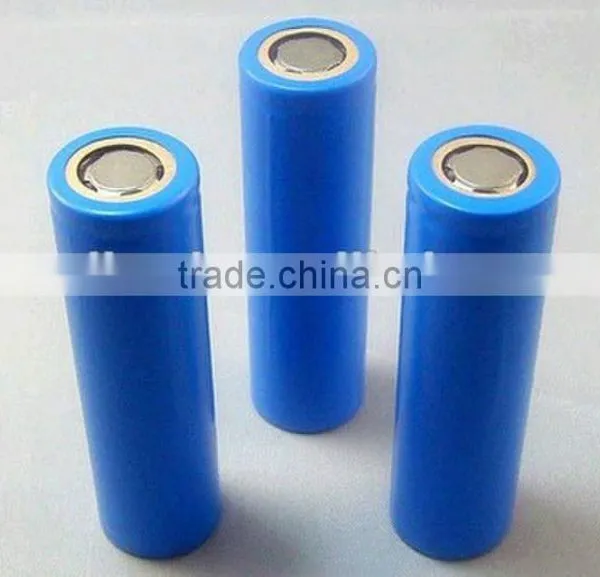

Pls check below picture for inner configuration:



 LiFePO4 24V22AH for solar street lamp
