LIthium battery, Lithium ion battery packs.LiFePO4 cells
Module Voltage:12V

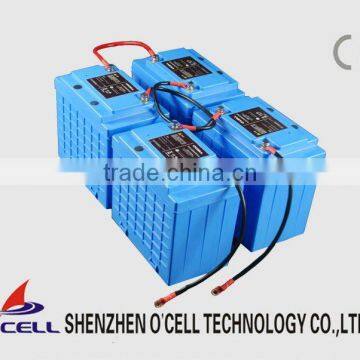

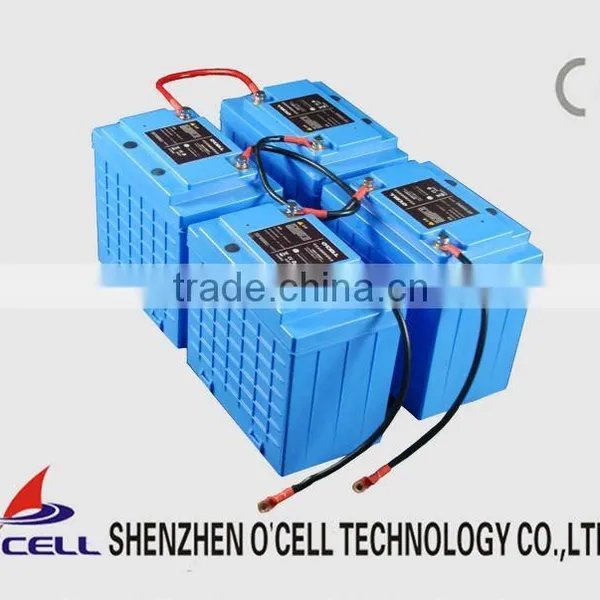

Module Capacity:100Ah 2S2P to reach 24V200AH
2000 cycle life
Used for solar power storage
Advantage of our module:
- Water-resistant and firm ABS plastic casing.
- Built-in PCB protection.
- Prevent short circuit, over-current, over-heat, over-charge, over-discharge.
- The internal pack is stabilized by braces
- Avoiding mechanical accidents caused by vibration
Specification:
Detailed Product Description
High drain up to 150A(30S);
Humanized monitor interface available;
Easy to install, expand,control and maintenance;
BMS:
OCELL BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate it into our battery module) and contactor.
Besides the basic functions such as over charge/ discharge, over current, short circuit, over temperature and balancing, Our BMS owns the following features
1. Master-Slave architecture makes the system flexible;
2. Two level warning makes maintenance easier;
3. CAN2.0 and industrial level electronic components make system reliable;
4. Contactor makes high rate charge & discharge feasible;
5. Periodic insulation measurement makes personnel safety possible;
6. Host can control the system easily;
Battery module:
1. Modular design makes the system installation, maintenance easier;
2. Battery modules can be connected in series or parallel to make the system more flexible;
3. IP56 dust and water proof design suit for in severe circumstance;
4. Dual LED indicator makes the battery module status easy to know;
5. High accuracy SOC calculation;
No. | Item | Specification |
1 | Battery module | IFM12-1200E1(12.8V120Ah) |
2 | Assemble method | IFR26650 |
3 | Nominal capacity/Ah | 120Ah |
4 | Nominal voltage/V | 25.6V(12.8V*2) |
5 | Max. Charge voltage/V | ≤28.4V(14.6V*2) |
6 | Discharge cut-off voltage/V | ≥20.0V(10.0V*2) |
7 | Recommended charge current/A | ≤55A |
8 | Discharge current/A | ≤155A |
9 | Max. discharge current/A | ≤300A(10S) |
10 | Weight/Kg | <56Kg |
11 | Approximate resistance/mΩ | <60mΩ |
12 | Dimension(for reference only) | depend on configuration |
13 | Temperature range | charge:0~45°C |
discharge:-10~50°C | ||
14 | Storage temperature | -10~45°C |
15 | Over voltage warning/V | 31.2V(15.6*2) |
16 | Over voltage alarm/V | 32V(16.0V*2) |
17 | Under voltage warning/V | 22.4V(11.2V*2) |
18 | Under voltage alarm/V | 18.4V(9.2V*2) |
19 | Over temperature warning/°C | 60°C |
20 | Over temperature alarm/°C | 65°C |
21 | Regeneration function | Depend on Motor controller |
contact sales11 AT for more details.
