Specifications
LiFePO4 Battery pack 24V10AH1 Ultra-Long Lifecycle
2 Lighter Weight, Smaller Size
LiFePO4 Battery pack 24V10AH

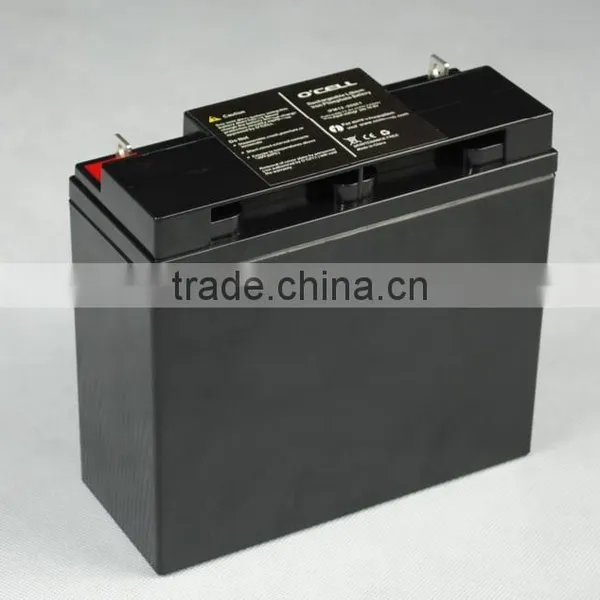

O'CELL 24V10Ah Solar Battery Pack with SLA Case
Usage Notes:
Our LiFePO4 Battery pack 24V10AH, with nominal voltage of 24V and capacity of 10Ah is assembled with high power LiFePo4 cells.It can be used individually and can be connected in serial or parallel to achieve given voltage and capacity.
Features:
a. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.
b. Long life-cycle: Can be circularly used, best can up to 2000 times recycles, 8 times of Lead acid battery.
c. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.
d. Good performance at high temperature and high temperature resistance
e. Low self-discharge rate, less than 3% monthly.
f. No memory effects and highly efficient charge.
g. Environment friendly: Clean and Green energy poses no pollution on our environment.
Item | Unit | Specifications |
Nominal Capacity | Ah | 10.0 |
Nominal Voltage | Voltage | 24.0 |
DimensionH×W×L | mm | 181×76×166mm |
Weight | kg | 2.55 |
Charge Cut-off Voltage | Voltage | 29.2 |
Discharge Cut-off Voltage | Voltage | 20.0 |
Charge current | Amps | 10.0 |
Rated Discharging Amperage | Amps | 25.0 |
Standard Discharging Amperage | Amps | 25.0 |
Internal Resistance | mΩ | <15 mΩ |
Working Temperature (Charging) | oC | 0oC--55oC |
Working Temperature (Discharging) | oC | -20oC--70oC |
Relative Humidity | N/A | 45%--75%RH |
Life Cycle(2C,80%DOD) |
| 1000 |
Life Cycle(1C,80%DOD) |
| 2000 |
Warranty | Year | 1 |
