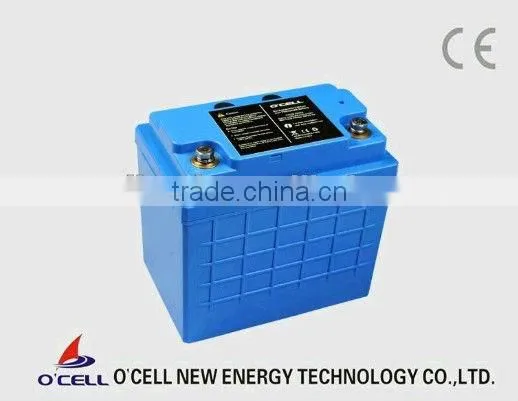

Lifepo4 Battery 24V 60Ah/ 50AH, for Electric Car Battery, Lithium Ion 50Ah

Name: Lifepo4 Battery 24V 60Ah/ 50AH, for Electric Car Battery, Lithium Ion 50Ah
Brand: OCELL
SKU: 143101690
Availability: InStock

Ocell New Energy Technology Co., Ltd. Gold Verified Supplier

5Yrs

US$ 800 - 1,000 MOQ: 5 Sets

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OCELL

Model Number:

24V series

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OCELL

Model Number 24V series

Composed Type Other, series and parallel

Type Li-Ion

Components Other, LIFEPO4

Size 260*158*246mm

Voltage 24V

Weight 16KG

Nominal Capacity 60AH

Application 24V power equipment,E-car e-scooter e-boat

lifepo4 24V 50Ah, Lithium ion 24V 60Ah for electric car , 24V lithium ion 50Ah,

60Ah lithium ion batteries

Features

1. Read the charge/discharge times which is useful for quality dispute

2. Re-adjust the major parameters according to different application

3. Read voltage, current of the cells in series

4. Read other information such as SOC, Temperature etc.

5. Know residual capacity simply by LED indicator

Specification

1	Rated Capacity	50Ah~ 60Ah	Standard discharge(0.2C)after standard charge(0.2C)
2	Minimal Capacity	50Ah/60ah
3	Nominal Voltage	25.6V
4	Cycle Life	Higher than 60% of the Initial Capacity of the battery pack	1)Charge: 0.2C CC to 29.2V, then CV till current to 0.05C 2)Rest: 30min. 3)Discharge: 0.2C to 20.0V 4)Carry out 1500cycles (Temperature:20±5°C)
5	Discharge cut-off voltage	18.4V	20.0V(recommended)
6	Charging cut-off voltage	31.2V	29.2V(recommended)
7	Cell and assembly method	IFR26650EC-3.3AH	8S18P
8	Packing material	ABS
9	Standard charge	0.2C constant current(CC) charge to 29.2V,then constant voltage (CC)29.2V charge till charge current decline to ≤0.05C
10	Standard discharge	Constant current 0.2C to 20.0V
11	Maximum Charge Current	30A	30A recommended for better peformance and longer life
12	Continuous Discharge Current	50A	Over current 50±2A (900ms~2000ms)
13	Operation Temperature Range	Charge: 0~45°C	60±25%R.H.
13	Operation Temperature Range	Discharge: -10~50°C	60±25%R.H.
14	Storage Temperature Range	Less than 1 year : 0~25°C	60±25%R.H. at the shipment state
14	Storage Temperature Range	Less than 3 months:-5~35°C	60±25%R.H. at the shipment state
15	Approx Weight	16Kg
16	Maximum Dimension	L260W158H246mm
