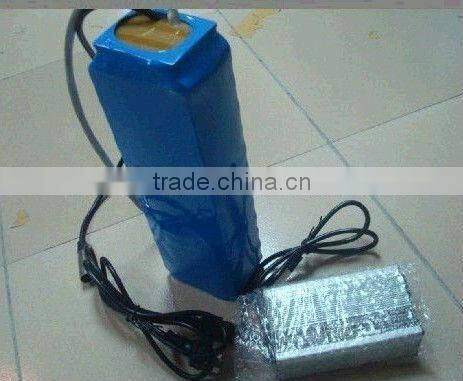

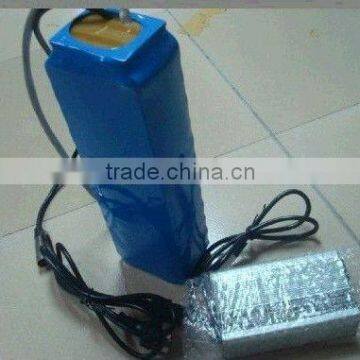

24V 10AH LiFePO4 Battery for Skateboard, Electric Bike

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Lithium Battery

Voltage:

Other, 24v

Capacity:

10Ah

Ocell New Energy Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN HK

Delivery Detail:

Delivery time depends on order quantity.

Type Lithium Battery

Voltage Other, 24v

Lithium battery 24V10AH, LiFePO4 battery pack
Application: golf battery, e-scooter,wheelchair
Weight: 4kg
Long lifecycle
Light weight

Fast delivery

best price

top class quality

Item		Specification
Nominal Voltage		24v
Nominal Capacity		10ah
Size		65150225mm
Weight		4000g
Composed Type		8S3P
Max Charge Voltage		29.2V
Cut-off Discharge Voltage		16V
Charging Current		0.5C
Charging Time		4-5H
Charge Method		CC-CV (constant current and contant voltage )
Max Discharge Current		3C
Recharge Cycle Life		2000times
Working Temperature	Charge	0~45°C,45~85%RH
	Dis-charge	-20~60°C,45~85%RH
StorageTemperature	One month	-20~60°C,45~85%RH
and Humidity	Three months	-20~45°C,45~85%RH
	One year	-20~25°C,45~85%RH
Protection Fuctions		Over charge, Over discharge, Over load, Short Circuit

The advantage of LiFePO4 battery:

Lead acid battery will be end of life in the near future; I add some information below for the advantage of LiFePO4 battery:

Smaller size, normally 1/3 as conventional SLA battery;

Lighter weight, normally 1/3 as conventional SLA battery;

Longer cycle-lifespan battery is about 300cycles while LiFePO4 battery can be 1200 cycles or more;

Good performance in deep discharge, LiFePO4 battery can be 100%DOD while SLA battery is 60%-80%DOD,

which means LiFePO4 battery will need less capacity in the same condition;

Totally environmental-friendly.

contact sales11 AT for more details.

Caution:

Don't immerse, throw, wet the battery in water/seawater
Battery must be charge with constant current-contant voltage(CC/CV).
Charge current must be controlled by specified value in cell specification,
Before using the battery, be sure to read the user’s manual and precaution of it’s handing.
