VC86 Digital Multimeter With Transistor Test

VC86 Digital Multimeter With Transistor Test photo-1
VC86 Digital Multimeter With Transistor Test photo-2
VC86 Digital Multimeter With Transistor Test photo-3
VC86 Digital Multimeter With Transistor Test photo-4
VC86 Digital Multimeter With Transistor Test photo-5
VC86 Digital Multimeter With Transistor Test photo-6
US$ 20 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
VICI
Model Number:
VC86
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name VICI
Model Number VC86
Measuring Current Range 2mA/20mA/200mA/20A
Measuring Voltage Range 200mV/2V/20V/200V/1000V
Measuring Resistance Range 20-200M Ohm
Measuring Capacitance Range 1000uF
Measuring Inductance Range 200mV/2V/20V/200V/1000V
Operating Temperature -40 ~1000℃
Dimensions 170*86*35mm
Product Description

VC86 3 1/2 digital auto range multimeter

1.New type holster, streamlined design, comfortable handle


2.Large LCD display makes reading clear;

3.Strong antimagnetic and anti-interferential performance;

4.Auto power off when there is no measurement in 15 minutes;

5.Full function protection;

6.Unit symbol display, easy to read;

7.Non-contact voltage detect (NCV) with visual and sound alarm;

8.Max value hold. Data hold.

Detailed Image
Techincal data
Basic function
Range
Accuracy
DCV
200mV/2V/20V/200V/1000V
±(0.5%+4)
ACV
200mV/2V/20V/200V/750V
±(0.8%+5)
DCA
200uA/2000uA/20mA/200mA /2A/20A
±(1.0%+5)
ACA
200uA/2000uA/20mA/200mA /2A/20A
±(1.5%+5)
Resistance
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
±(0.8%+1)
Temperature
(-40~ 1000)℃
±(0.8%+4)
(0~ 1832)℉
±(1.2%+4)
Special function
VC86
NCV
Diode and hFE test
Continuity alarm
Less than 50Ω±10Ω
Low battery indicator Approx.
less than 2.4 V
Backlight display, Data hold
Auto power off
 About 15 minutes
Function protection
Input impedance
10MΩ
Sampling rate
3 times/s
AC frequency response
40-400Hz
Operation method
Auto or manual range
Max display
1999
LCD size
54x30mm
Battery

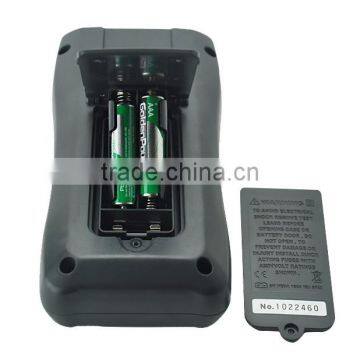

3V AAA×2
Power consumption
Quiescent current about 2mA
Packing

VC86 3 1/2 digital auto range multimeter

Meter color Body: dark grey; Holster: yellow
Meter weight: 290g(including battery)
Meter size: 170×86×35mm
Standard accessory: Test leads, battery, manual, TP01 temperature probe

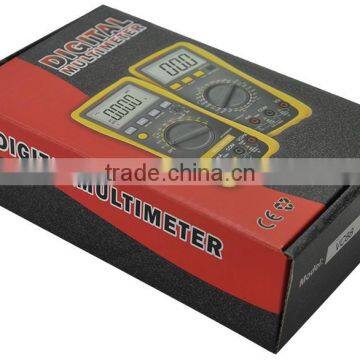

Standard packing: Gift box
QTY per carton :40pcs
Carton size: 38.5*30.5*46.5CM
G.W per carton: 17.6KG
