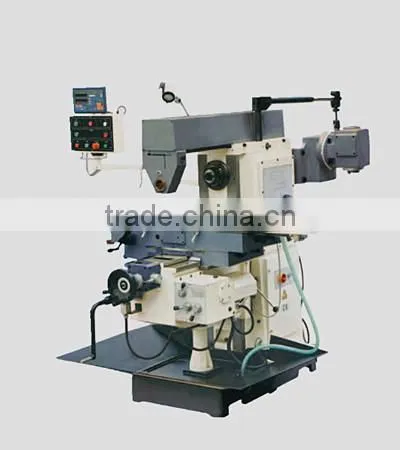

low price milling machine HML6036B
low price milling machine HML6036B
features:
Rectangle table guideway
Harded and groud table surface
Automatic feeds on X, Y axis
Motorized Z axis
Headstock siwel +/-45 degree
low price milling machine HML6036B
low price milling machine HML6036B
| Model | HML6036 | HML6036A | HML6036B | XW6136 | |
| Spindle taper | 7:24 ISO50 | ||||
| Distance from vertical spindle axis to column | 0-440mm | ||||
| Distance from Horizontal spindle nose to table | 175mm | ||||
| Range of spindle speed | 60-1700r.p.m(12 steps) |
58-1800rpm(12steps) | |||
| Table size | 1220 x 360mm | 1250 x 360mm | 1250 x 360mm | 1320 x 360mm | |
| Table travel | Longitudinal | 600mm | 600mm | 1000mm | 1000mm |
| Cross | 250mm | 320mm | 320mm | 300mm | |
| Vertical | 440mm | 400mm | 400mm | 400mm | |
| Range of longitudinal, cross travel |
27-720mm/min(8steps) (rapid)1080mm/min |
22-420/22-393mm/min | |||
| Z-speed of table | 590mm/min | 10-168mm/min | |||
| T-slot (number-width-distance) | 3-14-95 |
3-18-80mm |
3-14-95mm | ||
| Main motor | 4kw | ||||
| Motor for rapid device of table (X, Y) | 750W | ||||
| Motor for rapid device of table (Z) | - | 750W | |||
| Overall dimension | 1800*1790*1700mm | 1880*1700*1700mm | 2070*2050*1950mm | ||
| N.W./G.W. | 1850/2000kg | 2000/2150kg | 2200/2400kg | ||
