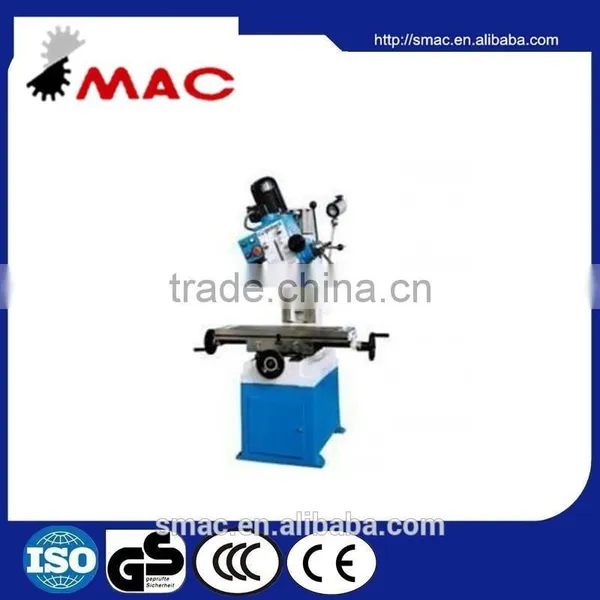

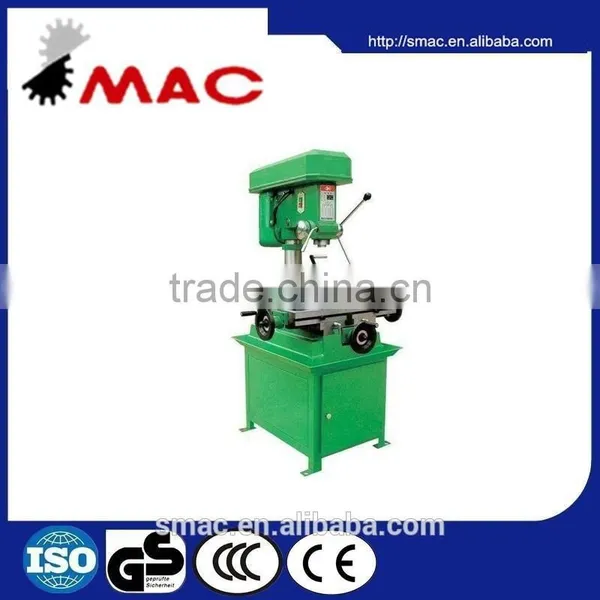

High Precision Low Cost Drilling and Milling Machine

Name: High Precision Low Cost Drilling and Milling Machine
Brand: SMAC
SKU: 143010104
Availability: InStock

SJR Machinery Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

Normal

Place of Origin:

Jiangsu, China

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Place of Origin Jiangsu, China

Brand Name SMAC

Model Number DML40F(50F/50FCF)/DMLTM-40(32)/DMLL-40(16)

Voltage 220/380V

Power(W) 0.37/0.85/1.1/1.5KW

Dimension(L*W*H) 680x580x1100/855x1120x1540/1000x850x1330/1100x970x1330(1650)mm

Weight 120~500KG

Certification ISO,CE

After-sales Service Provided Engineers available to service machinery overseas

Product Description

universal milling machine

1.STANDARD ACCESSORIES

face mill cutter with handle,drill chunk,taper shaft of drill chunk,4pcs internal six-side spanner,slanting block,sleeve or dull spanner

2.OPTIONAL ACCESSORIES

vice,mill chunk,digital indicator,work-table automatic feeder device,cooling system,CE standard scheme,support table

Date

universal milling machine

Specification	DML40F	DML50F/DML50CF	DMLTM-40	DMLTM-32	DMLL-40	DMLL-16
Max. drilling dia.	40	50	40	32	40	16
Max. horizontal milling dia.	100	100	100	100	100	40
Max. vertical milling dia.	25	25	20	12	20	8
Max. boring dia.	120	120	120	100	100	-
Max. tapping dia.	M16	M16	M16	M14	M16	-
Spindle taper	MT4/R8	ISO30/R8	MT4	MT4	MT4	MT2
Distance. spindle to table surface	-	38-430	190-590	190-590	0-440	80-380
Spindle speeds range	270-2400	230-1825	168-3160	168-3160	65-1400	250-3200
Spindle travel	120	120	120	120	120	85
Table size	800 x 240	800 x 240	800 x 240	680 x 220	800 x 240	420 x 160
Table travel	550x 230	400 x 230	400 x 250	340 x 180	400 x 250	250 x 120
Overall dimensions	1100 x 970 x 1330	1100 x 970 x 1650	1100 x 970 x 1330	1000 x 850 x 1330	855 x 1120 x 1540	680 x 580 x 1100
Motor	1.5	0.85/1.5	1.5	1.1	1.1	0.37
N.W/G.W (kg)	440/540	500/600	410/460	360/410	430/550	120/150
Old model	ZX40F	ZX50F/ZX50CF	ZXTM-40	ZXTM-32	ZXL-40	ZXL-16
