the Hot Sale and Low Cost Low Cost Drlling Machine RD8028 of China of SMAC

the Hot Sale and Low Cost Low Cost Drlling Machine RD8028 of China of SMAC thumbnail-1
the Hot Sale and Low Cost Low Cost Drlling Machine RD8028 of China of SMAC photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
SJR Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai.china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Place of Origin Jiangsu, China
Brand Name SMAC
Model Number RD8028
Voltage 380V
Power(W) 7.5kw
Dimension(L*W*H) 4080*1400*4025mm
Weight 11400kg
Certification CE;ISO





Product Description



low cost drlling machine RD8028

Specifications

1.multi-spindle drilling machine
2.flexible reliable
3.perfect feature
4.high precision
5. RD10031 raidal drilling machine



Product Descriptio

   The radical drilling machine  is suitable for high-speed steel, hard alloy and ceramic cutting tool,

machining inner and outer cylindrical surface, inner and outer conical surface, groove and plane of

ferrous metals, nonferrous metals and some non-metallic parts. It can meet different quantity

production requirements with high efficiency, stable and reliable precision.



Optimum design conforming to international standard.



Key precisely machined parts precision machining



Great Flexible radical drilling machine  with reliable and perfect feature



This radical drilling machine  has High precision; high strength.



This radical drilling machine  has Economical cutting and long life.



Drilling, counterboring, reaming, boring, spotting,tapping.



The radical drilling machine's heat treatment made by first-class equipment, ensuring durability.



The radical drilling machine's main parts and key part are made by high strength cast and special steel material.



The radical drilling machining is made by means of specialized equipment, to ensure basic parts with superior quality.



Clamping for assemblies and speed-change of spindle is achieved by hydraulic power, and is sensitive and reliable.



16 steps of spindle speed and feed brings about economic and high-efficiency cutting.



Mechanical and electrical controls are centralized on the headstock, with easy and rapid operation



Mew paining technology and improved outward appearance reflects the specialty of machines





Date



low cost drlling machine RD8028



Item unit RD10031 RD10028 RD10025 RD8031 RD8028 RD8025 RD8025 RD8020 RD8016 RD6325 RD6320 RD6316
max. drilling capacity mm F100 F80 F63
Distance between
spindle axis and column		 Max mm 3100 2800 2500 3100 2800 2500 2500 2000 1600 2550 2050 1650
Min mm 560 500 450
Horizontal travers of main spindle mm 2590 2000 1600
Distance b/w spindle
end to worksurface plate		 Max mm 2500 2000 1548 1600
Min mm 700 550 348 400
ARM lifting distance mm 1300 1000 800
lifting speed m/s 0.017 0.01
swivel angle ° 360° ±180°
Main
spindle		 Morse No.   MT6 MT5
Strokes mm 500 450 400
Speed scope rpm 0,200,160,125,100,80,63
,50,40,31.5,25,20,16,12.5,1
0,8		 1250,800,500,400,315,250
,200,160,125,100,80,63,50,
40,25,16		 1250,800,500,400,315,250
,200,160,125,100,80,63,50,
40,25,16		 1600,1000,630,500,400,31
5,250,200,160,125,100,80,
63,50,32,20
steps no. 22 16 16
Feeding scope mm/r 3.2/2/1.56/1.25/0.8/0.63/0.5
/0.32/0.25/0.2/0.16/0.13/0.1
/0.06		 3.2/2/1.25/1/0.8/0.63/0.5/0.
4/0.32/0.25/0.2/0.16/0.13/0.
1/0.06/0.04		 3.2/2/1.25/1/0.8/0.63/0.5/0.4/0.32/0.25/0.2/0.16/0.13/0.1/
0.06/0.04
steps   16 16
Drilling depth per scale mm 170 151 150.8
Max feeding force of main spindle N 50000 35000 25
Max torque of main spindle N.m 2500 1568 1000
Main motor power kw 15 7.5 5.5
Lifting motor power kw 3 3 1.5
Clamping motors to spindle * arm kw 0.75 0.75
Coolant pumpt motor power kw 0.09
Machine weight kg 20000 19000 18000 11800 11400 11000 7400 7000 6700 7400 7000 6700
Overall size mm 4530/4250/3850x1630x4795 4380/4080/3780x1400x4025 3610,3110,2710x1250x3437
Column diameter mm F600 F600 F450 (550kg)
Working
table		 Size mm 1250 x 800 x 560 1000x800x560 950x630x500(43kg)
T slot (W x T) mm up 28 x 26, down 50 x 51 up 22 x 23 , down 36 x 39 up 22 x 23 , down 36 x 44
T slot (W x T) mm up 28 x 26, down 46 x 48 up 28 x 26, down 46 x 48 up 28 x 26, down 50 x 51
Base
plate		 Size mm 4280 x 1630 x 330 3530 x 1400 x 300 2900 x 1250 x 250(2330kg)
Operation area mm 3640 x 1600 2890 x 1370 2145 x 1250

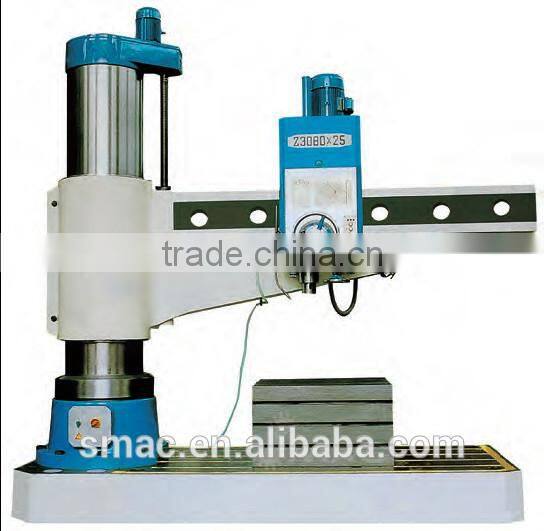

product show

low cost drlling machine RD8028

the hot sale and low cost low cost drlling machine RD8028 of china of SMAC

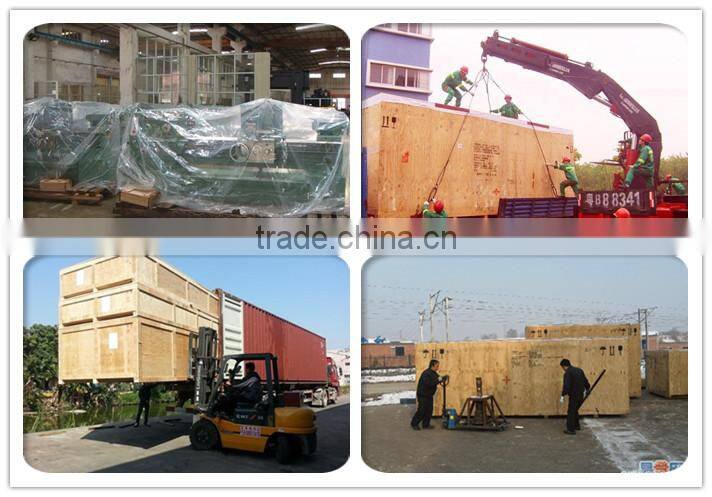

packing show

the hot sale and low cost low cost drlling machine RD8028 of china of SMAC



our team

the hot sale and low cost low cost drlling machine RD8028 of china of SMAC

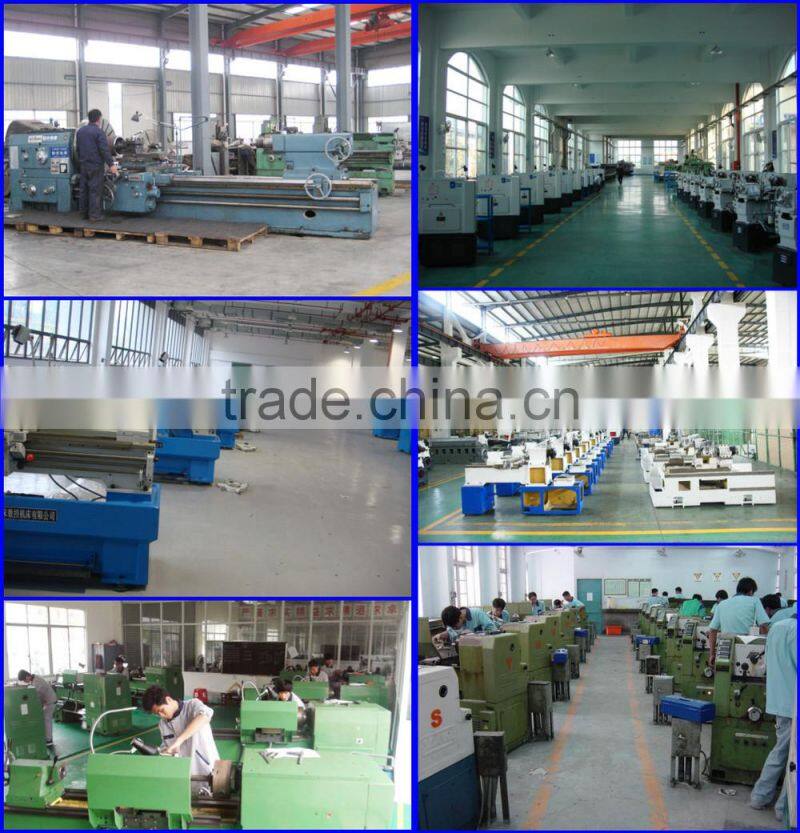

our factory

the hot sale and low cost low cost drlling machine RD8028 of china of SMAC



Our Services

Our service:

1,Your inquiry will be replied in 24 hours.

2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6

    years.And there is more industry technology experience for 20 years with our manufactures

3.To offer free spare parts and service within one year of warranty

4.Technology Support Provide operation video for training

5.Professional after-sales service team

6.Give reasonable offers with the best quality







Company Information

Welcome to SJR Machinery Limited

We are looking forward to bulding sincere and long-term business relationship with you

BEST QUALITY  GOODS   ******  LOWEST PRICE     ******    PERFECT SERVICE

the hot sale and low cost low cost drlling machine RD8028 of china of SMACthe hot sale and low cost low cost drlling machine RD8028 of china of SMAC

Our products are exported to more than 50 countries, more than 700 customers
the hot sale and low cost low cost drlling machine RD8028 of china of SMAC
