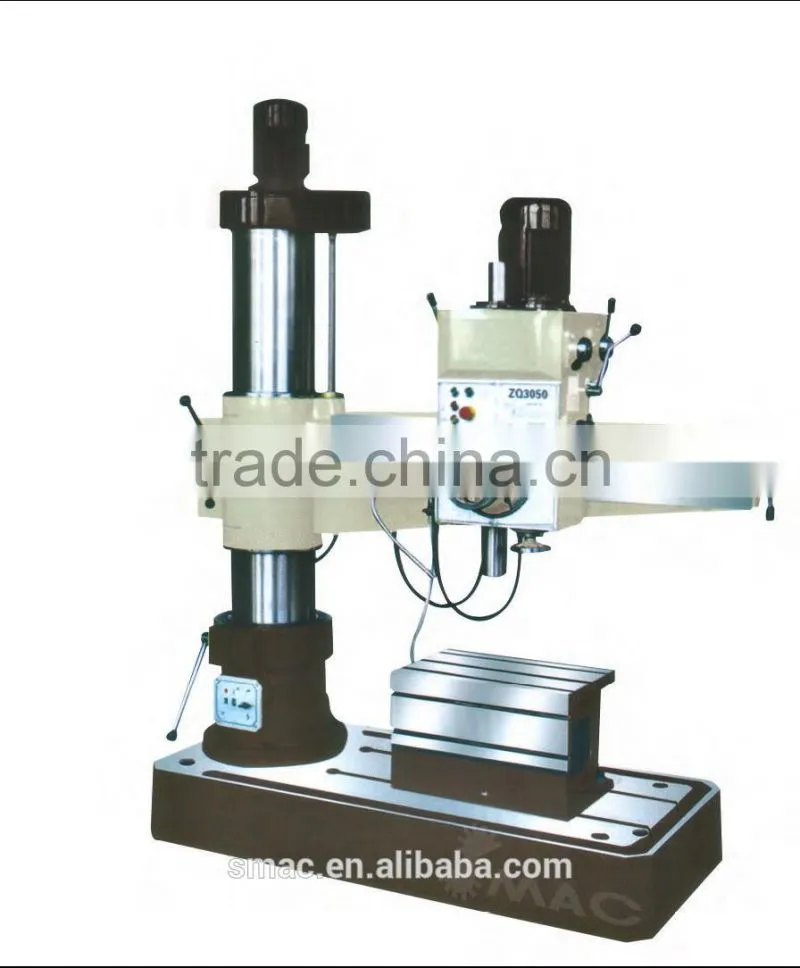

the Hot Sale and Low Cost High Speed Drilling Machine ZQ3050*13 of China of SMAC
high speed drilling machine ZQ3050*13
high speed drilling machine ZQ3050*13
Specifications
1. Hydraulic clamping.
2. Hydraulic transmission.
3. Hydraulic preselection.
4. Electrical machinery double protection
Product Descriptio
With antisticlooking and its general arrangement is very harmonized.
With mechanical gear change, convenient to operate.
With comatic automatic ascent and descent cranking bar and production efficciency is high With confident construction, high precision and durable in use.
high speed drilling machine ZQ3050*13
| SpecificationModel | 15170 | 15171 | 15172 | 15173 | 15174 | 15175 |
| Z3032 x 9 Z3032 x 10 | ZQ3035 x 10 | ZQ3040 x 10 | ZQ3040 x 13 | ZQ3050 x 13 | ZQ3050 x 16 | |
| Max. drilling dia. (mm) | 32 | 35 | 40, 35 | 40, 35 | 50 | 50 |
| Spindle taper | MT4 | MT4 | MT4 | MT4 | 5# | 5# |
| Spindle speeds/steps | 108-1000/6 | 75-1200/6 | 75-1220 | 75-1220 | 80, 135, 240, 350 ,590, 1100 | |
| Distance from spindle center to column surface (mm) | 780-220 | 1000-300 | 1000-300 | 1300-300 | 1300-360 | 1600-360 |
| Distance from spindle center to table surface (mm) | 980-220 | 1000-260 | 1000-260 | 1000-260 | 1050-260 | 1050-260 |
| Spindle travel (mm) | 120 | 180 | 200 | 200 | 200 | 200 |
| Range of spindle feeds (mm) | Optional | 0.10-0.32 | 0.10-0.32 | 0.10-0.32 | 0.10-0.32 | 0.10-0.32 |
| Overall dimensions (mm) | 1320 x 600 x 1900 | 1450 x 700 x 2050 | 1500 x 705 x 2020 | 1700 x 705 x 2120 | 1950 x 810 x 2450 | 2170 x 950 x 2450 |
| Motor (kw) | 0.85/1.5 | 1.1/2.2 | 2.2/0.75 | 2.2/1.1 | 4/1.5 | 4/1.5 |
| N.W. (kg) | 800 | 1100 | 1530 | 2200 | 2700 | 320 |
high speed drilling machine ZQ3050*13
