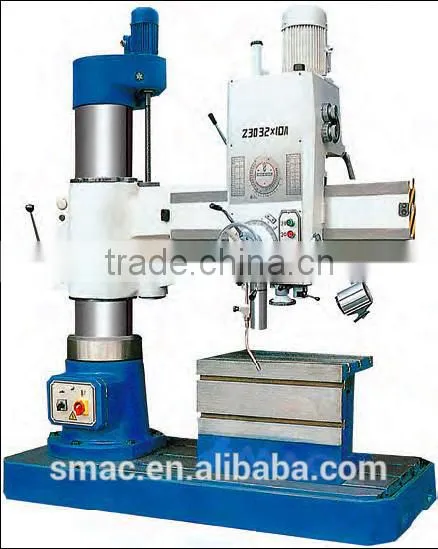

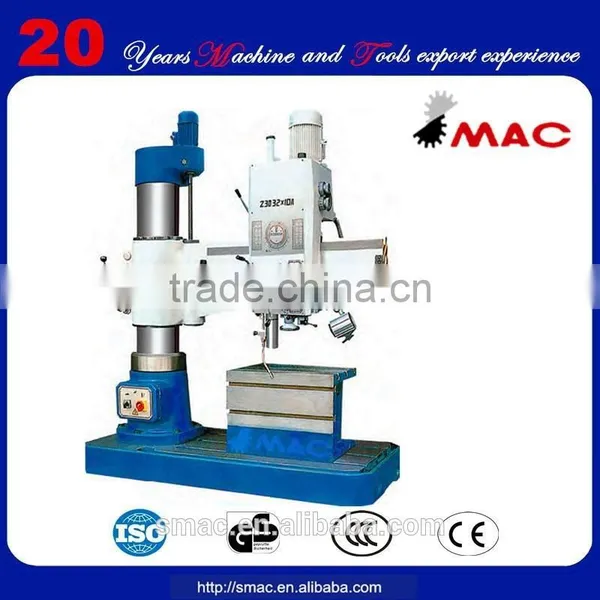

high speed radial drilling machine for sale RD3213
Standard Accessories
Box shape worktable
Taper sleeve
Tool releasing Wrench
Drift
Eyelet bolts
Optional Accessories
Quick instead chuck
Tapping chuck
Grease gun
Foot stand (RD3207)
high speed radial drilling machine for sale RD3213
| Model | RD3213 | RD3210 RD4010 | RD3209 | RD3208 RD4008 | RD3207 RD3207P |
| Max. Drilling capacity (mm) | 32 | 32/40 | 32 | 32/40 | 32 |
| Distance Spindle axis to column generating line (mm) | 200-1300 | 300-1000 | 260-900 | 320-820 | 300-700 |
| Diameter of column (mm) | 240 | 220 | 200 | 150 | |
| Spindle taper (mm) | MT4 | MT4 | MT4 | MT4 | MT3 |
| Spindle travel (mm) | 250 | 280 | 210 | 210 | 150 |
| Spindel speeds range (mm) | 71-1800 | 32-2500 | 75-1250 | 75-1220 | 100-1600 |
| Spindle speeds series | 8 | 16 | 6 | 6 | 8 |
| Range of Spindle feeds (mm/r) | 0.13-0.54 | 0.10-1.25 | 0.05-0.16 | 0.1-0.25 | 0.08, 0.14, 0.23 |
| Spindle feed | 4 | 8 | 3 | 3 | 360 |
| Max. Distance nose to working surface of base (mm) | 264-1064 | 220-1000 | 250-1100 | 320-900 | 275-680 |
| Dimension of worktable (mm) | 600x450x450 | 400x400x350 | 400x400x350 | 250x250x250 | |
| Dimension of base (mm) | 1710x800x160 | 1500x700x160 | 1370x700x160 | 1050x550x120 1200x325x155 | |
| Overall Size (cm) | 204x75x236 | 176x80x205 | 150x70x210 | 140x72x188 | 123x55x120 123x62x123 |
| Power of main motor (W) | 2.2 | 2.2 | 1.5 | 1.5 | 0.75 |
| G.W/N.W | 2100/1600 | 2100/1600 | 1380/1250 | 1425/1200 | 475-380 |
| Packing dimension (cm) | 187x97x220 | 187x97x220 | 160x75x220 | 155x77x210 | 123x62x134 |
high speed radial drilling machine for sale RD3213
