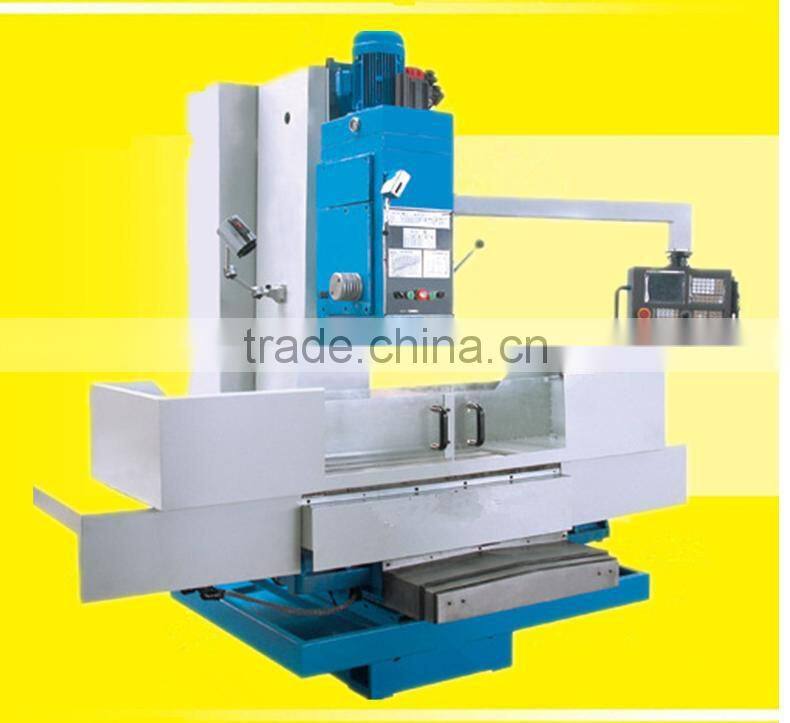

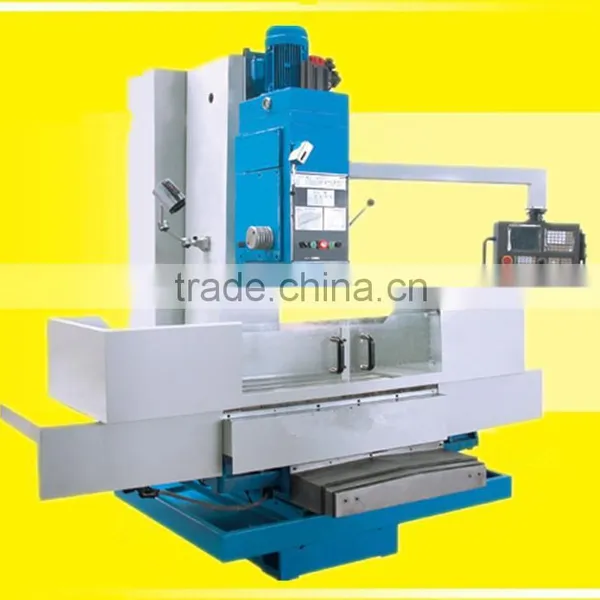

Cnc Drill Machine///drill Machine///CNC Drilling Machine
US$ 15,000 - 17,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
(glass Drilling Machine)glass Drill Machine/drilling MachineUS$ 10,000 - 15,000MOQ: 1 Set -
High Precision Low Cost Drilling and Milling MachineNegotiableMOQ: 1 Set
-
Drill Bit Grinder 26A/DNegotiableMOQ: 1
-
the Hot Sale and Low Cost High Speed Drilling Machine ZQ3050*13 of China of SMACNegotiableMOQ: 1 Set
-
the Hot Sale and Low Cost Low Cost Drlling Machine RD8028 of China of SMACNegotiableMOQ: 1 Set
Condition
New
CNC or Not
CNC
Place of Origin
Jiangsu, China
Brand Name
SMAC
Specifications
it is good quality anreasonable in price
Table size:1000*545mm
area of worktable:850*400mm
max drilling dia:φ40
T-slot width*quantity:18*3
Spindle hole taper:Morse4#
Spindle speeds:31.5-1400/12r/min
Power of spindle motor:3kw
Travel (X Y Z):850*400*240mm
Distance from spindle nose to worktable:100-700mm
Distance from spindle center line to column:335mm
Rapid travel rate X/Y/Z:15/15/1.1
CNC system:KND
Max torque of spindle:350N.m
Max feed resistance:10000n
Positioning accuracy:±0.02mm
Repeatabiluy accuracy:±0.01mm
area of worktable:850*400mm
max drilling dia:φ40
T-slot width*quantity:18*3
Spindle hole taper:Morse4#
Spindle speeds:31.5-1400/12r/min
Power of spindle motor:3kw
Travel (X Y Z):850*400*240mm
Distance from spindle nose to worktable:100-700mm
Distance from spindle center line to column:335mm
Rapid travel rate X/Y/Z:15/15/1.1
CNC system:KND
Max torque of spindle:350N.m
Max feed resistance:10000n
Positioning accuracy:±0.02mm
Repeatabiluy accuracy:±0.01mm
