Drilling & Milling Machine/drilling Machine/milling Machine/driller

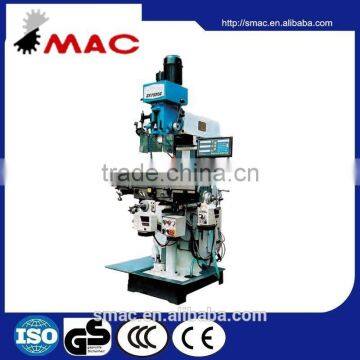

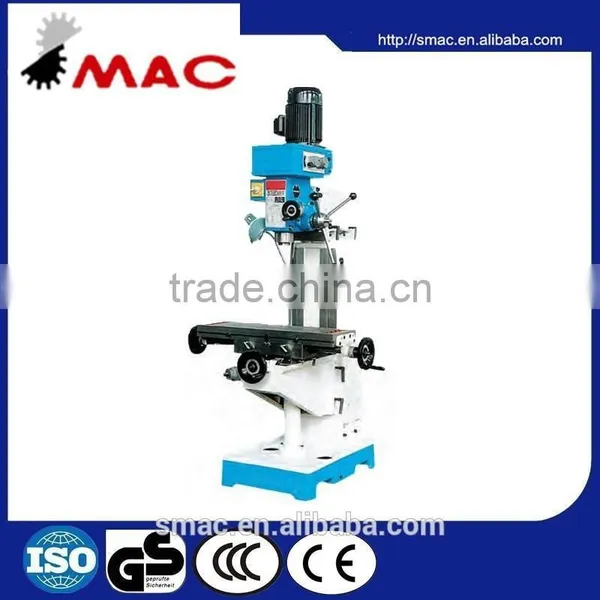

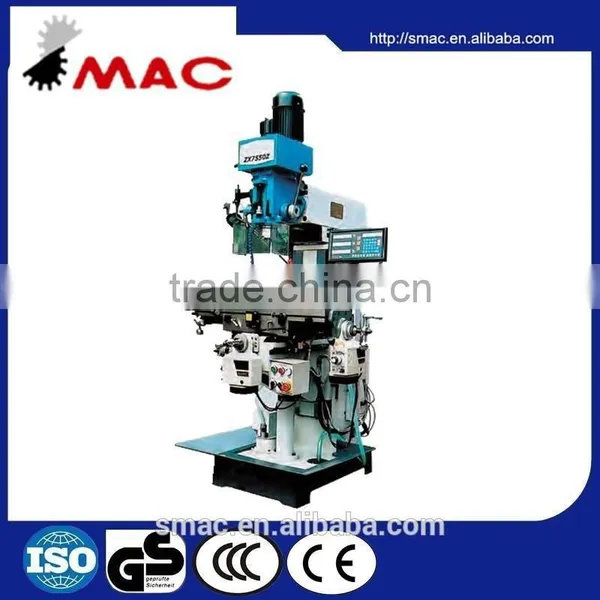

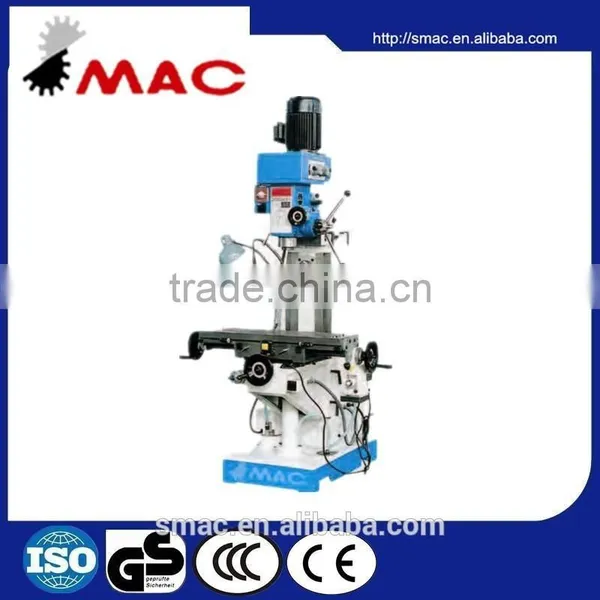

Drilling & Milling Machine/drilling Machine/milling Machine/driller photo-1
Drilling & Milling Machine/drilling Machine/milling Machine/driller photo-2
Drilling & Milling Machine/drilling Machine/milling Machine/driller photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
CNC or Not Normal
Place of Origin Jiangsu, China
Brand Name SMAC
Model Number DML7550
Voltage 220/380V
Power(W) 1.5/2.2KW
Dimension(L*W*H) 1100x1100x2080/1185x950x1995mm
Weight 610~900KG
Certification ISO,CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

drilling cum milling machine



Milling, drilling, tapping, boring, reaming



Head swivels or tilts



Micro feed precision



Heavy-duty tapered roller bearing spindle



Positive spindle lock



Adjustable gibs on table



Geared drive lower noise



Accurate position, strong rigidity, strong cutting power





1.STANDARD ACCESSORIES



face mill cutter with handle,drill chunk,taper shaft of drill chunk,4pcs internal six-side spanner,slanting block,sleeve or dull spanner



2.OPTIONAL ACCESSORIES



vice,mill chunk,digital indicator,work-table automatic feeder device,cooling system,CE standard scheme,support



table

Date

drilling cum milling machine

Specification
DML7550
DML7550C
DML7550W
DML7550CW/DMLX7550CW
DML7550Z
Max. drilling dia.
50
 50
50
50
50
Max. horizontal milling dia.
100
100
100
100
-
Max. vertical milling dia.
25
25
25
25
25
Max. boring dia.
120
120
120
120
-
Max. tapping dia.
M16
 CM16
M16
M16
Φ12 drilling cast
Distance. spindle to table surface
90-490
90-490
90-490
90-490
20-500
Spindle speeds range
230-1825
115-1750
V230-1825/60-1350H
V230-1750/60-1350H
65-1500
Spindle travel
120
120
120
120
120
Table size
800 x 240
800 x 240
800 x 240
800 x 240
800 x 240
Table travel
400 x 230
400 x 230
400 x 230
 400 x 230
400 x 230
Overall dimensions
1100 x 1100 x 2080
1100 x 1100 x 2080
1100 x 1100 x 2080
1100 x 1100 x 2080
85 x 950 x 1995
Motor
0.85/1.5
0.85/1.5
V0.85/1.5,2.2H
V0.85/1.5,2.2H
1.5
N.W/G.W.
610/770
700/850
850/1000
900/1050
750/900



product show

drilling cum milling machine

our team



our factory



Our Services

Our service:

1,Your inquiry will be replied in 24 hours.

2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6

    years.And there is more industry technology experience for 20 years with our manufactures

3.To offer free spare parts and service within one year of warranty

4.Technology Support Provide operation video for training

5.Professional after-sales service team

6.Give reasonable offers with the best quality

Our advantage:

1,More then 20 years experience for indusry product

2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved

3,Professional service and technology

4,Excellent reputation all over the world

5,Final exported producuts would pass strict test by international authority BIVAC

6, There is more exporting experience for 20years with our owned manufacture/company
