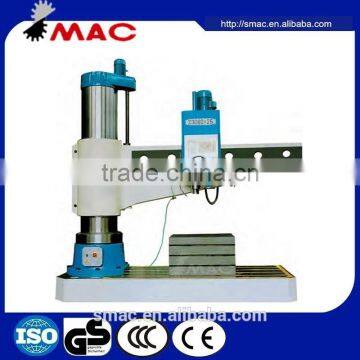

Z3063 radial drilling machine/drilling machine/drill.
MAX. DRILLING DIAMETER: 80MM, MAX DISTANCE BETWEEN SPINDLE AIS AND COLUMN: 2500MM,
SPINDLE TRAVEL:450MM, NO. OF SPINDLE SPEEDS:16, RANGE OF SPINDLE SPEEDS:16-1250,
POWER OF MAIN DRIVE MOTOR:7.5KW,
| 15106-1 | 15106-2 | 15106-3 | ||
| Model | Z3063x16 | Z3063x 20A | Z3063x25 | |
| Max. drilling diameter | 63 | |||
| Distance between spindle ais and column | Max | 1650 | 2050 | 2550 |
| Min | 450 | |||
| Distance between Spindle end and working surface of base plate | Max | 1650 | 2050 | 2550 |
| Min | 400 | |||
| Taper in spindle (Morse) | No.5 | |||
| Spindle travel | 400 | |||
| Number of spindle speeds | 16 | |||
| Range of spindle speeds | 20-1600 | |||
| Number of spindle feeds | 16 | |||
| Range of spindle feeds | 0.04-3.2 | |||
| Power of main drive motor | 5.5 | |||
| Voltage | 380, 440/220, 420 | |||
| Frequency | 50, 60 | |||
| Weight | N.W | 6700 | 12400 | 12800 |
| G.W | 7700 | 13500 | 14000 | |
| Overall dimensions (Lx Wx H) | 290x125x344 | 311x1125x344 | 361x125x344 | |
| Dimesions | (Lx Wx H) | (316) 356 (406 ) x151x 328 | ||
| (307) 347 (4397 ) x147 x 318 | ||||
Our service:
1,Your inquiry will be replied in 24 hours.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
