drilling & milling machine of china of smac
Negotiable
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- shanghai port
- T/T D/P D/A
You May Like
-
Vertical Facing And Centering Machine VZ820550
-
CNC Cylindrical Grinding Machine MA2060/MP2060
-
Inner Race Milling Machine QYXB125
-
grey color interlocking kelly bar, drill pipe for Bauer Sany Soilmec XCMG Casagrande
-
Friction kelly bar,yellow color kelly bar for rotary Bauer Sany Soilmec XCMG Casagrande
-
new design friction kelly bar, Rotary drill pipe for Bauer Sany Soilmec XCMG Casagrande
Product Details
| Condition: | New | CNC or Not: | Normal | Place of Origin: | Jiangsu, China |
| Brand Name: | SMAC | Model Number: | DMC7020(7032/7040/7045) /DMC7020G(7032G/FG/7040G/FG/7045G/FG) | Voltage: | 220/380V |
| Power(W): | 0.55/0.75/1.1/1.5KW | Dimension(L*W*H): | 880/1030x770/832x1140mm | Weight: | 270~325KG |
| Certification: | ISO,CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
horizontal milling machine
Features:
| 1 | Standard Accessories | Optional Accessories |
| 2 | Allen wrenches 3,4,5,6mm | Machine stand |
| 3 | Wedge | Power feed attachment |
| 4 | Wrench | Paraller vice |
| 5 | Drill stock | Drill chuck |
| 6 | Screw driver 6" | Milling chuck |
| 7 | Drawbar washer | Change sleeve |
| 8 | Milling chuck | |
| 9 | Boring bar | |
| 10 | Auto-tapping electrical system |
Data
horizontal milling machine
odel | ZAY7045 ZAY7045G ZAY7045G | ZAY7040 ZAY7040G ZAY7040FG | ZAY7032 ZAY7032G ZAY7032FG | ZAY7020 ZAY7020G | |
Drilling capacity | 45mm | 40mm | 32mm | 20mm | |
Face milling capacity | 80mm | 80mm | 63mm | 63mm | |
End milling capacity | 32mm | 32mm | 20mm | 14mm,20mm | |
Distance from spindle nose to table | 450mm, 680mm | 450mm, 680mm,440mm | 450mm, 680mm,440mm | 382mm,350mm | |
Min. distance from spindle axis to column | 193.5mm,272.5mm,260mm | 193.5mm,272.5mm,260mm | 193.5mm,272.5mm,260mm | 202mm,175mm | |
Spindle travel | 130mm | 130mm | 130mm | 120mm,130mm | |
Spindle taper | M.T.4 or R8 | M.T.4 or R8 | M.T.3 or R8,M.T.4 or R8 | M.T.3 | |
Step of spindle | 12,6 | 12,6 | 12,6 | 12,6 | |
Range of spindle speed | 50Hz | 80-2080,80-1250r.p.m. | 80-2080,80-1250r.p.m. | 80-2080,80-1250r.p.m. | 80-2080,80-1250r.p.m. |
60Hz | 100-2500,95-1500r.p.m. | 100-2500,95-1500r.p.m. | 100-2500,95-1500r.p.m. | 100-2500,95-1500r.p.m. | |
Swing diameter of headstock | 405mm,680mm, | 405mm,680mm | 405mm,680mm | 405mm,680mm | |
Swivel angle of headstock | horizontally | 3600 | 3600 | 3600 | 3600 |
perpendicularly | +900 | +900 | +900 | +900 | |
Size of table | 800 x 240mm2, 700x 240mm2 | 800 x 240mm2, 700x 240mm2 | 800 x 240mm2, 700x 240mm2 | 585 x 190mm2 | |
Forward and backward travel of table | 175mm | 175mm | 175mm | 150mm | |
Left and right travel of table | 500mm, 400mm | 500mm, 400mm | 500mm, 400mm | 380mm | |
Power | 1.5kw (2Hp) | 1.1kw (2Hp),1.1kw(0.75Hp) | 0.75kw (1Hp) | 0.75kw (1Hp),0.55kw (1Hp) | |
Voltage/Fequency | As custmers requirement | As custmers requirement | As custmers requirement | As custmers requirement | |
Overall height (Without stand) | 1060mm; 1300mm;1020mm | 1060mm; 1300mm;1020mm | 1060mm; 1300mm;1020mm | 1060mm; 1300mm | |
Net weight | 285kg,320kg,325kg | 283kg,318kg,323kg | 280kg,315kg,323kg | 270kg,300kg | |
Gross weight | 335kg,370kg,375kg | 333kg,368kg,373kg | 330kg,365kg,370kg | 330kg,350kg | |
880 x 770 x 1140mm3 | 880 x 770 x 1140mm3 | 880 x 770 x 1140mm3 | 880 x 770 x 1140mm3 | ||
Packing size | 880 x 832 x 1140mm3 | 1030 x 770 x 1140mm3 | 880 x 832 x 1140mm3 | ||
1030 x 832 x 1140mm3 | 1030 x 832 x 1140mm3 | 1030 x 832 x 1140mm3 | |||
Loading amount (overall height) | 36pcs/20container 18pcs/20container 28pcs/20container | 36pcs/20container 18pcs/20container 28pcs/20container | 36pcs/20container 18pcs/20container 28pcs/20container | 36pcs/20container 18pcs/20container | |

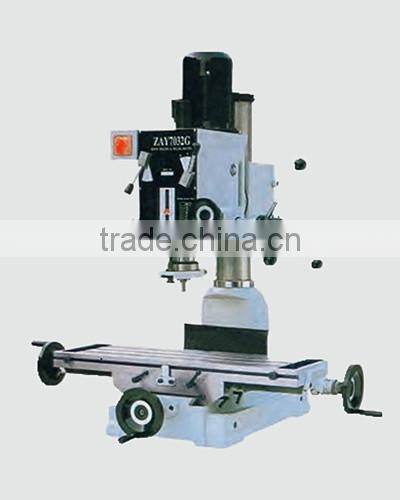

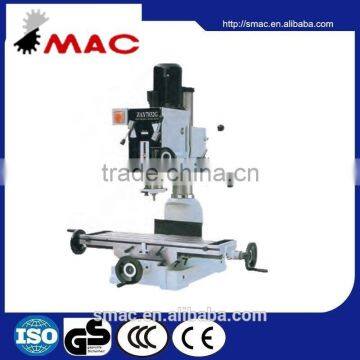

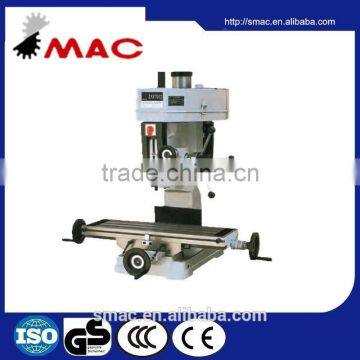

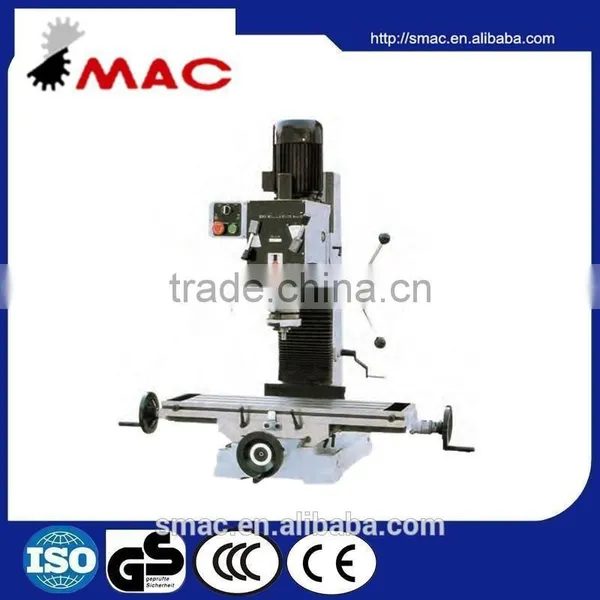

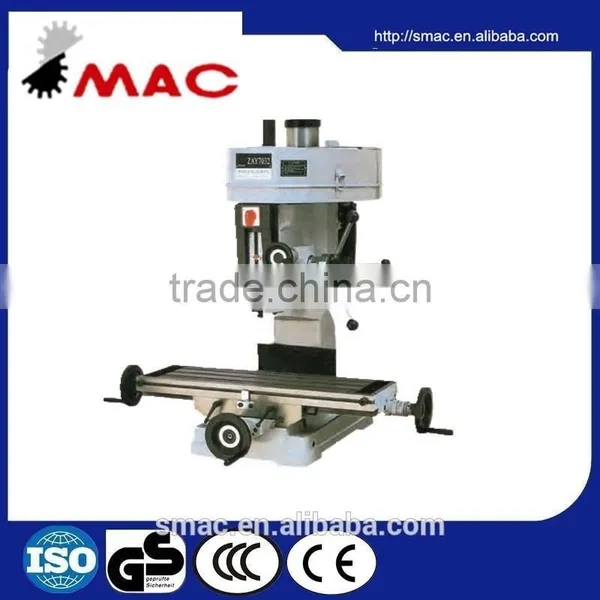

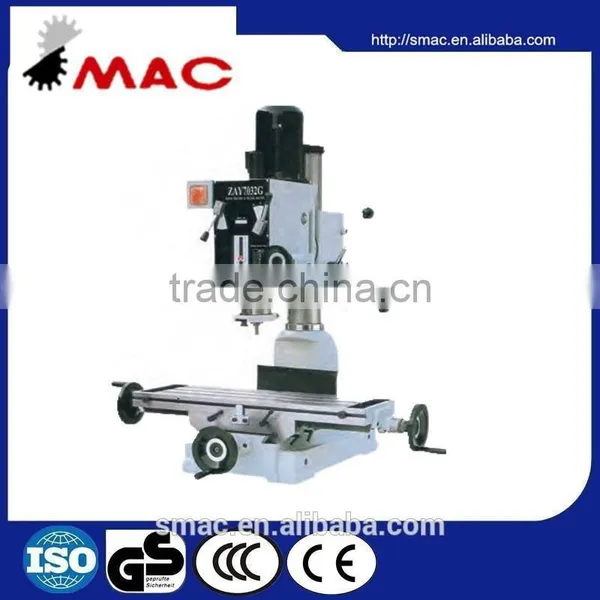

product show
horizontal milling machine
our team
our factory
packing show
Company Information
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
