Vertical Boring Machine/borer/boring Machine/boring Lathe

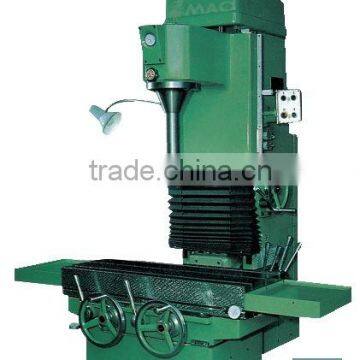

Vertical Boring Machine/borer/boring Machine/boring Lathe thumbnail-1

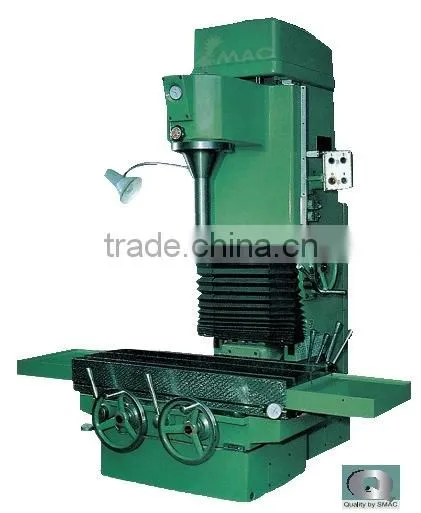

Vertical Boring Machine/borer/boring Machine/boring Lathe photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
SJR Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Place of Origin Jiangsu, China
Brand Name SMAC

Specifications

Vertical Boring Machine/borer/boring machine/boring lathe
Features
The table longitudinally and latitudinally moving device.

*Vertical Boring Machine/borer/boring machine/boring lathe



Vertical fine boring machine is mainl used to bore high accurate holes of cylinder and engine sleeve and other accurate holes.


Features:
The table longitudinally and latitudinally moving device.
The working fast centering device.
Boring measuring device.
Also provides optional digital read out for the tables moving.

1. Universal spindle
2. Boring spindle   110
3. Boring spindle 75
4. Boring spindle 56
5. Boring spindle 45
6. Tool Box
7. V-type cylinder fixture
8. Quick cylinder fixture
9. Boring measuring device
10. Boring spindle 150
11. Universal boring & milling head


Model

14501
14502
14503
14504
14505
Specification


T7220B
T7210A
T716A
T7240D
T7220C T220D
Max. boring dia.

mm
200
100
165
400
200
Max. boring depth

mm
500
325
410
630
500
Spindle speed steps


9
9
9
8
250
Spindle speed range

mm/rev
53-840
65-100
190-600
70-800
53-840
Spindle feed steps

mm
4
4
4
4
9
Spindle feed range

mm
0.05-0.20
0.05-0.20
0.05-0.20
0.05-0.20
0.05-0.20
Spindle travel

mm
710
410
550
850
710
Distance from spindle certerline to the vertical side on the slide
mm
315
390
315
450
315
Table dimension
mm
500 x 1250
400 x 1000
500 x 1200
630 x 1600
500 x 1250
Longitudinal travel
mm
900
650
700
1200
100
Cross travel
mm
100
100

100
160
Maching accuracy Accuracy

IT7
IT7
IT7
IT7
IT7 IT8
Roundness
mm
0.0025
0.002
0.0025
0.005
0.005
Cylindricity
mm
0.01/300
0.01/300
0.01/300
0.015/300
0.01/300
Surface roughness
mm
Ra0.8
Ra0.8
Ra0.8
Ra1.6
Ra0.8
Overall dimensions
mm
1580x1250x2340
1700x1550x1900
1860x1500x2230
2500x2352x3015
1588x2610x2350
N.W/G.W.
kg
3300/3800
2000/2500
2500/3000
6500/8500
3500
