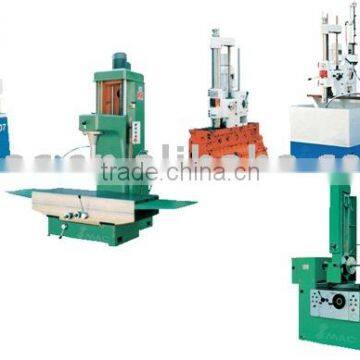

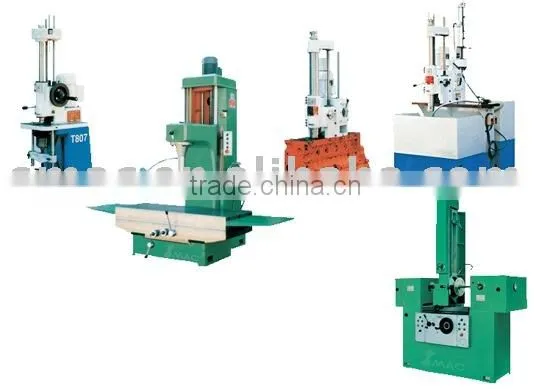

Cylinder Boring Machine/borer/horizontal Boring Machine/boring Lathe
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Display Floor Type Milling and Boring MachineUS$ 1,000 - 10,000MOQ: 1 Set -
FLOOR TYPE BORING AND MILLING MACHINEUS$ 1,000 - 10,000MOQ: 1 Set
-
Cylinder Boring & Surface Gringding-milling Machine/borer/boring Machine/boring LatheNegotiableMOQ: 1 Set
-
Boring MachineNegotiableMOQ: 1 Set
-
Boring MachineNegotiableMOQ: 1 Set
Condition
New
CNC or Not
Normal
Place of Origin
Jiangsu, China
Brand Name
SMAC
Model Number
T806
Specifications
Cylinder Boring Machine/borer/horizontal boring machine/boring lathe*Cylinder Boring Machine/borer/horizontal boring machine/boring lathe*
Model | Unit | 14401 | 14402 | 14403 | 14404 | 14405 | 14406 | 14407 | |
T806 | T807 | T808A | T8014A | T8016A | T8018 | T8010-M T8014-M | |||
Boring diameter | mm | 39-60 | 39-770 | 50-985 | 65-140 | 85-165 | 30-180 | 60-100 | 80-140 |
Boring depth | mm | 160 | 160 | 170 | 300 | 400 | 450 | 300 | |
Motor | kw | 0.25 | 0.55 | 0.25 | 0.37 | 0.37 | 3 | 1.35 | |
Overall size | cm | 33 x 44 x 108 | 50 x 48 x 150 | 35 x 27 x 73 | 33 x 33 x 85 | 36 x 34 x 110 | 200 x 135 x 192 | 87 x 74 x 166 | |
Weight | kg | 80 | 100 | 73 | 62 | 85 | 2000 | 560 | |
Con-Rod Boring (Grinding) Machine
Specification | Model | Unit | 14408 | 14409 | 14410 | 14411 |
T8210 | T8210 | T8216 | T8225 | |||
Boring diameter | mm | Φ16-Φ100 | Φ20-Φ100 | Φ20-Φ160 | Φ30-Φ250 | |
Grinding diameter | mm | - | - | 30-160 | 50-250 | |
Table longitudia travel | mm | 220 | 300 | 450 | 450 | |
Motor | kw | 0.55 | 2 x 0.55 | 0.55/0.55/.055 | ||
Overall size | cm | 124 x 50 x 167 | 141x 77 x 123 | 170 x 130 x 180 | ||
Weight | kg | 600 | 1200 | 1400 | 1600 | |
