Specifications

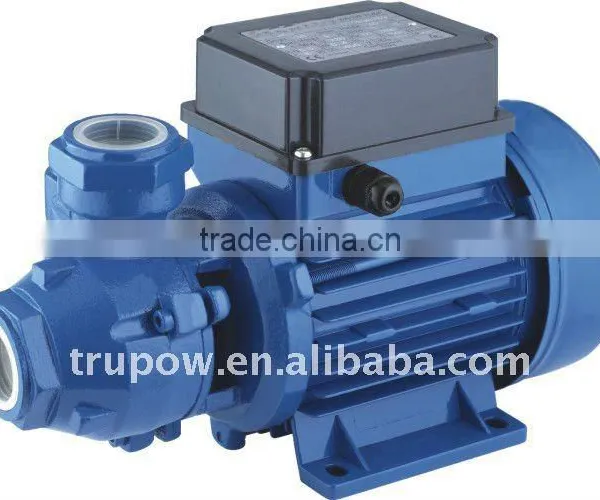

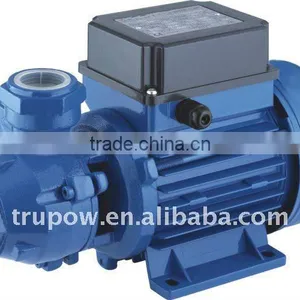

Peripheral Pump1. Pump body: Cast Iron
2. Motor Support: Cast Iron
3. Impeller: Brass
Peripheral Pump Specification:
Operating conditions:
1. Liquid temperature up to 60ìC
2. Ambient temperature up to 40ìC
3. Total suction lift up to 8m
4. Continuous duty
Motor
1. Two-Pole induction motor(n=2900r. P. M. )
2. Insulation Class B/F
3. Protection IP44
Material
1. Pump body: Cast Iron/Brass insert
2. Motor Support: Cast Iron
3. Impeller: Brass
4. Shaft with rotor: Hi-Cr plated 45# Steel/Stainless Steel
5. Mechanical seal: Carbon/Ceramic
Application:
-Volumetric water pumps able to offer high pressures in relation to comparatively low powers and which have particularly steady operating curves.
-They are qualified in domestic fittings, to in crease the system pressure in aqueducts and for automatic water distribution by small autoclave tanks or by hydrosphere units.
-For the correct functioning of the pump, use clean water, or non-aggressive liquids only, without sand or other solid impurities.
Model |
Power |
Max. Flow
(L/min)
|
Max.Head
(m)
|
Max.Suct.
(m)
|
Inlet/Outlet
(inch)
|
G.W./N/W.(KG) |
Packing size
(mm)
|
QTY/20”CTR
(pc)
|
|
KW |
HP |
||||||||
KF0 |
0.37 |
0.50 |
35 |
30 |
8 |
1”X1” |
6.5/5.4 |
280x145x178 |
3300 |
Send Inquiry to This Supplier
