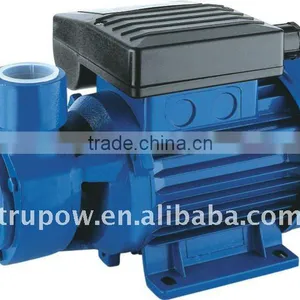

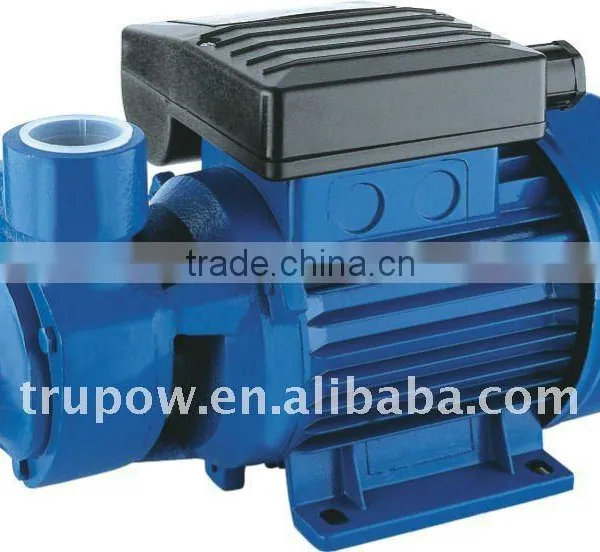

Help CenterPeripheral Pump
Related Products
Specifications
Peripheral Pump1.Pump body: Cast Iron
2.Motor Support: Cast Iron
3. Impeller: Brass
Peripheral Pump Technical Description:
Operating conditions:
1. Liquid temperature up to 60ìC
2. Ambient temperature up to 40ìC
3. Total suction lift up to 8m
4. Continuous duty
Motor
1. Two-Pole induction motor(n=2900r. P. M. )
2. Insulation Class B/F
3. Protection IP44
Material
1. Pump body: Cast Iron/Brass insert
2. Motor Support: Cast Iron
3. Impeller: Brass
4. Shaft with rotor: Hi-Cr plated 45# Steel/Stainless Steel
5. Mechanical seal: Carbon/Ceramic
Application:
-Volumetric water pumps able to offer high pressures in relation to comparatively low powers and which have particularly steady operating curves.
-They are qualified in domestic fittings, to in crease the system pressure in aqueducts and for automatic water distribution by small autoclave tanks or by hydrosphere units.
-For the correct functioning of the pump, use clean water, or non-aggressive liquids only, without sand or other solid impurities.
Model |
Power |
Max. Flow(L/min) |
Max.Head(m) |
Max.Suct.(m) |
Inlet/Outlet(inch) |
G.W./N/W.(kg) |
Packing Dimension(mm) |
|
KW |
HP |
|||||||
IDB35 |
0.37 |
0.5 |
35 |
35 |
9 |
1”X1” |
6.5/5.8 |
285x160x175 |
IDB40 |
0.55 |
0.75 |
50 |
50 |
9 |
1”X1” |
10.5/9.5 |
320x175x215 |
IDB50 |
0.75 |
1.0 |
55 |
60 |
9 |
1”X1” |
11.5/10.5 |
320x175x215 |
