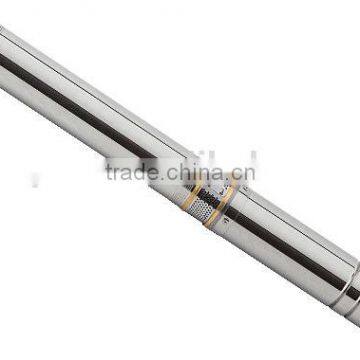

Economical 0.75HP Submersible Well Pump 4" for Deep Well

Economical 0.75HP submersible well pump 4" for deep well

Operating conditions:

-Liquid temperature up to 35^oC

-Submersion depth 40m

-Minimum internal diameter of well: 102mm. -Continuous duty.

Motor:

-Tow-pole induction motor (n=2850r.p.m)

-Built-in over load motor protector

-Insulation Class B/F -Protection IPX8

Material:

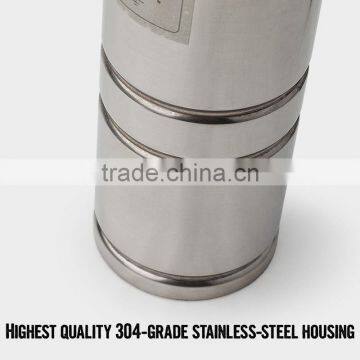

-External pump body: Stainless Steel

-Suction strainer: Stainless Steel

-Impeller and diffusors: Noryl -Bearing brackets: Brass

-Shaft: Stainless Steel -Motor housing: Stainless Steel -Mechanical seal: Ceramic/Graphite

Application:

-Multistage submersible water pumps with radial closed impeller conceived in order to solve any problem of clean water conveyance.

-Suitable for irrigation, and pressure systems and pressure systems and generally for civil and industrial purposes

SPECIFICATIONS

• Motor: 0.5HP/0.37KW
• Phase: Single
• Voltage: 220-240V 50HZ
• Brass Outlet: 1.25" /1.5''
• Rev: 2850RPM
• Max Ambient Temp: 70C
• Max Fluid Temp: 40C
• Vertical/ Horizontal Mounting: Yes
• Max Starts Per Hour: 30
• Overload Trip Time: <10 Sec
• Insulation Class: B
• Plug: 10amp
• Max Head: 35m
• Protection Class: IPX8

Our Advantages:

1. Competitive Price

2. Best Quality

3. Lowest MOQ

The reason why choose us?

1. We have 11 years experiences in supplying pumps to Europe, Australia, USA, Russia.

2. We have not only produce garden pumps, also we can offer submersible pumps, diesel transfer pumps, etc.

3. We have a very strong quality control system: Raw material control / process control/component quality contorl/ finished product quality inspection/ mass production spot check/ Inspection company check

4. We have a professional design team who deal with color box/ Instruction manual/ prodcut design accroding to customer's requirement.

5. We have competitive price and have best delivery time, most spare parts are produced by our factory, and we have the old experience workes.

6. We have best after-sale service, and we are very confident in our products to offer customers 1 year warranty. The customers are guaranteed by our 100% satisfaction on all products.
