China stainless steel 1.5hp bore submersible pump
- 20000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | TRUPOW or OEM | Model Number: | 100QJD310-1.1 |
Theory: | Centrifugal Pump | Structure: | Multistage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electric |
Pressure: | High Pressure | Application: | Submersible |
Product Description
China stainless steel 1.5hp bore submersible pump
Operating conditions:
-Liquid temperature up to 35oC
-Submersion depth 40m
-Minimum internal diameter of well: 102mm. -Continuous duty.
Motor:
-Tow-pole induction motor (n=2850r.p.m)
-Built-in over load motor protector
-Insulation Class B/F -Protection IPX8
Material:

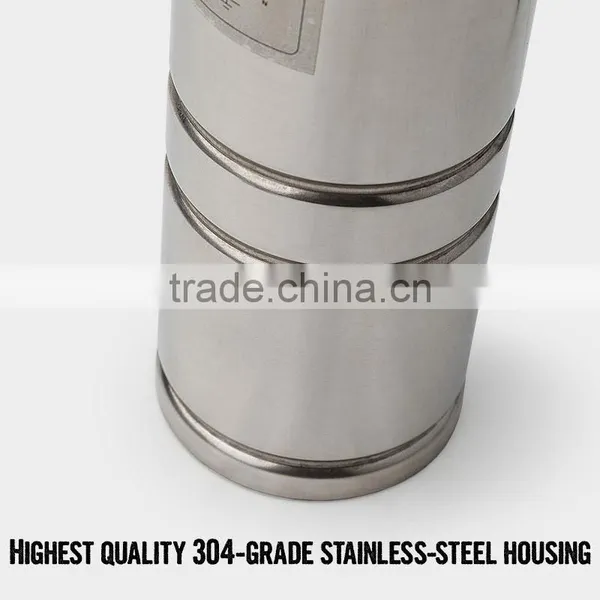

-External pump body: Stainless Steel
-Suction strainer: Stainless Steel
-Impeller and diffusors: Noryl -Bearing brackets: Brass
-Shaft: Stainless Steel -Motor housing: Stainless Steel -Mechanical seal: Ceramic/Graphite
Application:
-Multistage submersible water pumps with radial closed impeller conceived in order to solve any problem of clean water conveyance.
-Suitable for irrigation, and pressure systems and pressure systems and generally for civil and industrial purposes
SPECIFICATIONS
- Motor: 1.5HP/1.1KW
- Phase: Single
- Voltage: 220-240V 50HZ
- Brass Outlet: 1.25" /1.5''
- Rev: 2850RPM
- Max Ambient Temp: 70C
- Max Fluid Temp: 40C
- Vertical/ Horizontal Mounting: Yes
- Max Starts Per Hour: 30
- Overload Trip Time: <10 Sec
- Insulation Class: B
- Plug: 10amp
- Max Head: 35m
- Protection Class: IPX8
Our Advantages:
1. Competitive Price
2. Best Quality
3. Lowest MOQ
The reason why choose us?
1. We have 11 years experiences in supplying pumps to Europe, Australia, USA, Russia.
2. We have not only produce garden pumps, also we can offer submersible pumps, diesel transfer pumps, etc.
3. We have a very strong quality control system: Raw material control / process control/component quality contorl/ finished product quality inspection/ mass production spot check/ Inspection company check
4. We have a professional design team who deal with color box/ Instruction manual/ prodcut design accroding to customer's requirement.
5. We have competitive price and have best delivery time, most spare parts are produced by our factory, and we have the old experience workes.
6. We have best after-sale service, and we are very confident in our products to offer customers 1 year warranty. The customers are guaranteed by our 100% satisfaction on all products.
