Economical 1Hp 0.75Kw Drill Powered Pump

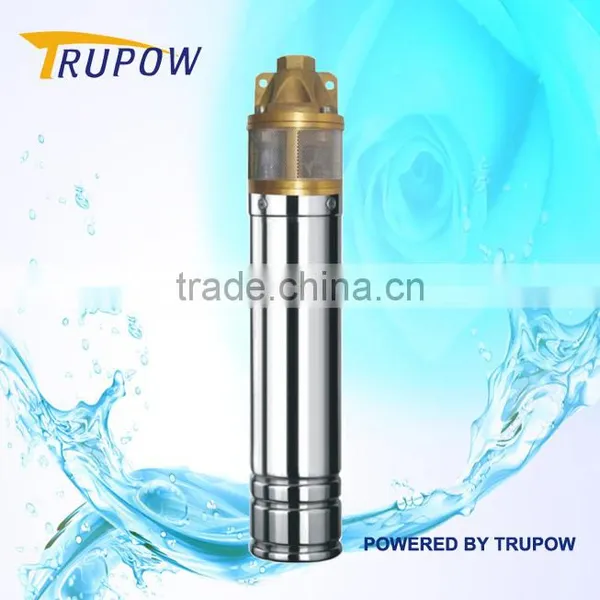

Peripheral Submersible Pump
Performance:
-For water supply
-For irrigation
-For civil and industrial applications
-For deep well
Operating Limits:
-Water temperature up to 55 Centigrade
-Minimum internal diameter of well: 100mm
-Maximum sand quantity into the water: 25g/m3
Structural Charactristics:
-External casing AISI 304 ss
-Impeller: Brass
-Delivery casing: Brass
-Suction lantern: Brass
-Stage casing: Brass
-Shaft: AISI 304 ss
-Filter: AISI 304 ss
-Wear ring: AISI 430 ss
-Motor-External casing AISI 304 ss
-Former cover: Cast-Cu ASTM280
-Bottom support: Cast-Cu ASTM280
-Mechanical seal: Special seal for deep well
-Bearing: NSK. NTN
-Seal lubrication oi: Oil food machinery and pharmaceutics use
Motor:
-The pumps are coupled directly to an asynchronous, high efficiency induction motor of suitable size, which is quiet running, closed and externally ventilated, suitable for continuous duty.
-Insulation class B.
-The thermal cutout relay (motor protector) is incorporated in single phase motors.
-Protection IPX8.
-Delivery casing with built-in non-return valve.
-Voltage and frequency available on request.
Workshop
Exhibition
Certification
You can believe&choose us :
-- 11 years experiences in supplying pumps to Europe, Australia, USA, Russia.
professional design team to design anything all according to your requirements,such as the package,etc.
experienced technology workers to guarantee the products quality.
-- strong quality control system:
Raw material control / process control/component quality contorl/ finished product quality inspection/ mass production
spot check/ company check
-- Best after-sale service, offer you 1 year warranty.
you will be 100% satisfied with our products.
