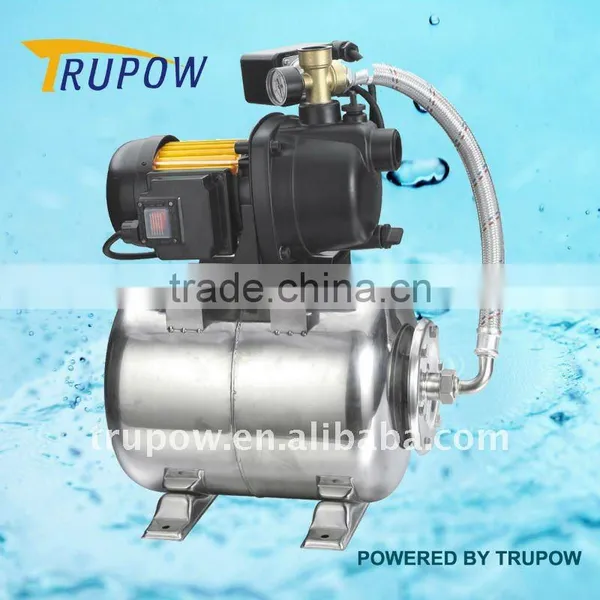

Water Pump Station
US$ 62.5 - 70.5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TRUPOW
Model Number:
TP03221-TP03224
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Water Pressure Booster SystemsUS$ 52.6 - 60.5MOQ: 100 Pieces -
Automatic Booster Pump With Iron TankUS$ 48.5 - 55.6MOQ: 50 Pieces
-
Cast Iron Garden Jet Pump for Garden IrrigationUS$ 28.5 - 35MOQ: 100 Pieces
-
Popular&High-quality Stainless Steel Garden Jet PumpUS$ 28.5 - 36MOQ: 200 Pieces
-
Garden Jet Pumps With Multi-stage Impeller for WaterUS$ 28.5 - 38.2MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
TRUPOW
Model Number
TP03221-TP03224
Theory
Jet Pump
Structure
Single-stage Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, Electric
Pressure
High Pressure
Application
Other, Gardening
Specifications
Water Pump Station1.Water supply from rain barrels, wells or tanks
2.Irrigation system
Water Pump Station Specification:
Operating Limits:
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C
Material:
-Motor shaft: 45# Carbon steel
-Impeller: PP
-Pump head: PP
-Pressure tank: stainless steel
Application:
-Self-priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
Application:
-Self-priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
-Booster system with pressure tank.
-They are very silent and reliable and particularly Suitable to increase pressure from a water system, to supply water from wells and in domestic high pressure groups.
-They are very silent and reliable and particularly Suitable to increase pressure from a water system, to supply water from wells and in domestic high pressure groups.

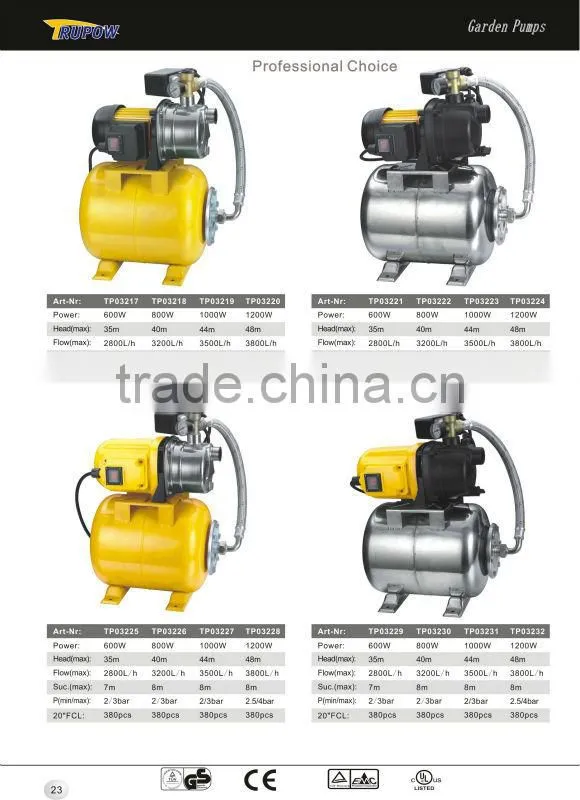

Technical Data:
MODEL |
POWER
(W)
|
MAX HEAD
(M)
|
MAX FLOW
(L/H)
|
MAX SUC. DEPTH
(M)
|
MAX PRE.
(BAR)
|
CABLE AND LENGTH
(M)
|
QTY/20CTN
(PC)
|
TP03221 |
600 |
35 |
2800 |
7 |
2/3 |
H07RN-F3G1.0mm2X1.2m |
380 |
TP03222 |
800 |
40 |
3200 |
8 |
2/3 |
H07RN-F3G1.0mm2X1.2m |
380 |
TP03223 |
1000 |
44 |
3500 |
8 |
2/3 |
H07RN-F3G1.0mm2X1.2m |
380 |
TP03224 |
1200 |
48 |
3800 |
8 |
2.5/4 |
H07RN-F3G1.0mm2X1.2m |
380 |
