Specifications

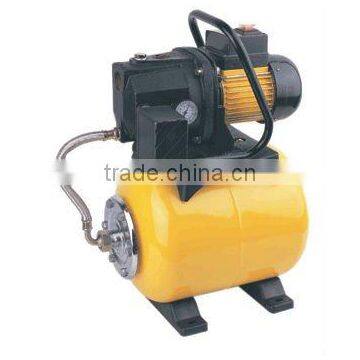

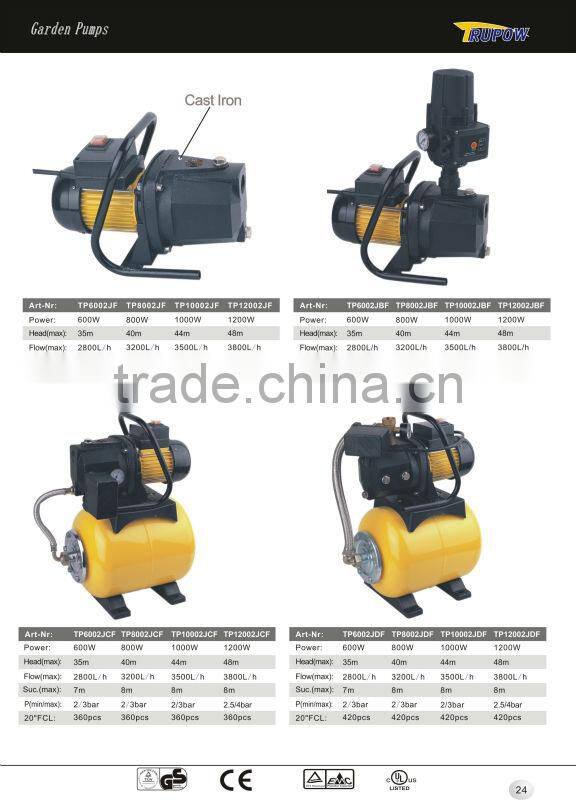

Automatic water pressure booster systems, with a very high hydraulic performance and a considerable pressure capacity.Automatic water pressure booster systems Specifications:
Operating conditions:
1. ing pressure 8 bar
2. Liquid temperature up to 60ìC
3. Ambient temperature up to 40ìC
4. Total suction lift up to 9m
5. Continuous duty
Motor:
1. Two-Pole induction motor(n=2900r.p.m.)
2. Insulation Class B/F
3. Protection IP44
Material:
1. Pump body: Cast Iron
2. Motor Support: Cast Iron
3. Impeller: Brass/Noryl
4. Diffuser: Noryl
5. Shaft with rotor: Hi-Cr plated 45# Steel/Stainless Steel
6. Mechanical seal: Carbon/Ceramic
Application:
-Self priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
-Able to pump up to mt.9 depth and work perfectly even in soda-water
-Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.
Model |
Power |
Max. Flow
(L/h)
|
Max.Head
(m)
|
Max.Suct.
(m)
|
Inlet/Outlet
(inch)
|
G.W./N.W. |
Packing size
(mm)
|
QTY/20CTR
(pcs)
|
|
KW |
HP |
||||||||
TP6002JCF |
0.6 |
0.75 |
2800 |
35 |
8 |
1X1 |
9/8.5kg |
375x210x260 |
360 |
TP8002JCF |
0.8 |
1.0 |
3200 |
40 |
8 |
1X1 |
10/9.5kg |
375x210x260 |
360 |
TP10002JCF |
1.0 |
1.25 |
3500 |
44 |
8 |
1X1 |
11/10.5kg |
375x210x260 |
360 |
TP12002JCF |
1.2 |
1.50 |
3800 |
48 | 8 |
1X1 |
12/11.5kg |
375x210x260 |
360 |
