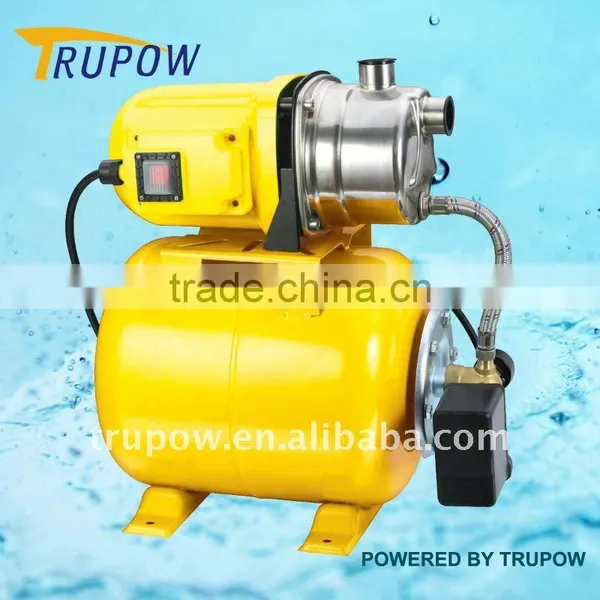

Automatic Pressure Booster Pump System
US$ 52.2 - 57
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TRUPOW
Model Number:
TP03209~TP03212
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Garden Pump With Pressure SystemUS$ 58.4 - 67.6MOQ: 100 Pieces -
Water Pump Pressure SystemUS$ 53.4 - 62.5MOQ: 100 Pieces
-
Water Pump StationUS$ 62.5 - 70.5MOQ: 100 Pieces
-
Automatic Water Pressure Booster SystemsUS$ 52.6 - 60.5MOQ: 100 Pieces
-
Automatic Booster Pump With Iron TankUS$ 48.5 - 55.6MOQ: 50 Pieces
Place of Origin
Zhejiang, China
Brand Name
TRUPOW
Model Number
TP03209~TP03212
Theory
Jet Pump
Structure
Single-stage Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, Electric
Pressure
High Pressure
Application
Other, Gardening water
Specifications
automatic pressure booster pump system1.with a very high hydraulic performance.
2.and a considerable pressure capacity.
Automatic pressure booster pump system
Operating Limits:
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C
Material:
-Motor shaft: 45# Carbon steel
-Impeller: PP
-Pump head: stainless steel
-Pressure tank: iron
Application:
-Self-priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
-Booster system with pressure tank.Application:
-Self-priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
-They are very silent and reliable and particularly Suitable to increase pressure from a water system, to supply water from wells and in domestic high pressure groups.
Specification:
230V/50Hz,110V/60Hz
Model:TP03209/03210/03211/03212
Rated Power: 600W/800W/1000W/1200W
Max.delivery head: 35/40/44/48m
Max delivery capacity: 2800/3200/3500/3800 Litres per hour
ure:3/3/3/4bar
Min. pressure:2/2/2/2.5bar
Max suction: 7/8/8/8m
Diameter of pipe:1''
Material of tank housing: iron
Cable: H07RN-F 3G1.0mm2
Length of cable:1.2m
GS/CE/EMC/ROHS Approval
20"container: 380pcs
MODEL |
POWER
(W)
|
MAX HEAD
(M)
|
MAX FLOW
(L/H)
|
MAX SUC. DEPTH
(M)
|
MAX PRE.
(BAR)
|
CABLE AND LENGTH
(M)
|
QTY/20”CTN
(PC)
|
TP03209 |
600 |
35 |
2800 |
7 |
2/3 |
H07RN-F3G1.0mm2X1.2m |
380 |
TP03210 |
800 |
40 |
3200 |
8 |
2/3 |
H07RN-F3G1.0mm2X1.2m |
380 |
TP03211 |
1000 |
44 |
3500 |
8 |
2/3 |
H07RN-F3G1.0mm2X1.2m |
380 |
TP03212 |
1200 |
48 |
3800 |
8 |
2.5/4 |
H07RN-F3G1.0mm2X1.2m |
380 |
