parker hydraulic pump TP30 TP40
USD $500 - $1,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- FUZHOU
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | DSL | |
| Model Number | SP20 SP30 hydraulic hand pump | Theory | Other, hydraulic system | |
| Structure | Diaphragm Pump | Usage | Water | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Gasoline | Pressure | Low Pressure | |
| Application | Cryogenic |
Product Description

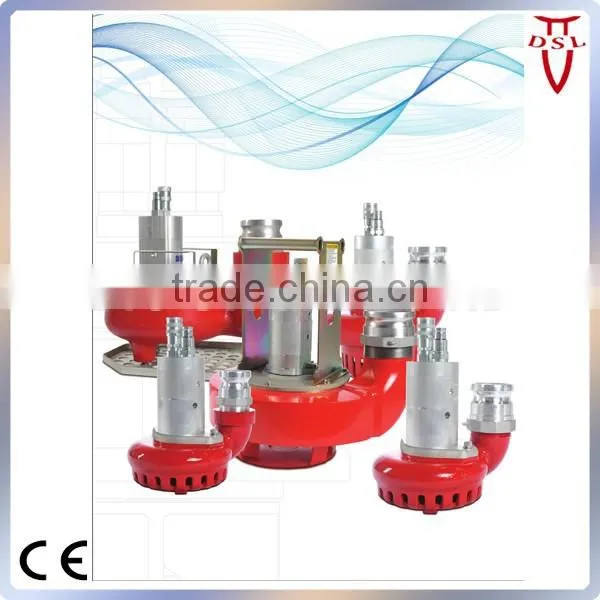

SP20 SP30 Hydraulic Submersible Pump
Other Hydraulic Tools:
INTRODUCTION
Our hydraulically powered submersible dewatering and trash pumps have been engineered
to provide long lasting pumping performance with economic advantages that no other
pump can match. Yet, even a well-designed and well-built pump can malfunction or become
hazardous in the hands of an experienced or untrained user. Anyone that operates or comes
in contact with these products must thoroughly read and understand this manual and related
equipment manuals prior to handling, operating or servicing these pumps.
SPECIFICATION
| SP20 2.0” SUBMERSIBLE WATER PUMP SPECIFICATIONS | |
| PUMPING CAPACITY | 250 gpm (946 lpm) |
| PUMP TYPE | Water |
| CONSTRUCTION | Aluminum Body/Stainless Impeller |
| DISCHARGE | 2” Cam Loc - 2” NPT Female |
| WEIGHT | 12 lbs. (5.5 kg) |
| LENGTH] | 9.5 inches (241 mm) |
| WIDTH | 8 inches (203 mm) |
| HEIGHT | 9 inches (229 mm) |
| HYDRAULIC FLOW RANGE | 4-9 gpm (15-34 lpm) |
| MAXIMUM PRESSURE | 2000 psi (138 bar) |
| SP25 2.5” SUBMERSIBLE WATER PUMP SPECIFICATIONS | |
| PUMPING CAPACITY | 275 gpm (1040 lpm) |
| PUMP TYPE | Water |
| CONSTRUCTION | Aluminum Body/Stainless Impeller |
| DISCHARGE | 2-1/2” Cam Loc - 2-1/2” NPT Male |
| WEIGHT | 12 lbs. (5.5 kg) |
| LENGTH] | 9.5 inches (241 mm) |
| WIDTH | 8 inches (203 mm) |
| HEIGHT | 9 inches (229 mm) |
| HYDRAULIC FLOW RANGE | 4-8 gpm (15-30 lpm) |
| MAXIMUM PRESSURE | 2000 psi (138 bar) |
| MAXIMUM BACK PRESSURE | 250 psi (17 bar) |
| SP30 3” SUBMERSIBLE WATER PUMP SPECIFICATIONS | |
| PUMPING CAPACITY | 500 gpm (1893 lpm) |
| PUMP TYPE | Water |
| CONSTRUCTION | Aluminum Body/Stainless Impeller |
| DISCHARGE | 3” Cam Loc - 3” NPT Female |
| WEIGHT | 21 lbs. (9.5 kg) |
| LENGTH] | 12 inches (305 mm) |
| WIDTH | 10 inches (254 mm) |
| HEIGHT | 12 inches (305 mm) |
| HYDRAULIC FLOW RANGE | 7-11 gpm (26-42 lpm) |
| MAXIMUM PRESSURE | 2000 psi (138 bar) |
| MAXIMUM BACK PRESSURE | 250 psi (17 bar) |
| TP30 3” SUBMERSIBLE TRASH PUMP SPECIFICATIONS | |
| PUMPING CAPACITY | 475 gpm (1800 lpm) |
| PUMP TYPE | Trash-Sludge-Slurry-Water |
| CONSTRUCTION | Urethane Volute and Impeller |
| DISCHARGE | 3” Cam Loc - 3” NPT Female |
| WEIGHT | 30 lbs. (13.6 kg) |
| LENGTH] | 14 inches (355 mm) |
| WIDTH | 12 inches (305 mm) |
| HEIGHT | 13 inches (330 mm) |
| HYDRAULIC FLOW RANGE | 7-11 gpm (26-42 lpm) |
| MAXIMUM PRESSURE | 2000 psi (138 bar) |
| MAXIMUM BACK PRESSURE | 250 psi (17 bar) |
| TP40 4” SUBMERSIBLE TRASH PUMP SPECIFICATIONS | |
| PUMPING CAPACITY | 875 gpm (3312 lpm) |
| PUMP TYPE | Trash-Sludge-Slurry-Water |
| CONSTRUCTION | Steel Fabrication/Iron Impeller |
| DISCHARGE | 4” Cam Loc - 3” NPT Male |
| WEIGHT | 59 lbs. (26.8 kg) |
| LENGTH] | 19 inches (482 mm) |
| WIDTH | 15 inches (381 mm) |
| HEIGHT | 19 inches (482 mm) |
| HYDRAULIC FLOW RANGE | 7-9 gpm (26-34 lpm) |
| MAXIMUM PRESSURE | 2000 psi (138 bar) |
| MAXIMUM BACK PRESSURE | 250 psi (17 bar) |
