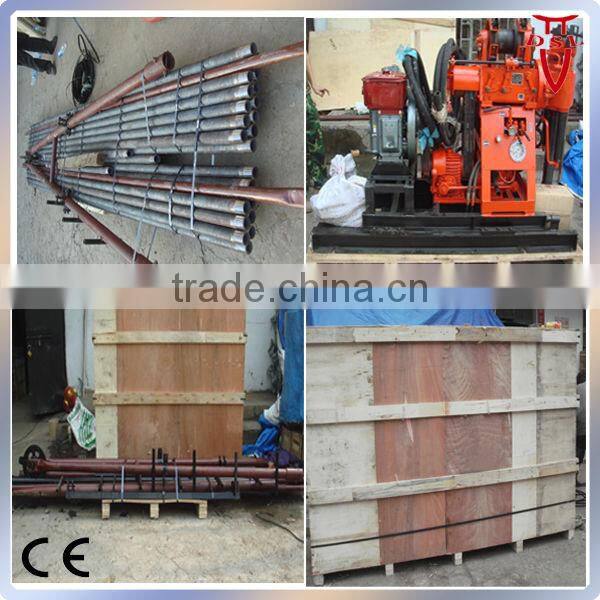

Water Well Drilling Rigs SM-200Y With 200m Drilling

Name: Water Well Drilling Rigs SM-200Y With 200m Drilling
Brand: DSL-water well drilling rigs
SKU: 142962550
Availability: InStock

Fuzhou Dig Sword Land Machine Co., Ltd.

US$ 1 - 3 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Rotary Drilling Rig

Place of Origin:

Fujian, China

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rotary Drilling Rig

Place of Origin Fujian, China

Brand Name DSL-water well drilling rigs

Model Number SM-200Y water well drilling rigs

Usage Water Well

Certification ISO9001&CE

Specifications

Water well drilling rigs SM-200Y with 200m drilling
1.High quality and long service time
2.Advanced equipment
3.ISO9001

Water well drilling rigs SM-200Y with 200m drilling

Application scope

Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.
With hydro-automatic feeding device, and high drilling efficiency.
Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
Close levers, convenient to operate, safe and reliable operations.
Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.
Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.

Main specification of water well drilling rigs

SM-200Y
Specifications
Unity machine parameter
Drilling depth	200m
Drilling caliber	300mm
Drill rod caliber	60mm
Drilling angle	90 °~75 °
Drill weight (No include power)	975kg
Spindle
Spindle speed	64 128 287 557 r/min
Spindle stroke	450mm
Hoist
Max.single line hoisting capacity	2400kg
Reel lifting speed	0.41 0.82 1.64m/s
Tightrope caliber	12.5mm
Tightrope cubic measure	35mm
Hug floodgate caliber	260mm
Hug floodgate belt width	70mm
Distance between drill and hole	450mm
Mud pump
Type	Horizontal single urn twin action
Displacement	170L/mim
Power
Diesel engine	S1115 22HP
Electric motor	Y160M-4 15kw 1440r/min
Maximum pressure	3Mpa
Work pressure	1.5Mpa
Water inlet caliber	40mm
Water to exit caliber	30mm
Triangle conveyer belt	B1728mm
