Specifications
water well1.Similar to good brand
2.Well design below to factory,low price.
3.Drilling depth:200m
4.have CE and ISO
Portable type water well/core drilling machine SM-200Y
The application scope about this water well
- For general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.
- With hydro-automatic feeding device, and high drilling efficiency.
- Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
- Close levers, convenient to operate, safe and reliable operations.
- Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.
- Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas. SM-200Y
- The drill cablier can reache about: 75mm-300mm. Deepth: 30 meters -200 meters.
Main Introducte
SM-200Y | |
Specifications | |
Unity machine parameter | |
Drilling depth | 200m |
Drilling caliber | 300mm |
Drill rod caliber | 60mm |
Drilling angle | 90 °~75 ° |
Drill weight (No include power) | 975kg |
Spindle | |
Spindle speed | 64 128 287 557 r/min |
Spindle stroke | 450mm |
Hoist | |
Max.single line hoisting capacity | 2400kg |
Reel lifting speed | 0.41 0.82 1.64m/s |
Tightrope caliber | 12.5mm |
Tightrope cubic measure | 35mm |
Hug floodgate caliber | 260mm |
Hug floodgate belt width | 70mm |
Distance between drill and hole | 450mm |
Mud pump | |
Type | Horizontal single urn twin action |
Displacement | 170L/mim |
Power | |
Diesel engine | S1115 22HP |
Electric motor | Y160M-4 15kw 1440r/min |
Maximum pressure | 3Mpa |
Work pressure | 1.5Mpa |
Water inlet caliber | 40mm |
Water to exit caliber | 30mm |
Triangle conveyer belt | B1728mm |

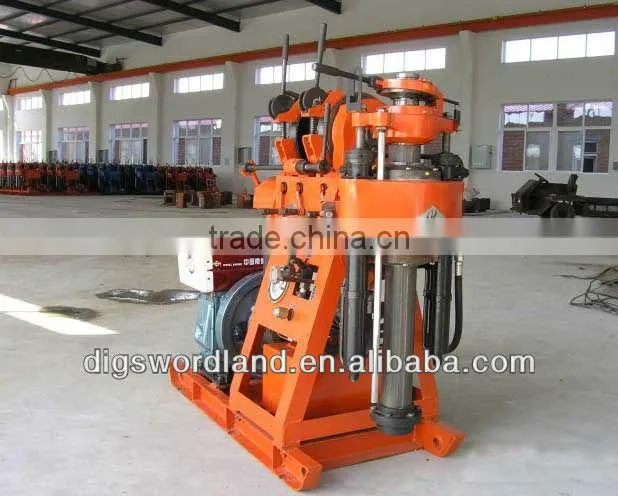

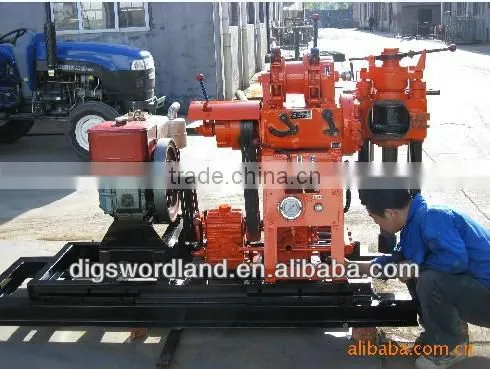

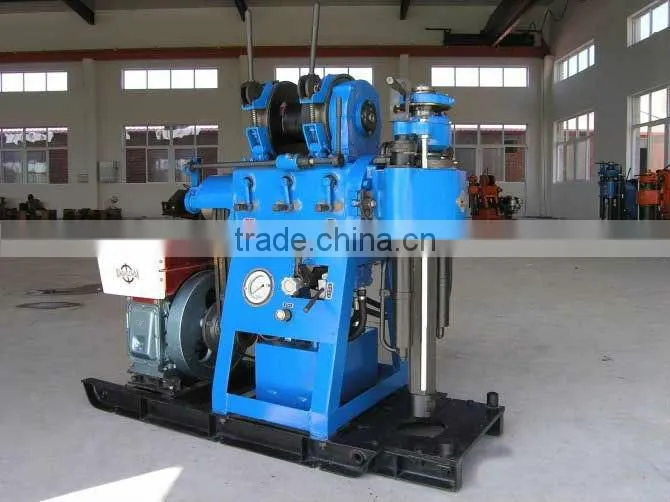

some picture about this water well
Related certification
About our factory
Fuzhou Dig Sword Land Machine Co.,Ltd is the Sino-foreign joint venture which mainly business DSL brand from Digswordland Technology Limited. The enterprise is an industrial supplier which specialized in design, manufacture and sales in worldwide and has owned ten product patent right for RB777, B77C, RB777C, and TCA-7 and so on. My company provided air compressed, construction and mining equipment, also related after-sale services. Now our business has throughout 158 countries and area with good reputation.
My Company has advanced equipment, technology, excellent quality, good Service. We found a full set of CE Quality Certificate and carry out the ISO9001 International Quality System to assure the reliability and stability of our production.
Our Enterprise emphasizes "Technology Improve Quality, Well Quality Occupy Market". By this point, we have got good reputation from both domestic and foreign customers. We peruse actively the new norms, high efficiency, simple operate products to achieve the break through of the best quality for our customers, and then develop and enlarge market. Now our customers have throughout Middle-East, Africa, South-America and other countries and areas.
With the best service, creditability and good quality, we continue to develop and would like to work together with existing and new customers to create excellent future.
Welcome to contact with me if you are interested in my products.
