Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > Hot Selling YT24 Air Leg Rock Drill Manufacturer
US$ 90 - 500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Other, Pneumatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou or Other ports in China(mainland)
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hand Hold Pneumatic Stone Drill Machine SupplierUS$ 90 - 500MOQ: 1 Set -
Practical YT27 Pneumatic Jack Leg Rock Drill MachineUS$ 90 - 500MOQ: 1 Set
-
New Model Patent S250 Quarry Air Rock Drill MachineUS$ 90 - 500MOQ: 1 Set
-
YSP45 Stopper Air Leg Rock Drill Crush UpwardsUS$ 90 - 500MOQ: 1 Set
-
Portable Y018 Hand Hold Air Rock Drill MachineUS$ 90 - 500MOQ: 1 Set
Condition
New
Type
Rotary Drilling Rig
Power Type
Other, Pneumatic
Place of Origin
Fujian, China
Brand Name
DSL
Model Number
YT24
Usage
Coal
Voltage
Pneumatic Engine Driven
Power(W)
None
Dimension(L*W*H)
678*228*184MM
Weight
24KG
Certification
ISO CE
Warranty
None
After-sales Service Provided
No overseas service provided

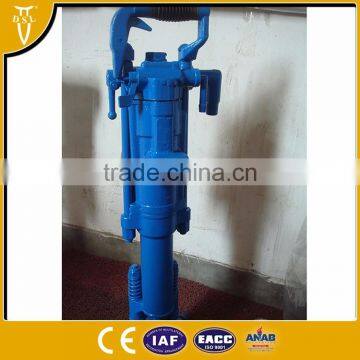

hot selling YT24 air leg rock drill manufacturer
Product Description
The rock drill is a kind of high efficiency air leg rock drill machine.It is widely used for blasting holes and other drilling projects in a quarries, railway construction, water conservancy construction and defence project facility.
It is suitable for drill level or gradient holes in medium hard or hard rock(f=8-18).The drilling depth can be five-eight meters. It can be matched with the FT140BD short air-leg or FT140B long air-leg to use in the basis of the width of rock.Also it can be fixed on drilling-vehicle or drilling-shelf.
To ensure the well lubricating.This rock drill may match FY200B oil reservior.
| Weight | 24 | KG |
| Outside dimension (L*W*H) | 678*228*184 | MM |
| Piston diameter | 70 | MM |
| Piston Stroke | 70 | MM |
| Air pressure | 0.5-0.63 | Mpa |
| Air consumption | ≤67(0.63Mpa) ≤52(0.5Mpa) | L/S |
| Impact frequency | 31 | HZ |
| Rotated speed | 250 | R/min |
| Air hose inner diameter | 19 | MM |
| Water hose inner diameter | 13 | MM |
| rock drill hole diameter | 34-42 | MM |
| Max drilling depth | 5 | MM |
| Shank size | 22*108 | MM |
| FY200B Line Oiler Specifications | ||
| Capacity | 200 | ML |
| Weight | 1.02 | KG |
| FT140B Air Leg | ||
| Weight | 15.6 | KG |
| Length | 1687 | MM |
| Feeding stroke | 1250 | MM |
| Cylinder diameter | 60 | MM |
