Home > Products > Air leg rock drill/Hand Hold rock drill > YSP45 stopper air leg rock drill crush upwards

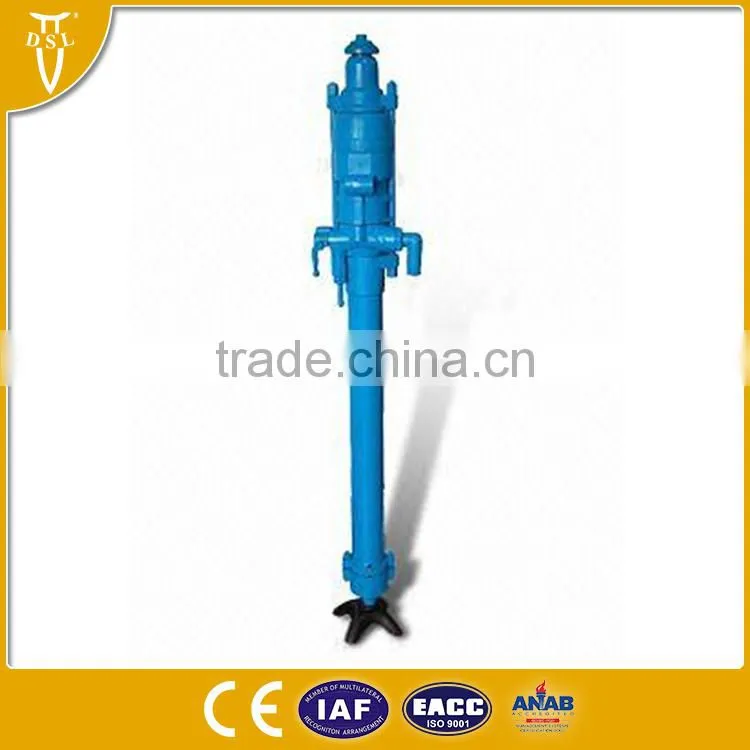

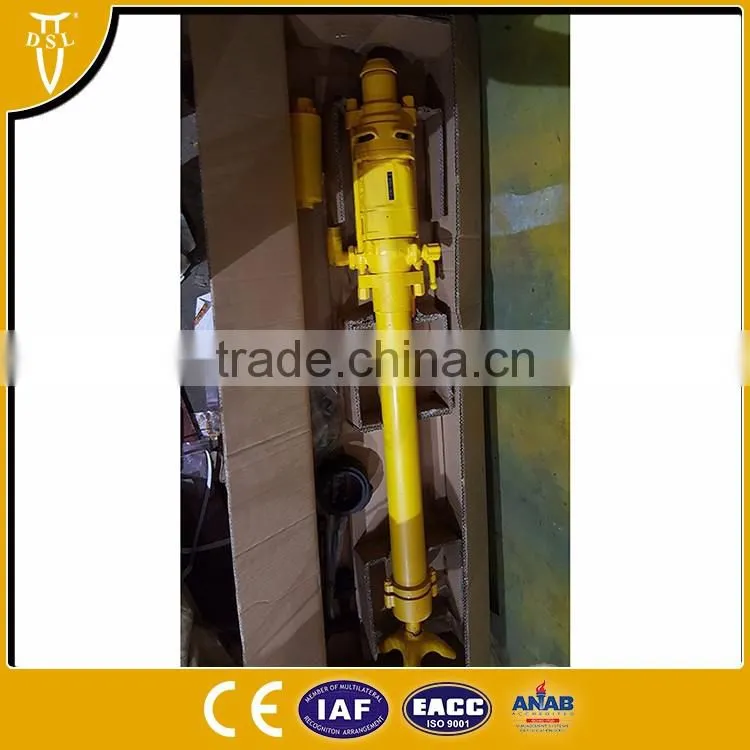

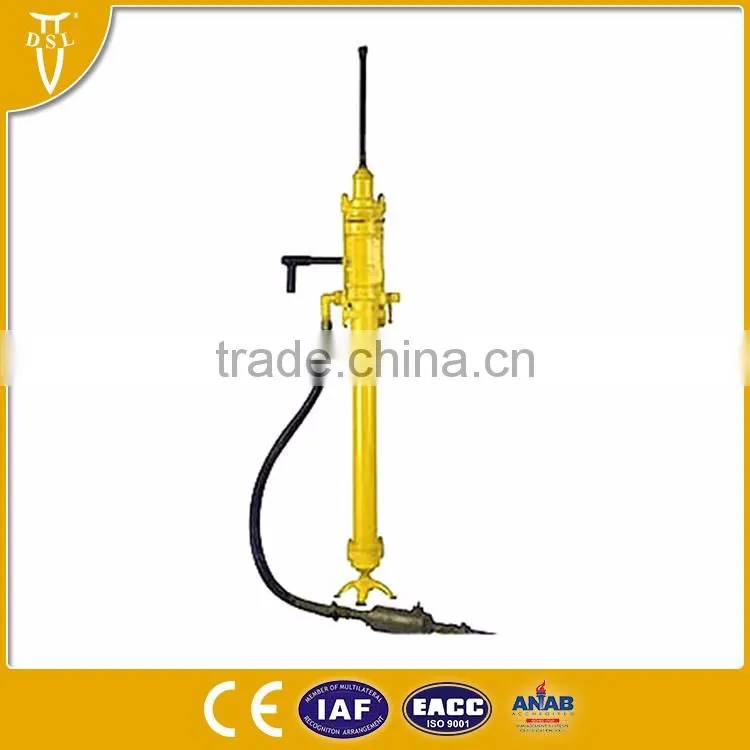

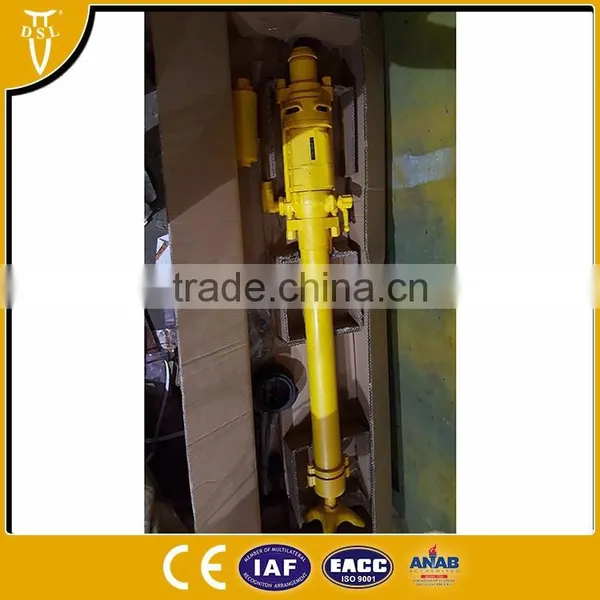

YSP45 stopper air leg rock drill crush upwards
USD $90 - $500
/ Set
1 Set(Min.Order)
- 1000 Set / Sets per Month
- Fuzhou or Other ports in China(mainland)
- T/T
You May Like
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Other, Pneumatic | Place of Origin | Fujian, China | |
| Brand Name | DSL | Model Number | YSP45 | |
| Usage | Coal | Voltage | Pneumatic Engine Driven | |
| Power(W) | None | Dimension(L*W*H) | cylinder diameter 95MM | |
| Weight | FY500A Oil Lubricator 2.5KG | Certification | ISO CE | |
| Warranty | None | After-sales Service Provided | No overseas service provided |
Product Description
YSP45 stopper air leg rock drill crush upwards
Product Description
The YSP45 stoper rock drill drilling in quarry and coal or line ston mine.Its robust design is for tough working condition.It has high impact frequency and is mainly used for producting drilling,raise driving ,bolting and other defence project facility.It’s high efficiency,upward(60-90 degree) drilling,tough working condition blasting.
| cylinder diameter | 95 | MM |
| Piston Stroke | 47 | MM |
| Air Leg Feeding Stroke | 750 | MM |
| Air Leg cylinder inner diameter | 74 | MM |
| Working Pressure | 0.4-0.63 | Mpa |
| Impact Energy | ≥73.5J(0.63Mpa) ≥70J(0.5Mpa) ≥57J(0.4Mpa) | |
| Air Consumption | ≤113.3L/S(0.63Mpa) ≤83L/S(0.5Mpa) ≤80L/S(0.4Mpa) | |
| Impact Frequency | ≥46HZ(0.63Mpa) ≥45HZ(0.5Mpa) ≥42HZ(0.4Mpa) | |
| Torque | ≥21N.M(0.63Mpa) ≥18N.M(0.5Mpa) ≥15N.M(0.4Mpa) | |
| Working water pressure | 0.3 | Mpa |
| Air pipe inner diameter | 25 | MM |
| Water pipe inner diameter | 13 | MM |
| Rock drill hole diameter | 34-42 | MM |
| Max Drilling depth | 6 | M |
| Working Temperature | —30~50 | ℃ |
| Shank Size | 22*108 | M |
| FY500A Oil Lubricator | ||
| Weight | 2.5 | KG |
| Oil Reserve | 500 | ML |
