Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > Pneumatic YT28 Jack Leg Rock Drill Jack Hammer
US$ 90 - 500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Other, Pneumatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou or Other ports in China(mainland)
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small YT24 Rock Drill , YT24 Rock Breaker HammerUS$ 90 - 500MOQ: 1 Set -
Design Air Leg Rock Breaker Chisel ManufacturerUS$ 90 - 500MOQ: 1 Set
-
Hot Selling YT24 Air Leg Rock Drill ManufacturerUS$ 90 - 500MOQ: 1 Set
-
Hand Hold Pneumatic Stone Drill Machine SupplierUS$ 90 - 500MOQ: 1 Set
-
Practical YT27 Pneumatic Jack Leg Rock Drill MachineUS$ 90 - 500MOQ: 1 Set
Condition
New
Type
Rotary Drilling Rig
Power Type
Other, Pneumatic
Place of Origin
Fujian, China
Brand Name
DSL
Model Number
YT28
Usage
Coal
Voltage
Pneumatic Engine Driven
Power(W)
None
Dimension(L*W*H)
Total length 661mm
Weight
26KG
Certification
ISO CE
Warranty
None
After-sales Service Provided
No overseas service provided

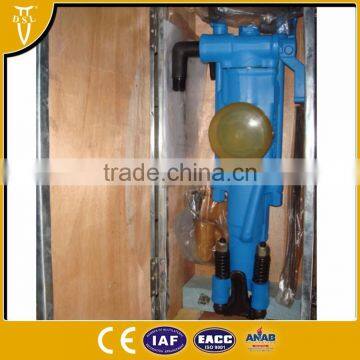

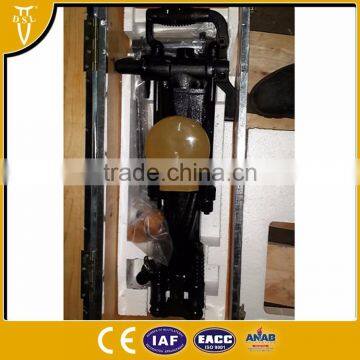

pneumatic YT28 jack leg rock drill jack hammer
Product Description
The rock drill is a kind of high efficiency air leg rock drill machinery. It is mainly used for diging into mine laneway and blasting holes in all drilling works. It is indispensably importance machine tool in metallurgy, coal, railway, traffic, water conservancy construction and national defence stone project.
It is suitable for drilling and blasting under various of rocks at any direction angles. Blast hole dia is 34-42mm,drill hole depth is 5 m This machine may match with Model FT160BD short air leg or Model FT160BC long air leg.
This machine has transparent surface of FY200B oil reservoir, easy to observe the oil lever, adjust oil quantity, ensure the well lubricated.
| Weight | 26 | KG |
| Length | 661 | MM |
| Cylinder diameter | 80 | MM |
| Piston Stroke | 60 | MM |
| Working Pressure | 0.4-0.63 | Mpa |
| Impact Frequency | ≥36(0.63Mpa) ≥35(0.5Mpa) ≥28(0.4Mpa) | HZ |
| Air Consumption | ≤82(0.63Mpa) ≤58(0.5Mpa) ≤52(0.4Mpa) | L/S |
| Impact Energy | ≥70(0.63Mpa) ≥63(0.5Mpa) ≥44(0.4Mpa) | J |
| Torque | ≥23(0.63Mpa) ≥19(0.5Mpa) ≥15(0.4Mpa) | N.M |
| Rotated speed | ≥300(0.63Mpa) ≥260(0.5Mpa) ≥250(0.4Mpa) | R/min |
| Drilling speed | ≥470(0.63Mpa) ≥400(0.5Mpa) ≥250(0.4Mpa) | MM/Min |
| Air pipe inner diameter | 25 | MM |
| Water pipe inner diameter | 13 | MM |
| Working Water Pressure | 0.3 | Mpa |
| Rock drill hole diameter | 34~45 | MM |
| Drilling Depth | 5 | M |
| Working temperature | -30~45 | ℃ |
| Shank Size | H22*108 | MM |
| FY200B Oil Lubricator | ||
| Weight | 1.02 | KG |
| Oil Reserve | 200 | ML |

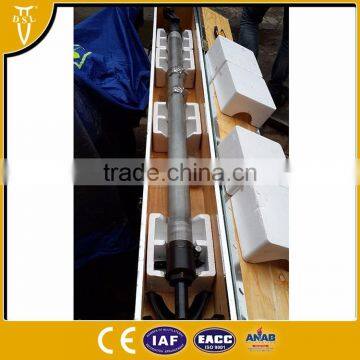

| FT160BC Air Leg | ||
| Weight | 16.9 | KG |
| Length | 1800 | MM |
| Advance Length | 1365 | MM |
| Cylinder diameter | 65 | MM |
