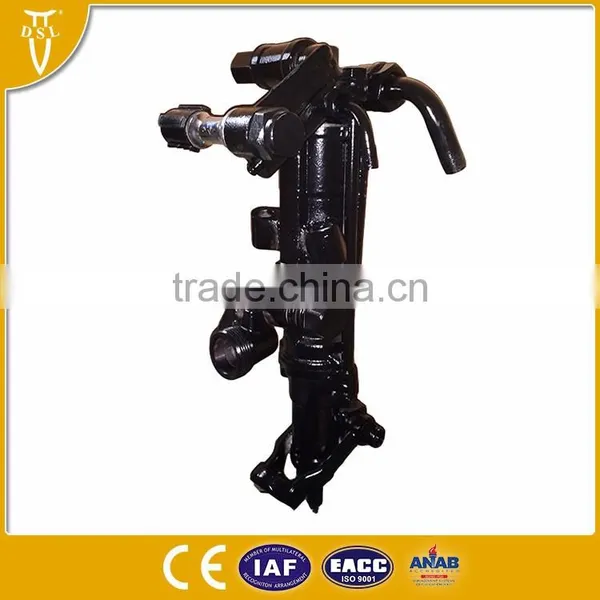

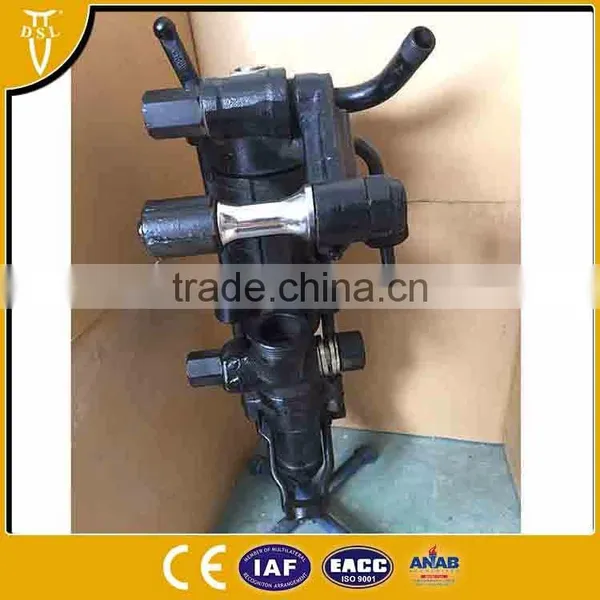

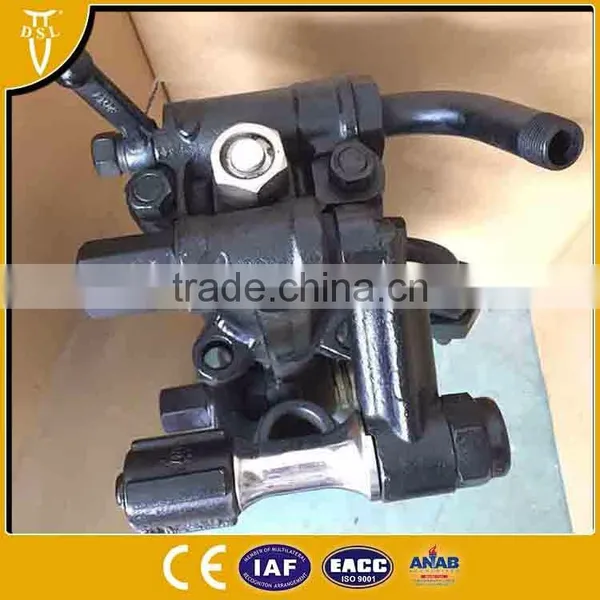

Homemade Patent S250 Jackleg Rock Drill
US$ 90 - 500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Other, Pneumatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou or Other ports in China(mainland)
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Yt24 Standard Toko Pneumatic Jackhammers Yt24US$ 90 - 500MOQ: 1 Set -
Yt27 Hand Held Pneumatic Hammer Drill For Mining Tunnel Quarry Rock Drilling UseUS$ 90 - 500MOQ: 1 Set
-
Air Compressor Jack Leg Rock Drill YT29AUS$ 90 - 500MOQ: 1 Set
-
YT29A Jack Leg Rock DrillUS$ 90 - 500MOQ: 1 Set
-
YT27 Rock Drill Jack HammerUS$ 90 - 500MOQ: 1 Set
Condition
New
Type
Rotary Drilling Rig
Power Type
Other, Pneumatic
Place of Origin
Fujian, China
Brand Name
DSL
Model Number
S250
Usage
Coal
Voltage
Pneumatic Engine Driven
Power(W)
None
Dimension(L*W*H)
Bore 79.4MM
Weight
39KG
Certification
ISO CE
Warranty
None
After-sales Service Provided
No overseas service provided
homemade patent homemade patent S250 jackleg rock drill
Product Description
All figures provided have been based on field experience, and may be reasonably expected.The actual drilling capacity will depend on drilling techniques, equipment used andconditions.
| Bore | 79.4 mm |
| Stroke | 73.25 mm |
| Weight (c/w leg) | 39/ kg |
| Blows/Minute | 2200 @ 6.2 bar |
| Air Consumption | 4.4 m3/ min |
| Air Connection | 1 in BSP |
| Water Connection | 1/2 in BSP |
| Leg Thrust | 244 kg @ 6.2 bar |
| Leg Extension - Standard | 762 mm |
| Supply Hose ID | |
| Air | 25mm |
| Water | 12mm |
| Steel Size (Hex)-Chuck End | |
| Standard | 42.2 kg |
| Unmuffled | 41.3kg |
| Noise Emissions | |
| Muffled: Noise Pressure | 113.5 dB(A) |
| Unmuffled:Noise Pressure | 116.0 dB(A) Power 129.0 dB(A) |
