Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > YT27 Rock Drill Jack Hammer
US$ 90 - 500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Other, Pneumatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou or Other ports in China(mainland)
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Any Model of Pneumatic Rock Drilling MachineUS$ 90 - 500MOQ: 1 Set -
YT28 Pneumatic Gold Mining EquipmentUS$ 90 - 500MOQ: 1 Set
-
Newest Portable YT29A Cordless Drill for BlastingUS$ 90 - 500MOQ: 1 Set
-
Y26 Rock Drilling MachineUS$ 90 - 500MOQ: 1 Set
-
YT27 Air Leg Rock Drill Manufacturer PriceUS$ 90 - 500MOQ: 1 Set
Condition
New
Type
Rotary Drilling Rig
Power Type
Other, Pneumatic
Place of Origin
Fujian, China
Brand Name
DSL
Model Number
YT27
Usage
Coal
Voltage
Pneumatic Engine Driven
Power(W)
None
Dimension(L*W*H)
668*248*202MM
Weight
27KG
Certification
ISO CE
Warranty
None
After-sales Service Provided
No overseas service provided

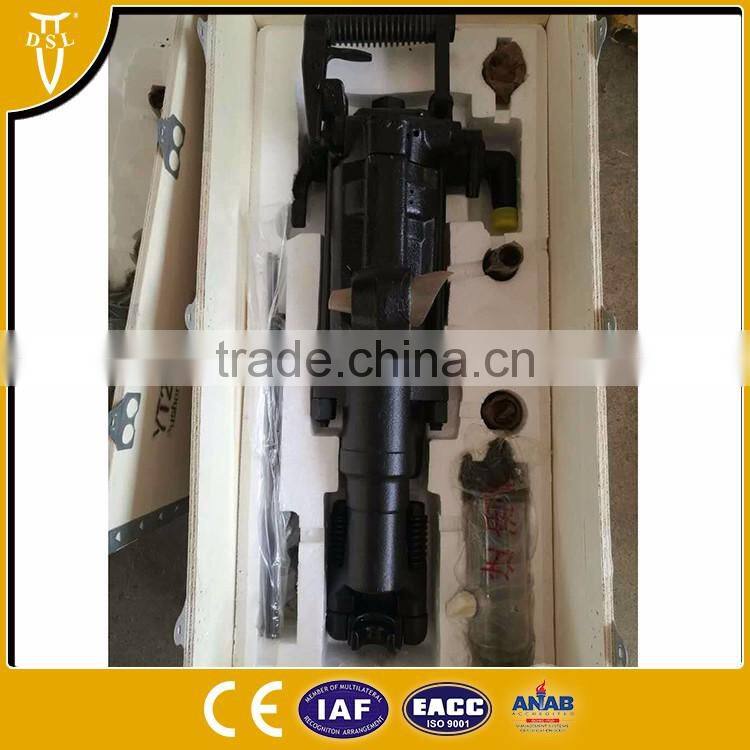

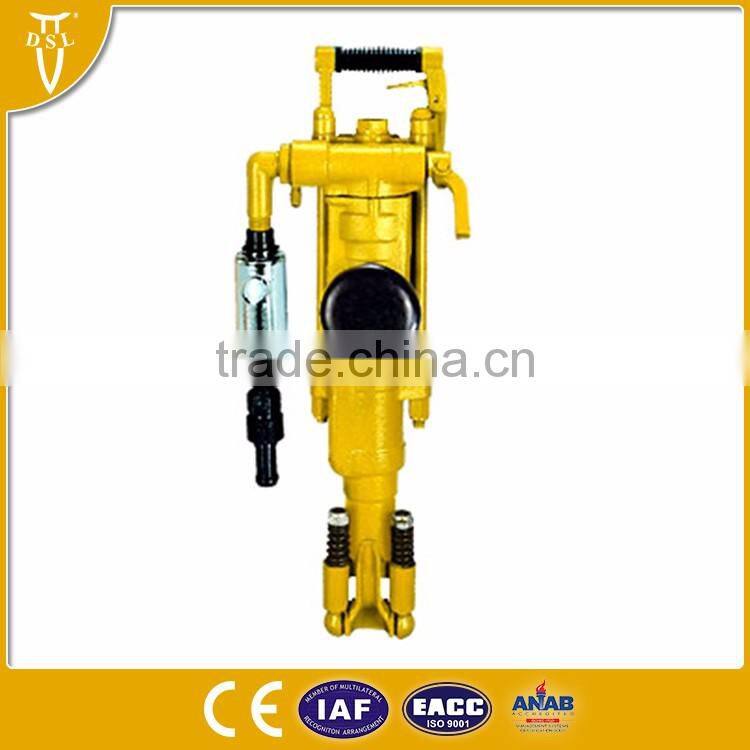

YT27 rock drill jack hammer
Product Description
The rock drill is a kind of high efficiency air leg rock drill machine.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and national defence project facility.
When it is matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air-leg , it is suitable for wet drilling under various of rocks at aclinic and incline orientation,it can also use in the trolley without Air-leg.
| Weight | 27 | KG |
| Outside dimension(L×W×H) | 668*248*202 | MM |
| Cylinder diameter | 80 | MM |
| Piston Stroke | 60 | MM |
| Impact Energy | ≥75.5 | J |
| Impact frequency | ≥36.7(0.63Mpa) ≥39(0.5Mpa) | HZ |
| Air consumption | ≤83.3(0.63Mpa) ≤57(0.5Mpa) | L/S |
| Working Pressure | 0.5-0.63 | Mpa |
| working water pressure | 0.3 | Mpa |
| Air pipe inner diameter | 25 | MM |
| Water pipe inner diameter | 13 | MM |
| Rock drill hole diameter | 34-45 | MM |
| Max Drilling Depth | 5 | M |
| Shank Size | 22*108 | MM |
| FY250A Oil Lubricator | ||
| Weight | 1.2 | ML |
| Oil Reserve | 0.25 | KG |

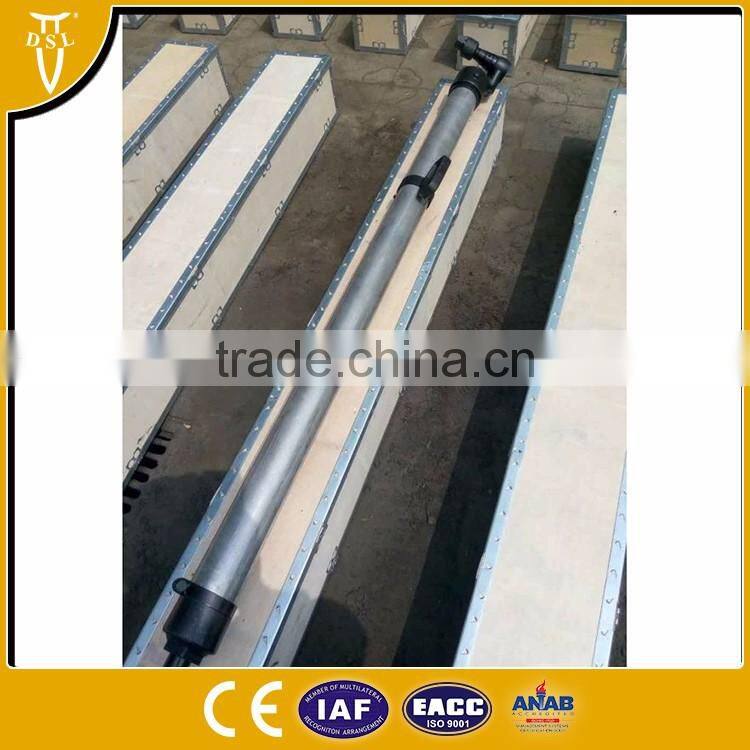

| FT160A Air Leg | ||
| Length | 1668 | KG |
| Advance Length | 1338 | MM |
| Cylinder diameter | 65 | MM |
| Weight | 17 | MM |
