YT29A Jack leg rock drill
- 1000 Set / Sets per Month
- Fuzhou or Other ports in China(mainland)
- T/T
You May Like
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Other, Pneumatic | Place of Origin | Fujian, China | |
| Brand Name | DSL | Model Number | YT29A | |
| Usage | Coal | Voltage | Pneumatic Engine Driven | |
| Power(W) | None | Dimension(L*W*H) | 659*248*205MM | |
| Weight | 27KG | Certification | ISO CE | |
| Warranty | None | After-sales Service Provided | No overseas service provided |
Product Description
YT29A Jack leg rock drill
YT29A is a heavy air leg rock drill .It is high efficient and low consumption.It’s widely used in railway,highway,hydropower construction and so on. It’s also the ideal substitute of the machines used in all kinds of drilling operations.
This drilling machine is suitable for working with the hard and solid rock to do the drilling level , inclined hole or the up drilling. The drilling diameter is commonly between 34 and 45 mm.The depth of drilling is 5m.According to the size of tunnel fracture surface and the operating condition ,it could be matched with the air leg,FT160A ,FT160C ,FT160 and FT170.To do the dry or wet drilling with the drill carriage and drilling rig is also feasible for YT29A .
The YT29A rock drill is the most strongest, powerful and highly efficient rock drill in the range.It gives improved productivity and drill steel economs and can be used on all rock formation and in all kinds of applications.
| Weight | 27 | KG |
| Outside dimensions(L×W×H) | 659*248*205 | MM |
| Cylinder diameter | 82 | MM |
| Piston Stroke | 60 | MM |
| Working Pressure | 0.40~0.63 | Mpa |
| Impact Energy | ≥78(0.63Mpa) ≥69(0.5Mpa) ≥50(0.4Mpa) | J |
| Air Consumption | ≤88(0.63Mpa) ≤65(0.5Mpa) ≤52(0.4Mpa) | L/S |
| Impact Frequency | ≥39(0.63Mpa) ≥37(0.5Mpa) ≥36(0.4Mpa) | HZ |
| Torque | ≥20(0.63Mpa) ≥17(0.5Mpa) ≥15(0.4Mpa) | N.M |
| Rotated speed | 300(0.5Mpa) | R/Min |
| Working Water Pressure | 0.3 | Mpa |
| Air pipe inner diameter | 25 | MM |
| Water pipe inner diameter | 13 | MM |
| Rock drill hole diameter | 34~45 | MM |
| Max drilling depth | 5 | M |
| Working temperature | -30~45 | ℃ |
| Shank Size | H22*108 | MM |
| FY250 Oil Lubricator | ||
| Weight | 1.2 | KG |
| Oil Reserve | 0.25 | ML |

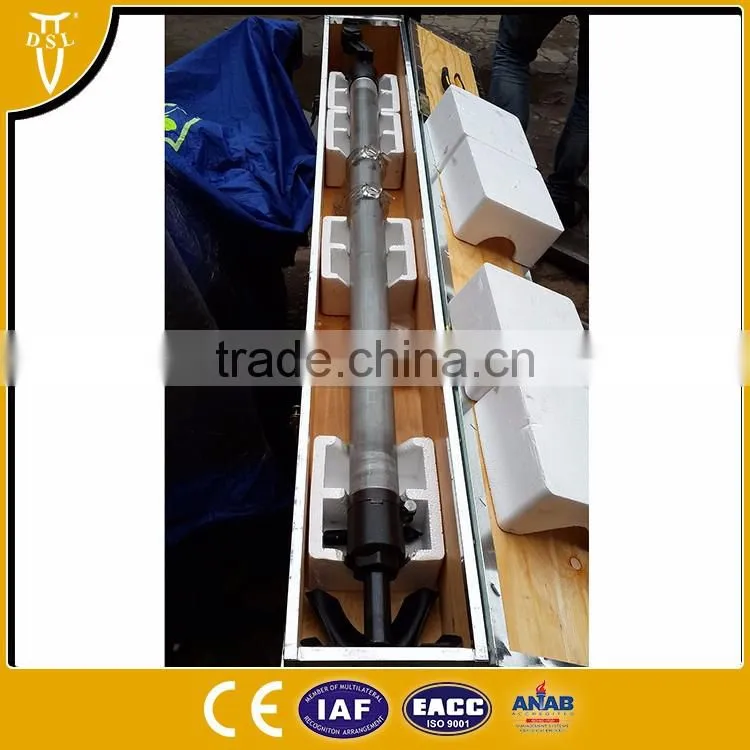

| FT160A Air Leg | ||
| Length | 1668 | MM |
| Advance Length | 1338 | MM |
| Cylinder diameter | 65 | MM |
| Weight | 17 | KG |
