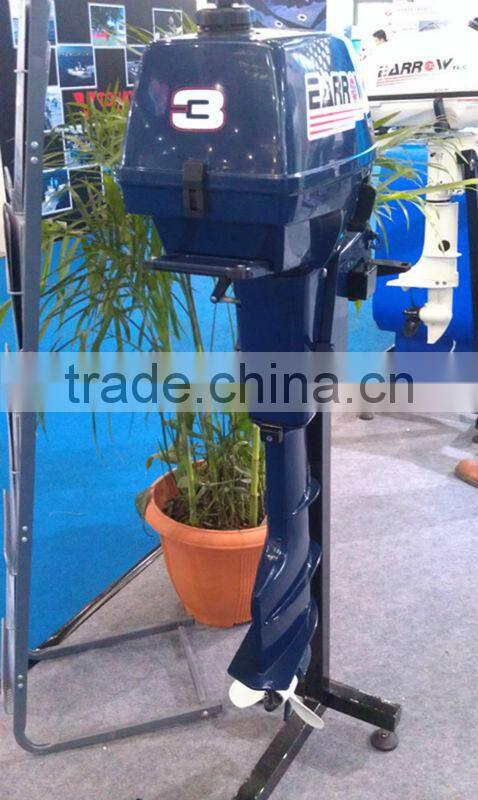

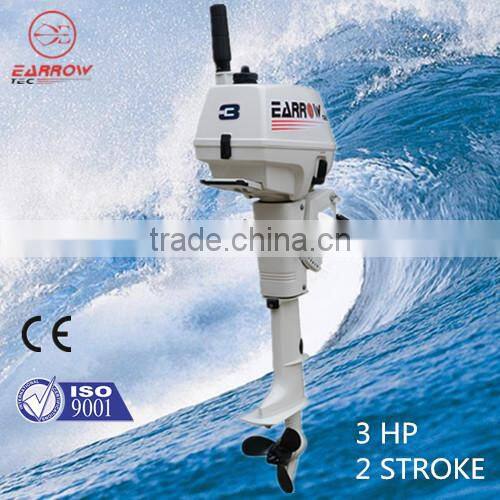

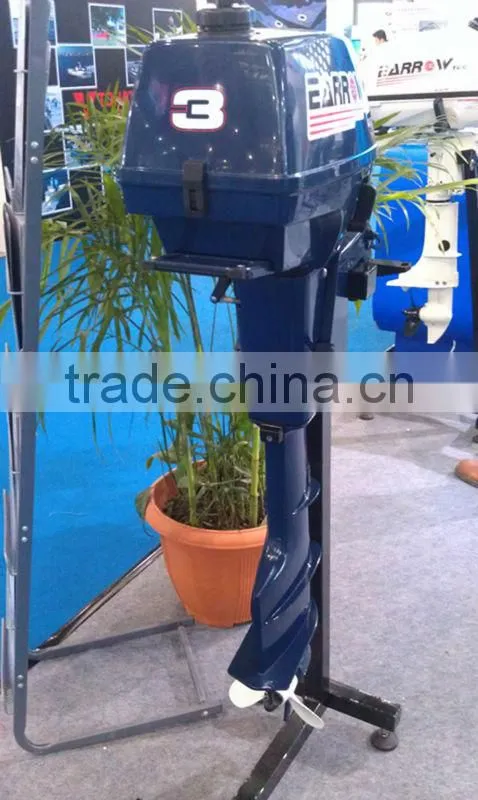

Product: motor canoe
Type:2-stroke, 3hp
Specification
| Outboard Motor Model | 3A |
| Net Weight | S:16.5Kg ; L: 17kg |
| Full Throttle Operating Range | 4500-5500 r/m |
| Maximum Output | 2.2kw/3hp |
| Idling Speed | 1200±50r/m |
| Type | Two Stroke |
| Displacement | 70cc |
| Bore*Stroke | 46*42mm |
| Ignition System | CDI |
| Spark Plug | NGK BR7HS-10 |
| Spark Plug Gap | 0.9-1.0mm |
| Control System | Tiller Handle |
| Starting System | Manual |
| Starting Carburation System | Choke Valve |
| Gear Position | Forward-Neutral |
| Gear Ratio | 2.08 (27:13) |
| Trim and Tilt System | Manual Tilt |
| Recommended Fuel | Unleaded Gasoline |
| Gear Oil | 0.075L |
| Fuel Tank Capacity | 1.4L |
Certification
CE/SGS/ISO 9001
Advantages
1,Most die casting parts and plastic parts are made by our own factory, assure the quality control
2,We have a special surface pretreatment production line, passivated surface made the parts & engine more durable, anti corrosion;
3,Our main engineers used to work in previous BRP Chinese subsidiary plant, we learn from BRP technology, our outboards are more quiet;
4, Color of top cover are one-step moulding technology instead of painting, more flexible and more corrosion resisting;
5, Besides the gasoline outboards, we can also supply propane outboards;
6, Different color available: Pearl white, Dark grey, Jewelry blue
7,95% spare parts are compatable with Yamaha Spare parts, easy for maintenance
8, Our 4 stroke 6HP four stroke is one cylinder; 15HP 2 stroke is Yamaha Enduro type, which is more powerful
Product Series
We have both 4 and 2 stroke series, 4 stroke propane engines
OEM service
2% free spare parts
Warranty:2 years
Package
Standard export package, white PP form plus carton box;
Logistic
The forwarder could be choose by you, we could provide some information of forwarders if you need.
Port of Load
Ningbo, our factory is located in Ningbo Zhejiang China, Very convenient for delivery.
Details
1. production time: 20 workdays after payment and receive 30% deposit
2. CE standard, FOB Ningbo
3. MOQ: 2 units for sample
4. Delivery time: sample 2-3 days, volume order 20 days
5. Payment: T/T or L/C
We are Chinese professional outboard motor manufacturer. All our outboards are CE approval and our factory is ISO9001 qualified.
Our product range is from 2.5hp to 30hp,both two and four stroke are available.
Philosophy
Quality First, User-oriented Management, Dedication to customer services
R & D Team
OEM service available;
All of our key engineers came from the previous BRP outboard factory of China DG, with more than 10years' experience.
Customer visit
Shanghai China International Boat Show 2014
Miami Boat Show 2013
